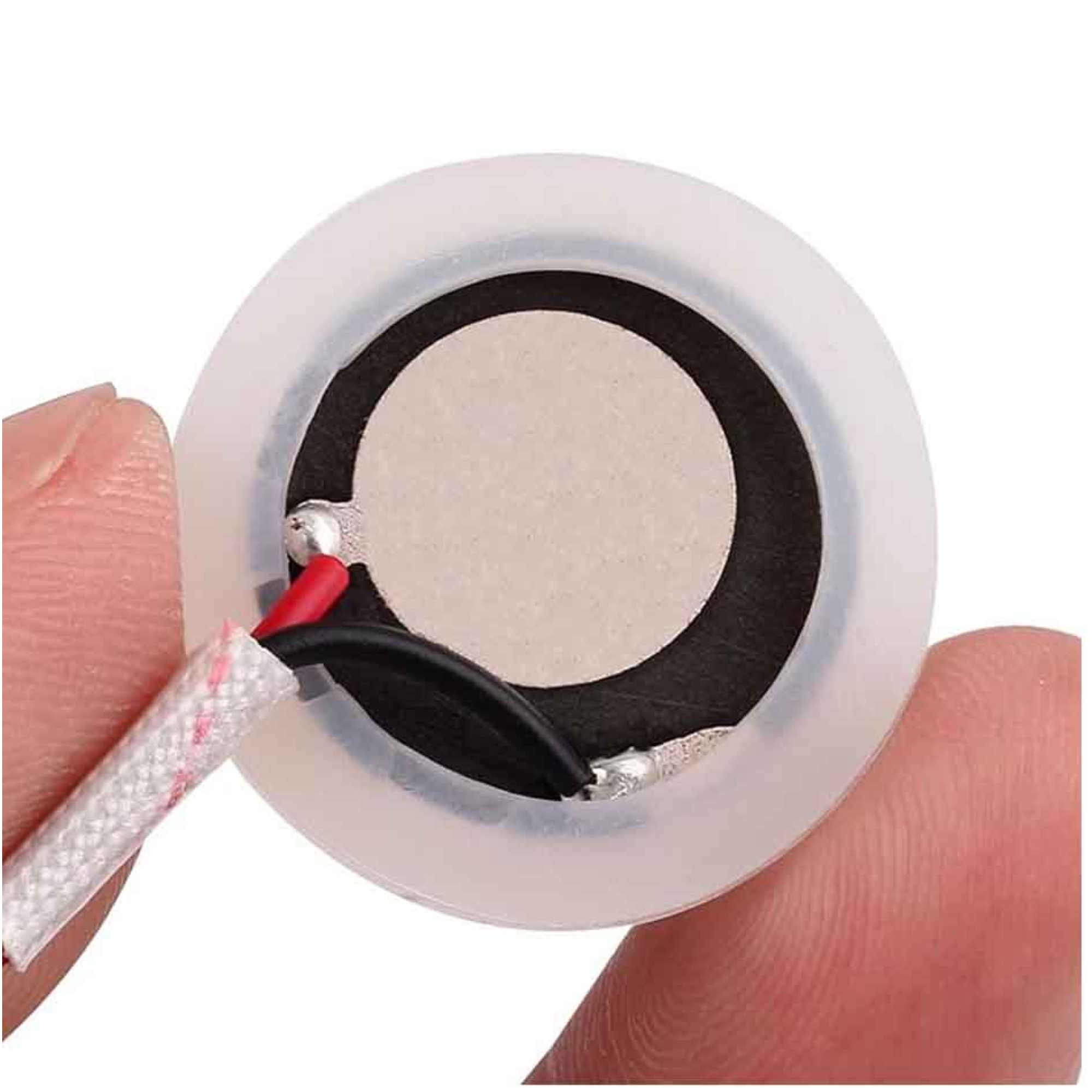

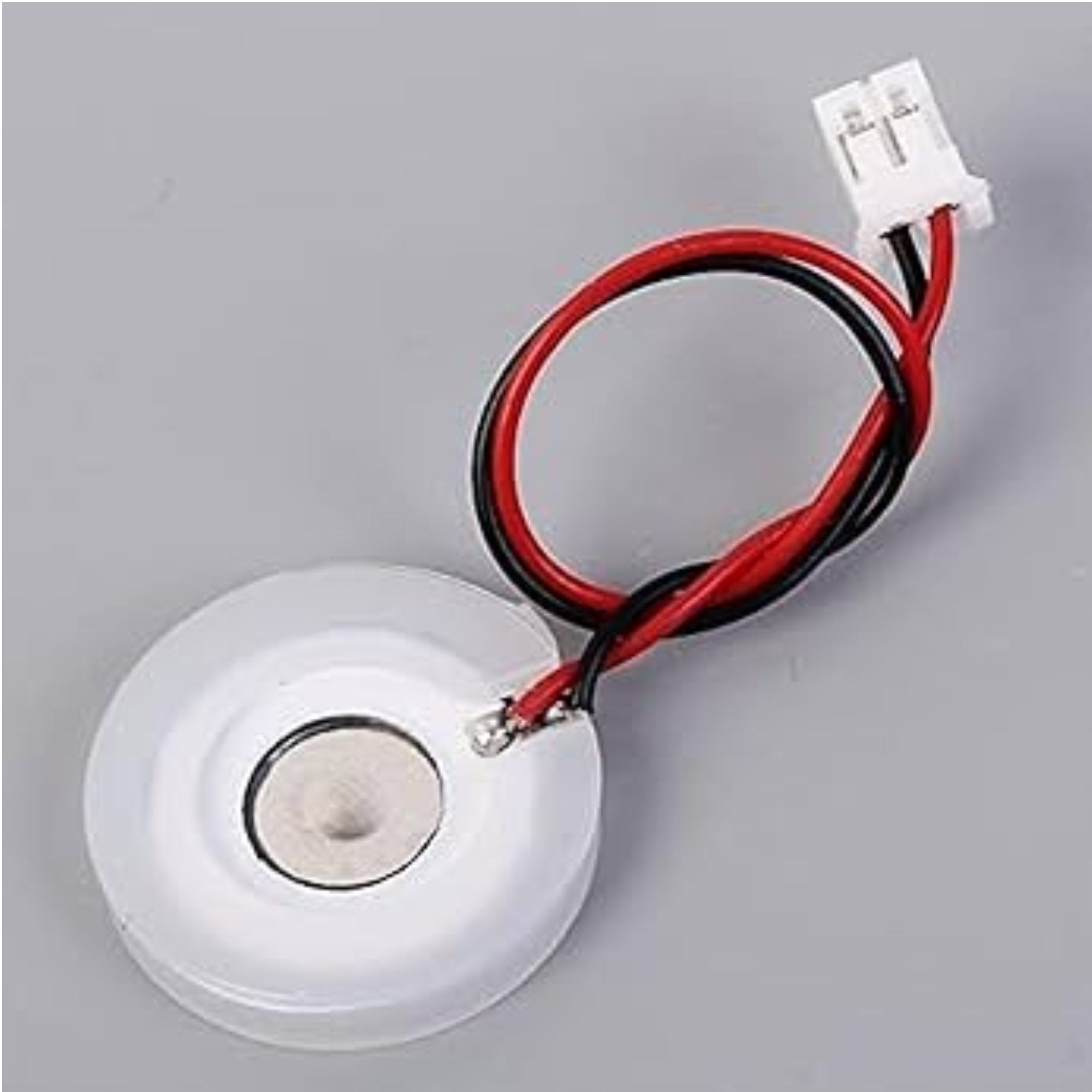

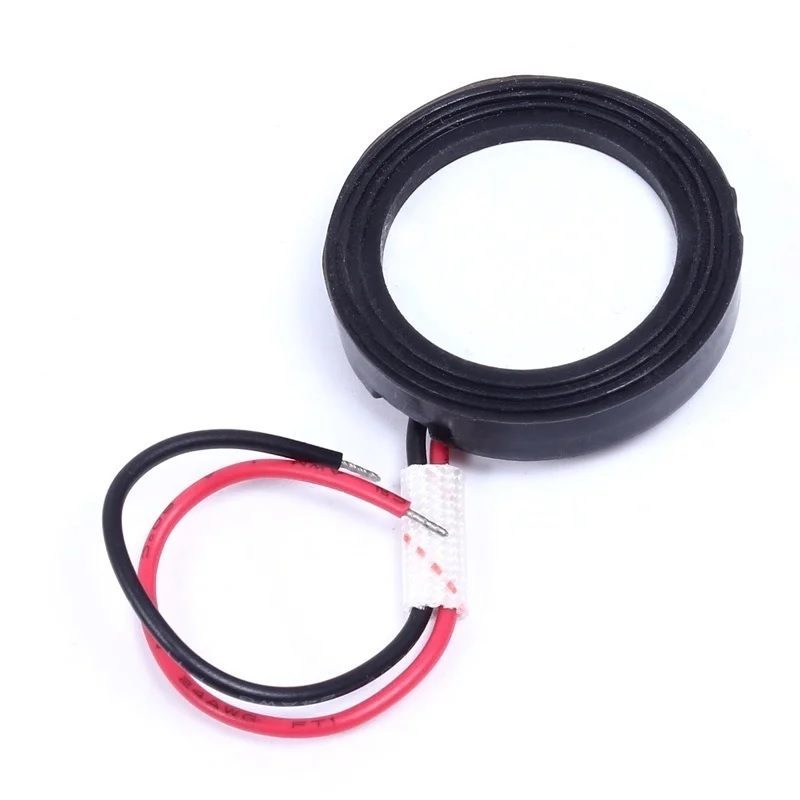

20mm 1.7mhz piezoelectric humidifier energy conversion plate
The 20mm 1.7mhz piezoelectric humidifier energy conversion plate is made of high-quality material, durable, anti-corrosion, anti-aging, and high hardness, great effect, and serve you for a long time.
With electronic high-frequency oscillation ( 1.7MHz), the liquid water molecules are processed into flowing mist and release a large number of negative ions, which react with smoke, dust, and the like floating in the air to cause precipitation.
Features:
- The front surface is plated with titanium. Aging resistant, corrosion resistant, durable.
- Simple operation and long service life.
- This Ceramic Disc is mainly used in the household humidifier.
- Mist Diameter: about 20mm; Resonant frequency:1.70MHz.
Specifications:
- Operating voltage: DC 3.7 ~ 12
- Resonant Frequency (MHz): 1.77
- Resonant Impedance: <2
- Coupling factor: >52%
- Electrostatic capacity: 3000 pF
- Spray quantity: > 110 mL/h
Package Includes:
- 1 x 20mm 2.4mhz piezoelectric humidifier, energy conversion plate
