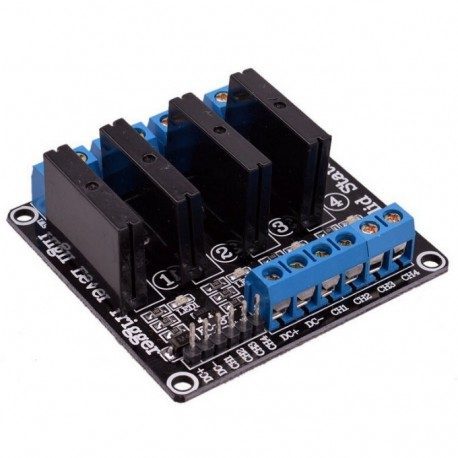

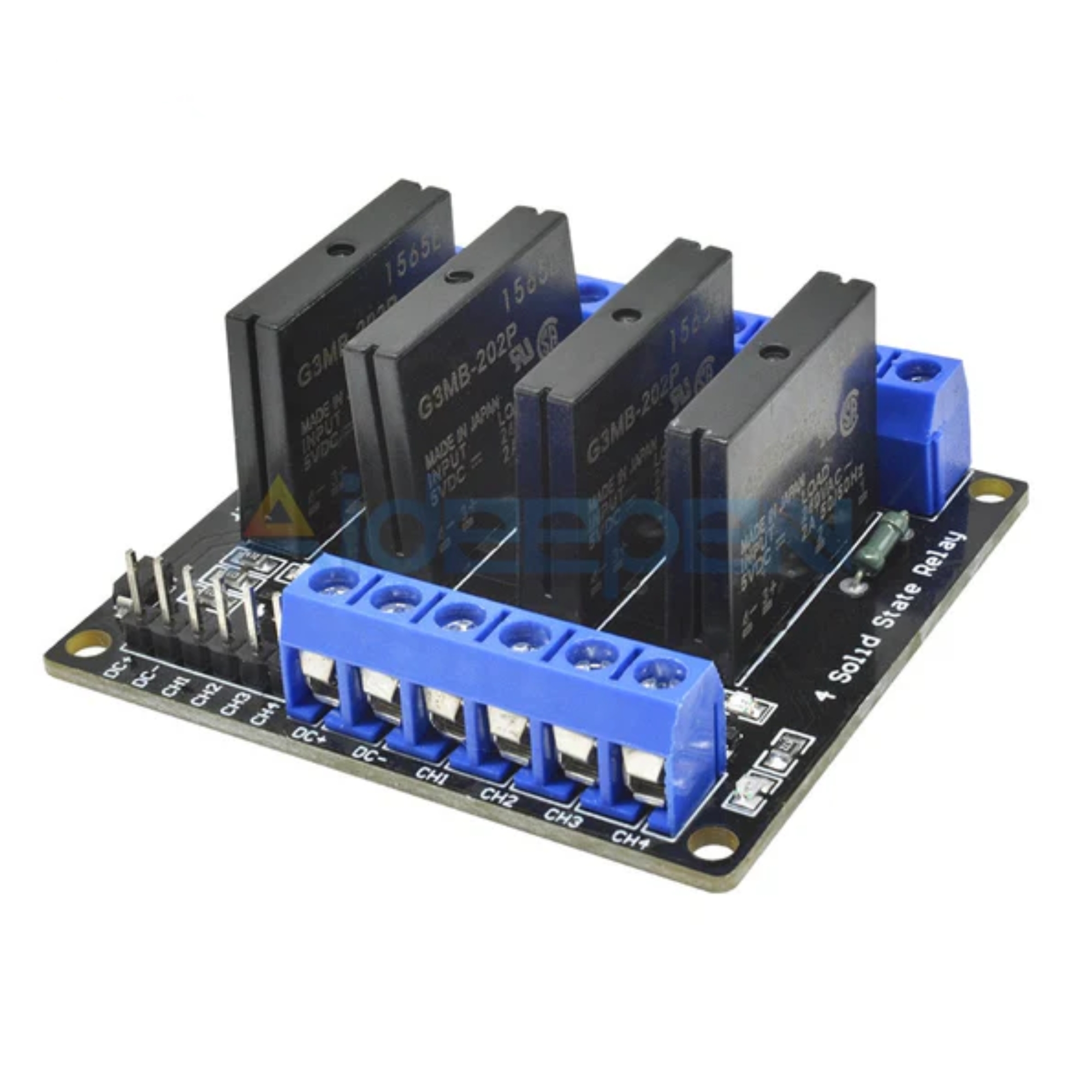

5V 4 Channel SSR Omron G3MB-202P Solid State Relay Module 240V 2A Output with Resistive Fuse

This 5V 4 Channel SSR Omron G3MB-202P Solid State Relay Module 240V 2A Output with Resistive Fuse is based on the Omron G3MB-202P SSR relay which can control up to 2A at 240VAC. This is a 4 Channel SSR relay module, each relay channel has 3 separate terminals, NO (Normal Open), COM (Common), NC (Normal Closed).

A solid state relay is similar to a mechanic relay where it can be controlled through a digital signal. Solid State Relay generates no noise and has a much longer lifespan in compared to the traditional mechanic relay. When the input logic voltage is applied to the coil, the NC will disconnect from the COM breaking the conductivity between the two. At the same time, the NO will connect with the COM allowing conductivity between them. Depending on your wiring this will turn on or off the connected load.

Features:

• Has been assembled, and the electrical test passed.
• Led indicator for each relay.
• Use it to control various appliances and other equipment with large current.
• It can be controlled directly by Microcontroller
• Input control signal voltage:
• 0-2.5V status low level, relay OFF
• 3-5V status high level, relay ON

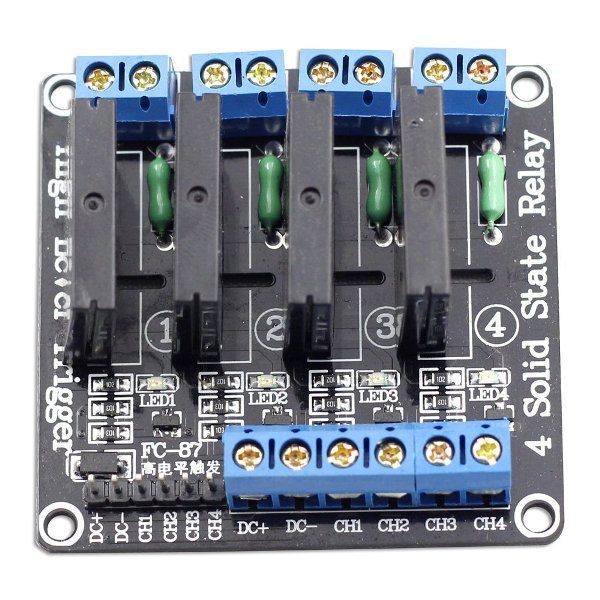

Input Section:

• DC +: positive power supply (by relay voltage power supply)
• DC-: connect power negative
• CH1: 1 relay module signal to trigger the end (high-level trigger effective)
• CH2: 2-channel relay module signal to trigger the end (high-level trigger effective)
• CH3: 3 relay module signal to trigger the end (high-level trigger effective)
• CH4: 4-channel relay module signal to trigger the end (high-level trigger effective)

Specifications:

• Brand: Omron
• Part Number: G3MB-202P
• Voltage(V): 5
• Working current(mA): 12.5
• Trigger voltage(V): 3.3 to 5
• Trigger current(mA): 2
• Max. Load: 2A @240V AC
• Length (mm): 57
• Width (mm): 55
• Height (mm): 25
• Weight (gm): 38

Package Includes :

• 1 x 5V 4 Channel SSR Solid State Relay Module 240V 2A Output with Resistive Fuse
