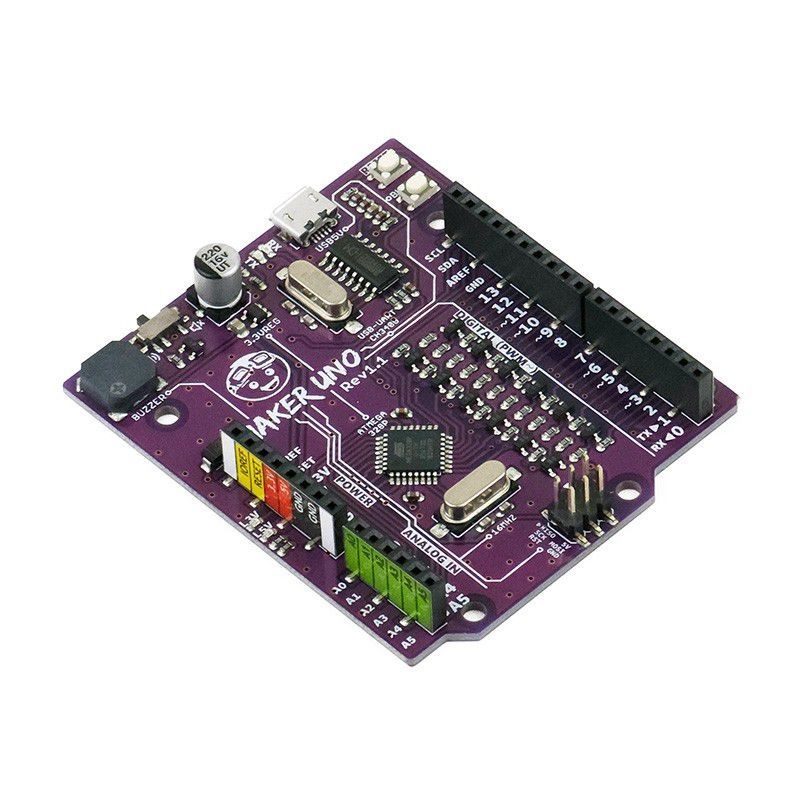

Cytron Maker UNO Microcontroller Board- Arduino UNO Compatible Module

The Cytron Maker UNO Microcontroller Board- Arduino UNO Compatible Module was solely designed for education purpose and eventually, it is most selling microcontroller board to the students and the teachers. It is named as Maker UNO to encourage everyone to be a maker by getting started with this amazing board.

Now you can learn digital input, output, PWM (piezo buzzer and LED brightness) with just the Maker-UNO board. The Maker UNO is an Arduino UNO compatible board designed and developed specially for students to learn coding and microcontroller.

It is Arduino UNO R3?compatible, and by that, Maker-UNO can be programmed via Arduino IDE and compatible with all the example code and libraries for Arduino UNO.

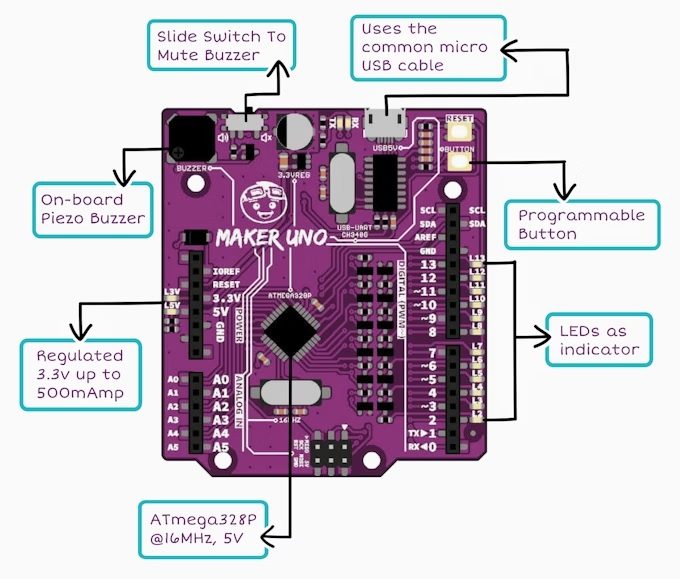

In Cytron Maker UNO Microcontroller Board- Arduino UNO Compatible Module the DC jack (12V adapter input) has been removed and also the 5V linear regulator as 90% of the beginner and projects use 5V from USB only. so the board can be offered at a more affordable price. But don’t get it wrong, Maker-UNO is not removing components, It has been actually design-in more components to help everyone to learn programming, coding, and microcontroller. Added a piezo buzzer that will act as simple audio output, of course, you can program it. Yet, to ensure the compatibility of Arduino UNO, we have also a slide switch to disable this piezo buzzer and leave the IO as it is.

Maker UNO is an Arduino Compatible board specially designed to simplify building your projects:

• Coding & Electronics made easy with built-in:{ 12x LEDs; 1x buzzer; 1x button; }
• Troubleshooting made easy with LED indicators.

Students/Makers can skip the hassle of constructing the basic electronic circuit which is boring and time-consuming. Although it is equally important to learn about basic electronics, it can always come later after they have experienced how easy it is to create an awesome project. Start with fun and excitement. Start coding right away and see your board lights up and plays the melody with the press of a button.

For experienced makers, this is also useful to quickly test your code without having to connect any other devices.

With the conventional Arduino boards, makers also face another common problem – difficulty in troubleshooting their circuit. This is because when it doesn’t work, we do not know whether the problem is due to wire connection or coding. With Maker UNO, the problem is solved! Not only do the onboard LEDs work as outputs, they can also act as indicators, clearly showing what’s happening on that pin. When the pin is used as input, you can clearly see whether the signal is received by just looking at changes on the LEDs.

Features :

• SMD ATmega328P microcontroller(the same microcontroller on Arduino UNO) with Optiboot (UNO) Bootloader
• USB Programming facilitated by the CH340
• Input voltage: USB 5V, from the computer, power bank or standard USB adapter
• Piezo buzzer that will act as simple audio output
• ISP 6-pin Header
• R3 Shield Compatible

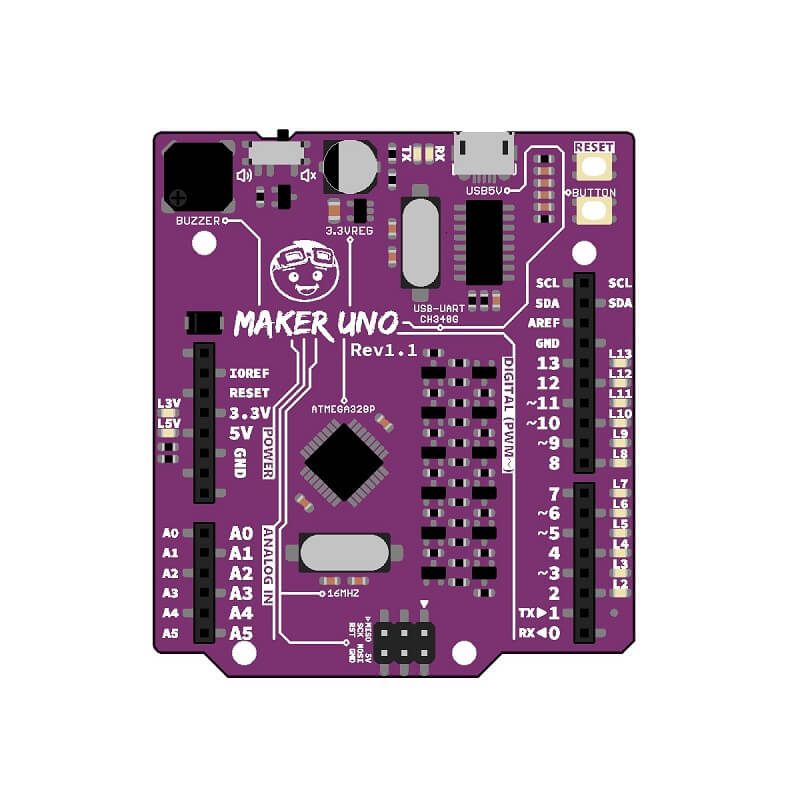

• LED array for 5V, 3.3V, TX, RX, and all digital pins
• Utilize USB Micro-B socket
• Purple PCB!

Specifications:

• Model Type: Maker UNO
• Microcontroller Chip: ATmega328P
• Operating Voltage (VDC): 5
• Input Voltage(Recommended): 5V
• Input Voltage (limit): 5V
• Analog I/O Pins: 6
• Digital I/O Pins: 14
• PWM Digital I/O Pins: 6
• Clock Speed: 16 MHz
• Flash Memory: 32 KB
• SRAM: 2
• EEPROM: 1KB
• Voltage Regulator: 500mA(max) @3.3V
• DC Current for 3.3V Pin (mA): 500
• DC Current per I/O Pin (mA): 20
• Power Supply Option: Micro-B USB
• On Board LEDs: Yes
• Operating Temperature (°C):: -40 to 90
• Dimensions in mm (LxWxH): 70x60x10
• Weight (g): 20

Additional Features

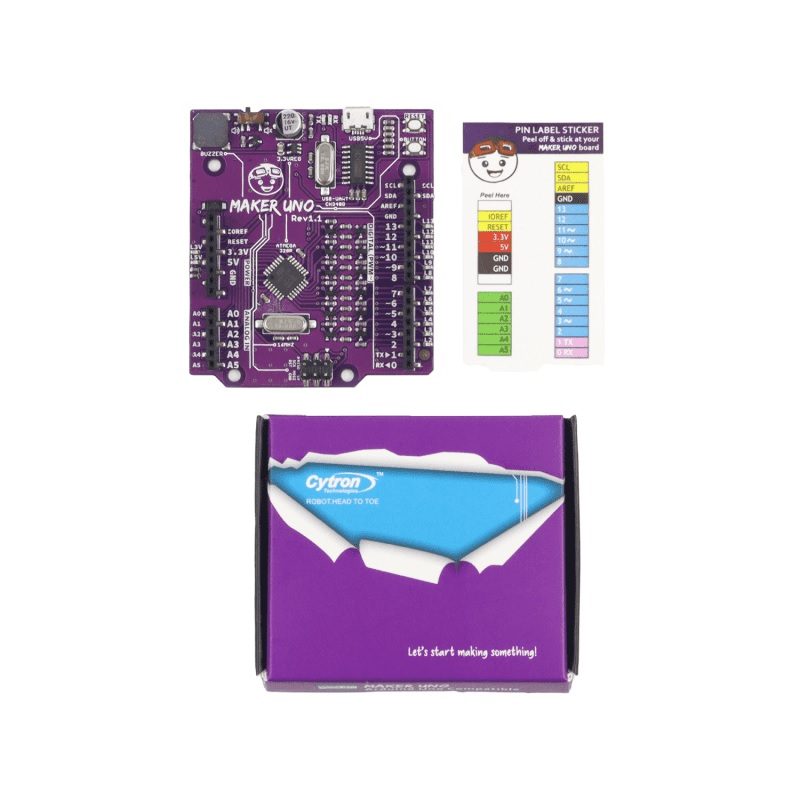

•  One of the brilliant features of the official Arduino Uno is the label printed on its pin headers. It saves us a lot of time when we want to connect the I/O pins to the external circuit. So, we include a set of these label stickers for pin headers in each of the Maker UNO! (Please note that you need to peel off the stickers and stick them on your Maker UNO by yourself)

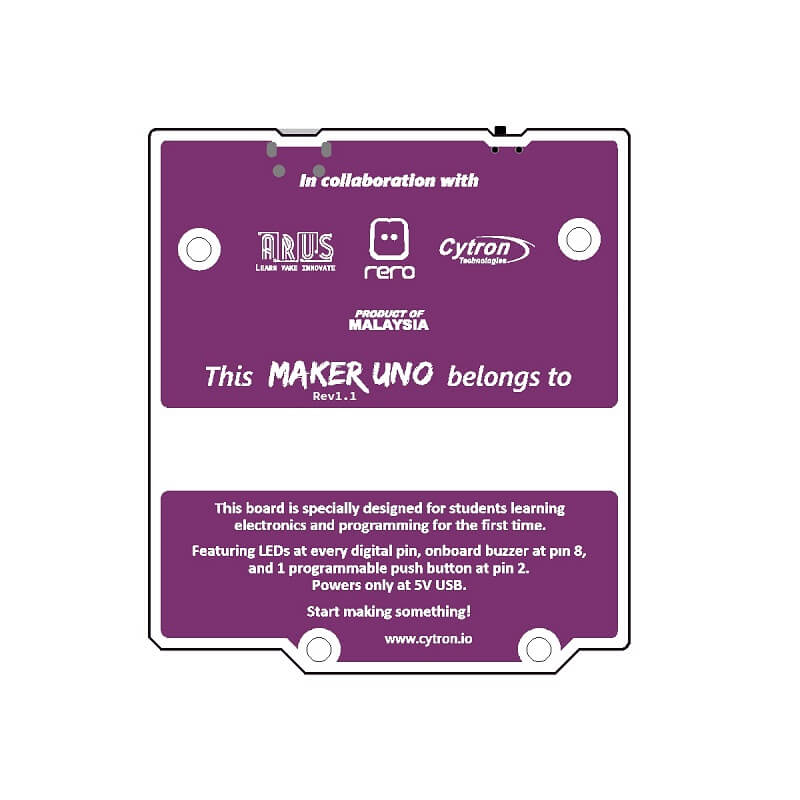

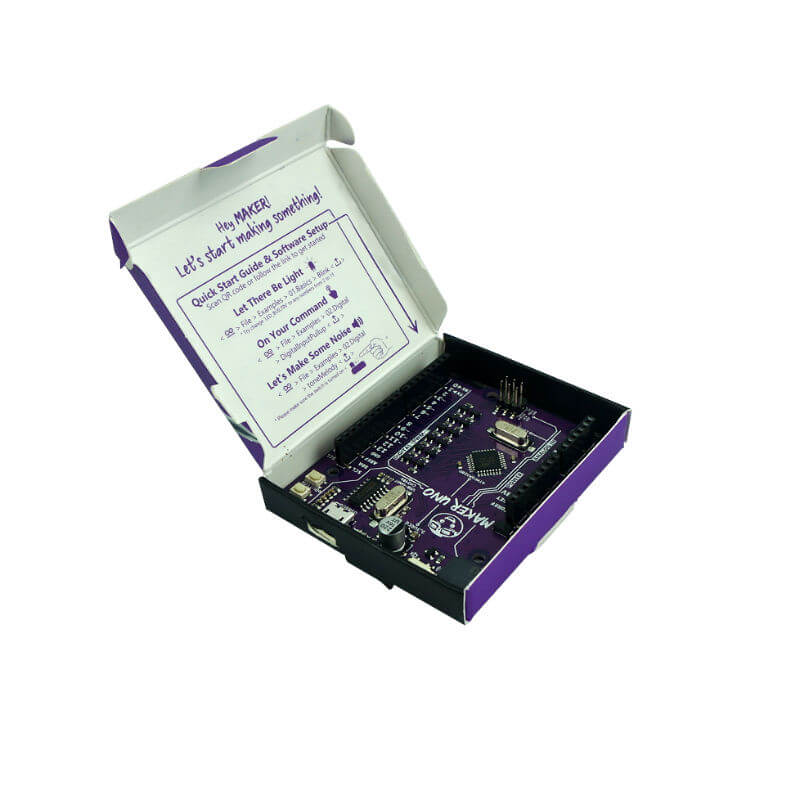

Students always get their boards mixed up. With Maker UNO, you can write your name on the board. Problem solved! Don’t throw your box away! There is a small opening on the box for you to plug the USB cable so that you can keep your Maker UNO safely in the original box, no additional casing required.

Package Includes :

• 1 x Cytron Maker UNO Microcontroller Board- Arduino UNO Compatible Module
