Force Sensitive Resistor 0.5 Inch 14.7mm Pressure Sensor

Flex and Force Sensors

Force Sensitive Resistor 0.5 Inch 14.7mm Pressure Sensor

star star star star star

35 rating

Just for you!

SKU: ANIL1569

MRP: Rs. 352.80

Rs. 294.00 (Incl. Tax)

Rs. 264.60 / pack of 1 = Rs. 264.60 per piece

Quantity

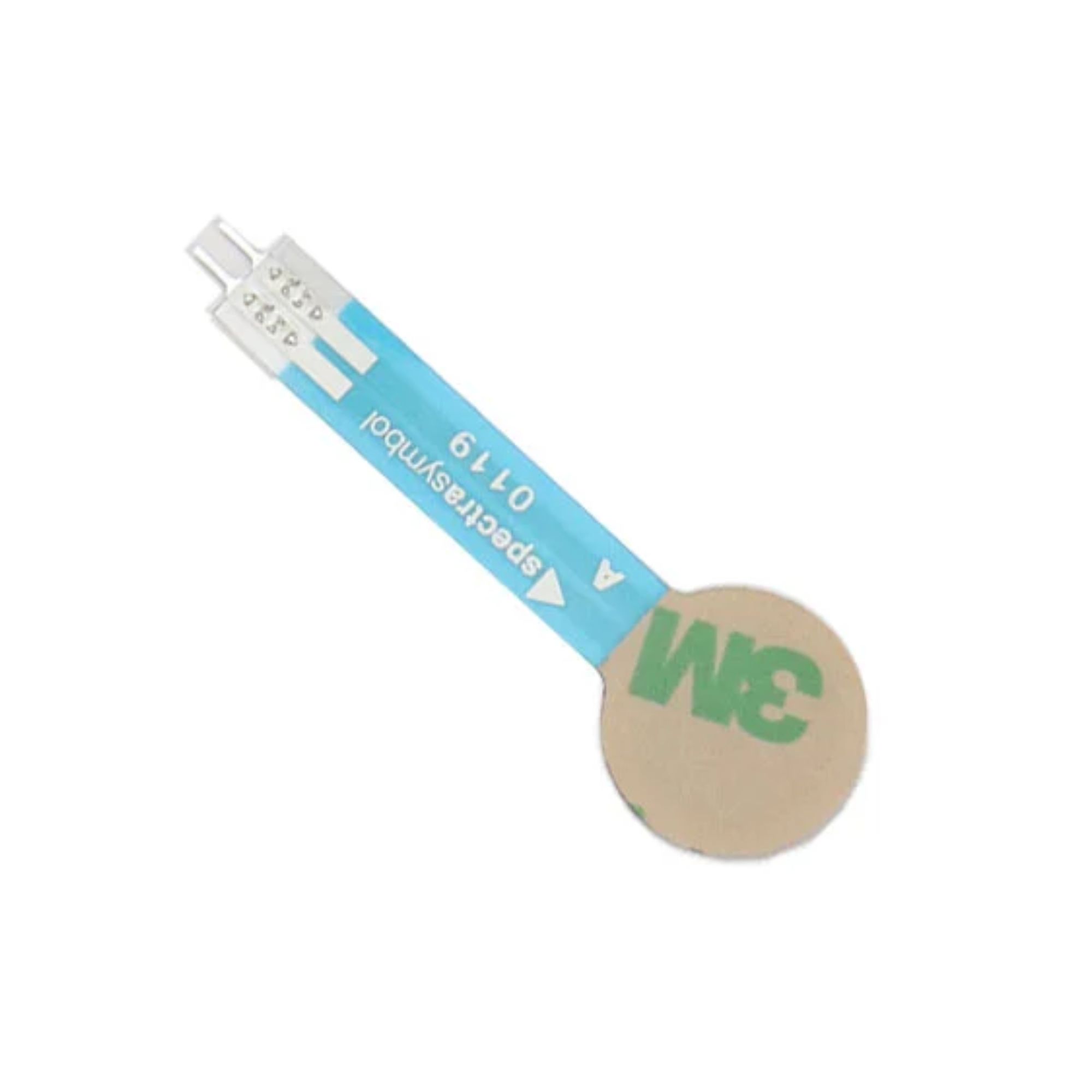

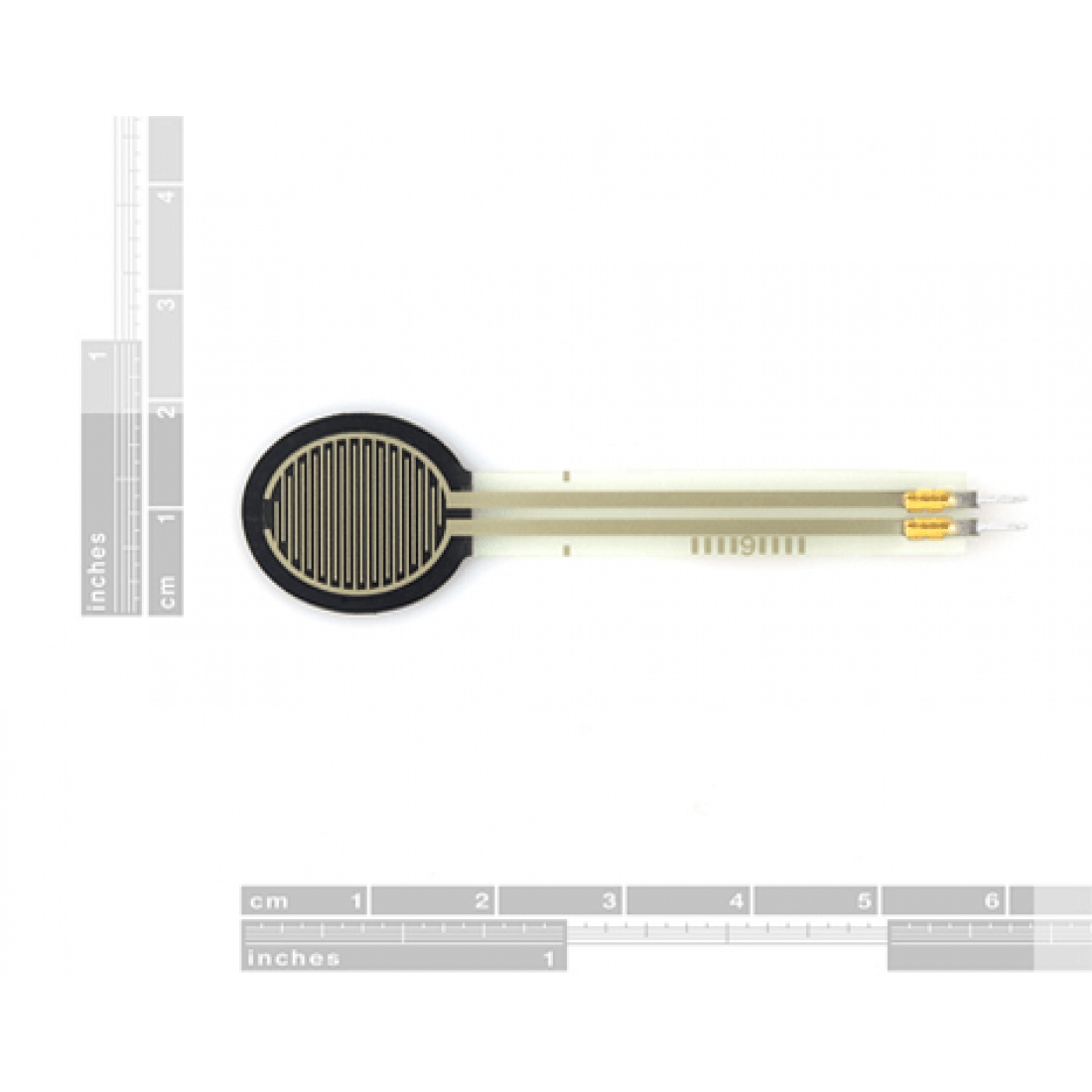

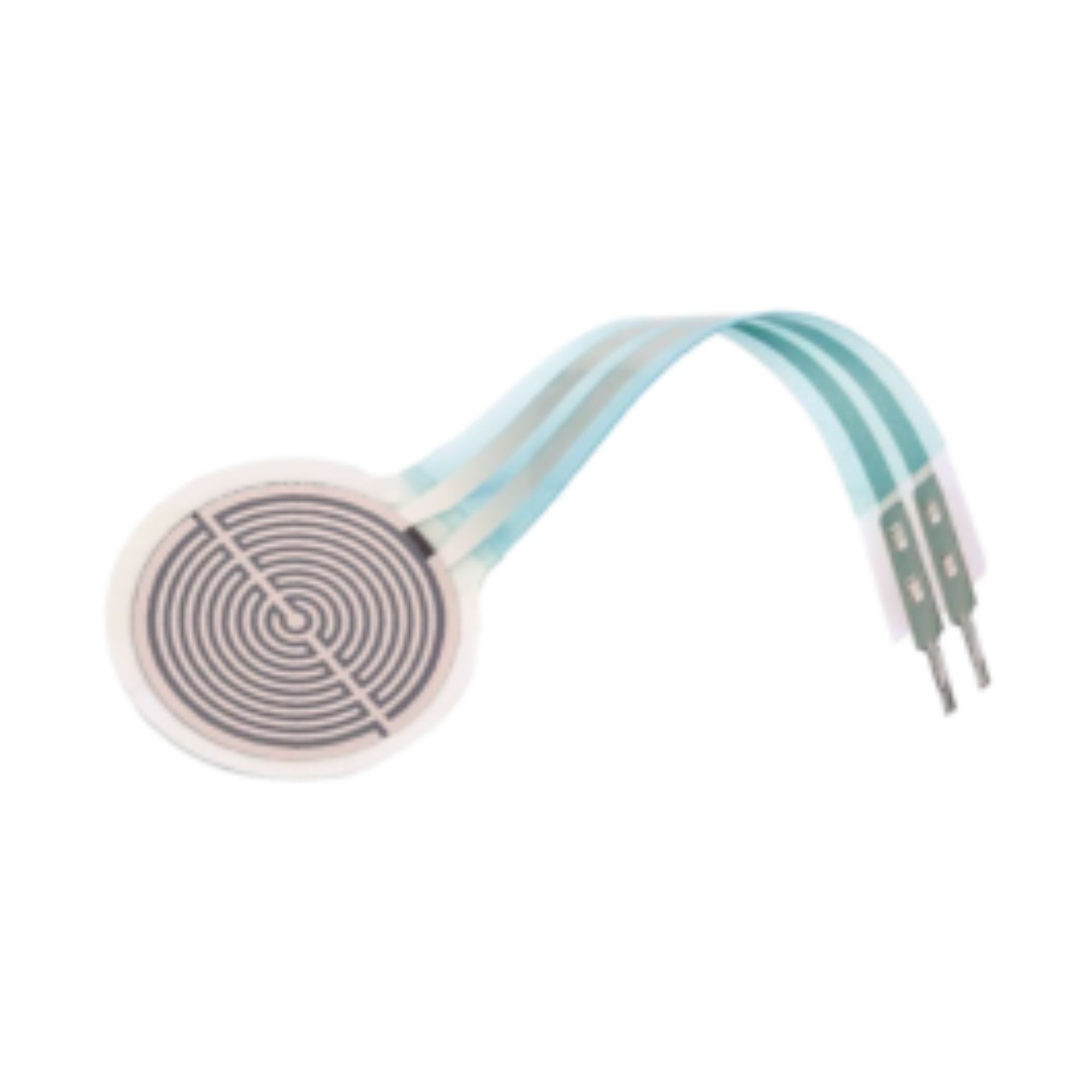

Force Sensitive Resistor 0.5 Inch 14.7mm Pressure Sensor is a force sensitive resistor with a round, 0.5″ diameter, sensing area. This FSR will vary its resistance depending on how much pressure is being applied to the sensing area. The harder the force, the lower the resistance. When no pressure is being applied to the FSR its resistance will be larger than 1MΩ. This FSR can sense applied force anywhere in the range of 100g-10kg.

Two pins extend from the bottom of the sensor with 0.1″ pitch making it bread friendly. There is a peel-and-stick rubber backing on the other side of the sensing area to mount the FSR. Just Connect a resistor to form a voltage divider and measure the voltage at the junction to find the force applied.

These sensors are simple to set up and great for sensing pressure, but they aren’t incredibly accurate. Use them to sense if it’s being squeezed, but you may not want to use it as a scale. This sensor can be easily interfaced with Micro-controllers, Arduino Boards, Raspberry Pi, etc. using an Analog to Digital Converter (ADC).

Note: The color of the product may vary. You may get any color while shipping.

Features:

Easily customizable to a wide range of sizes
Cost-effective
Ultra-thin: 0.45 mm
Robust: up to 10 million actuations
Simple and easy to Integrate

Specifications

Shape: Circular
Sensing Area diameter (mm): 14
Min Pressure: 100 gm
Max Pressure: 10 Kg
Stand-Off Resistance: > 1MOhm
Life Time: > 10 million actuations
Diameter (mm): 18
Length (mm): 60
Weight (gm): 2

Applications:

Testing and Measurement Equipment.
Embedded Electronics.
OEM Development Kit.
Consumer Electronics.
Multimeter.

Package Includes:

1 x Force Sensor Resistor 0.5″ 14.7mm – Pressure Sensor.

rate_review

No reviews yet. Be the first to review this product!

People Also Bought

Force Sensitive Resistor 0.5 Inch 14.7mm Pressure Sensor

₹294.00

add

BMP180 Digital Barometric Sensor Module compatible with Arduino

₹45.00

add

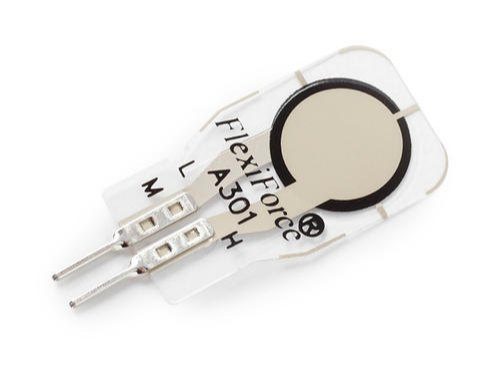

FlexiForce A301-100 lbs Force Sensor
