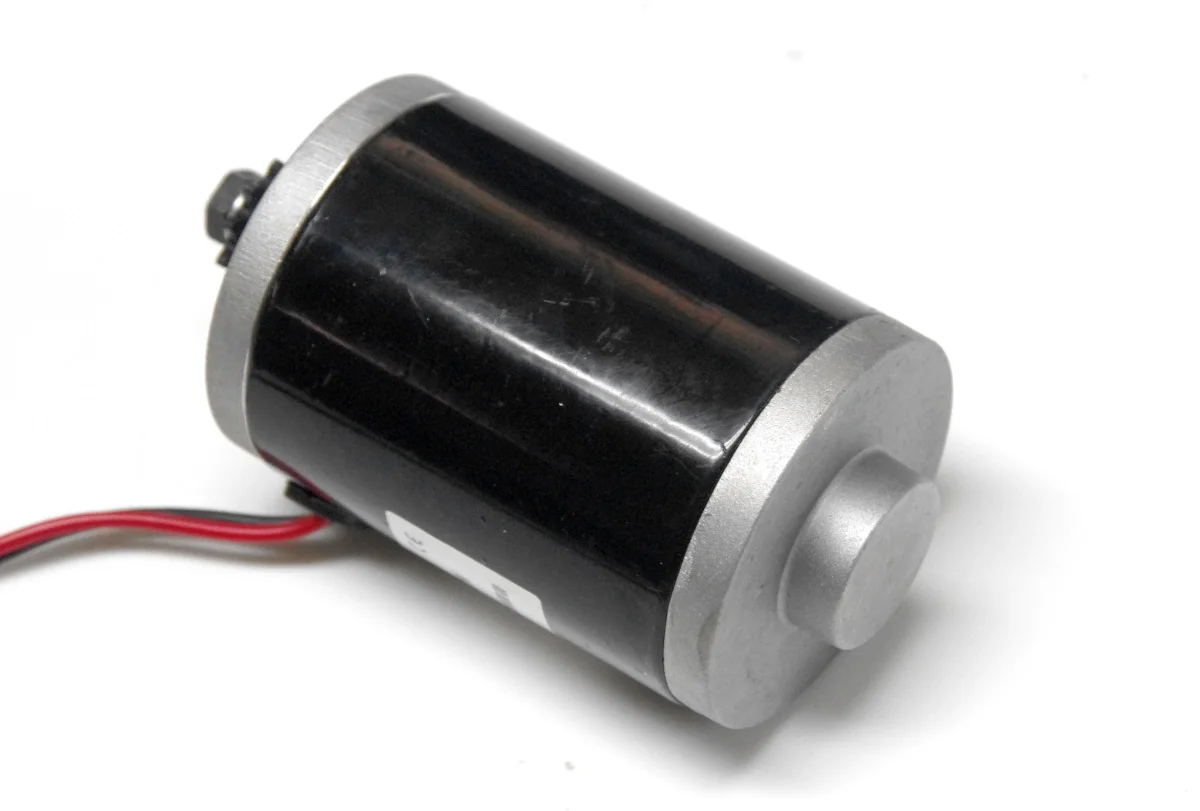

MY6812 150W 24V 2750RPM DC Motor for EBike Bicycle
memory Technical Parameters & Datasheet Summary
SKU: ANIL1053MY6812 150W 24V 2750RPM DC Motor for EBike Bicycle is a motor popular as a scooter motor or general application motor. Extremely durable and reliable. Commonly found in 24V scooters or even small kiddies carts and It’s also been a proven motor in robotics!
100% Ball Bearing construction! The belt drive has the belt sprocket fitted to an 8mm d-cut shaft, that is held together with a circlip and some type of filler glue to stop any movement of the sprocket onto the shaft. The way we remove these is to brace the back of the shaft on the motor and tap the top sprocket to break the beading of the glue, then use two screwdrivers or similar to remove the sprocket. never attempt the brace the motor on the bearings!
It is also possible to brace underneath the sprocket and tap the shaft to push the pulley off that way.
Specifications:
- Model:MY6812
- Operating Power:150 W
- Operating Voltage:24 V
- Rated Current(A):14.3
- No-Load Current:1 A
- Rated Speed(RPM):2750
- Loaded RPM:2600-3000
- Rated Torque:0.56 N-m

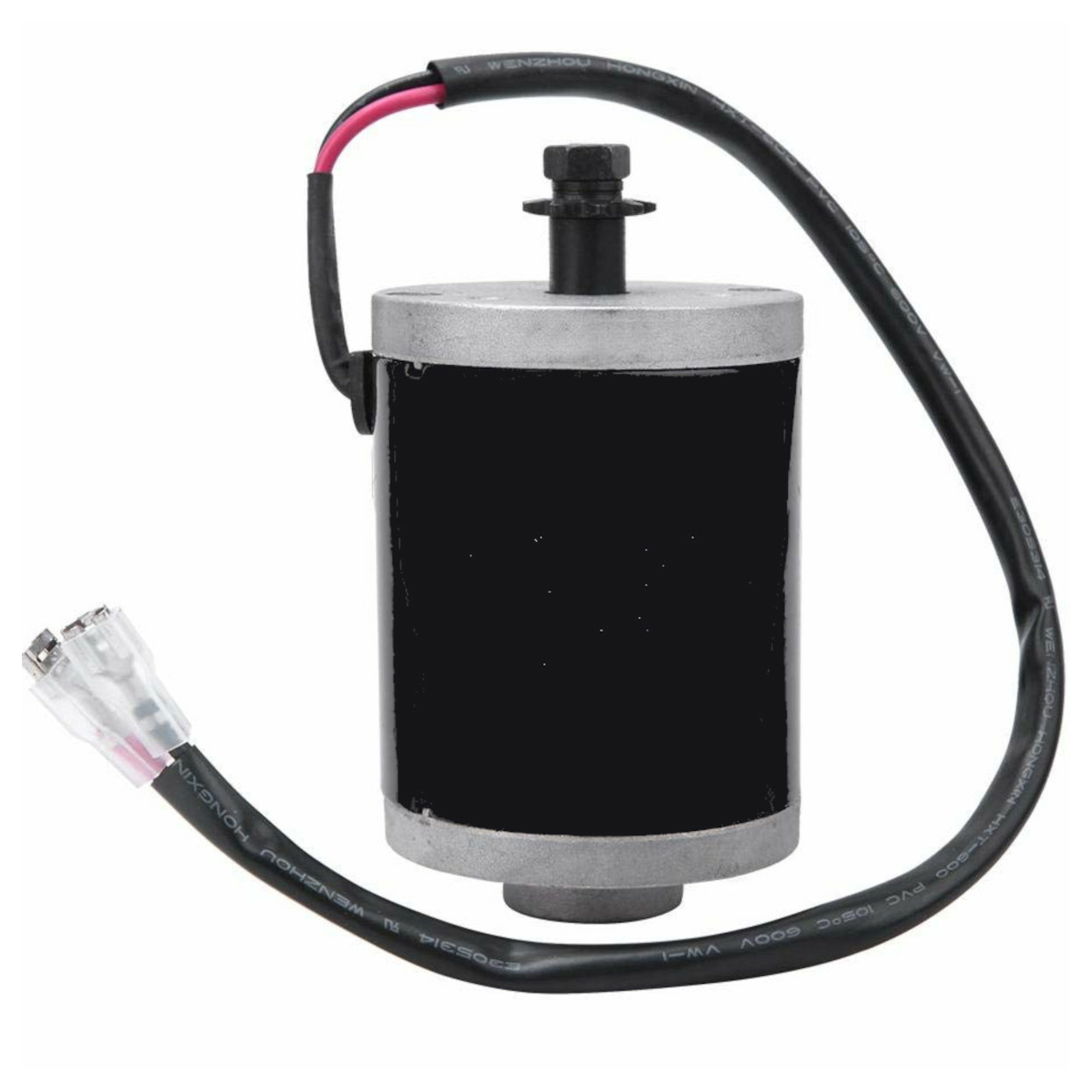

- Length of Cable:50 cm

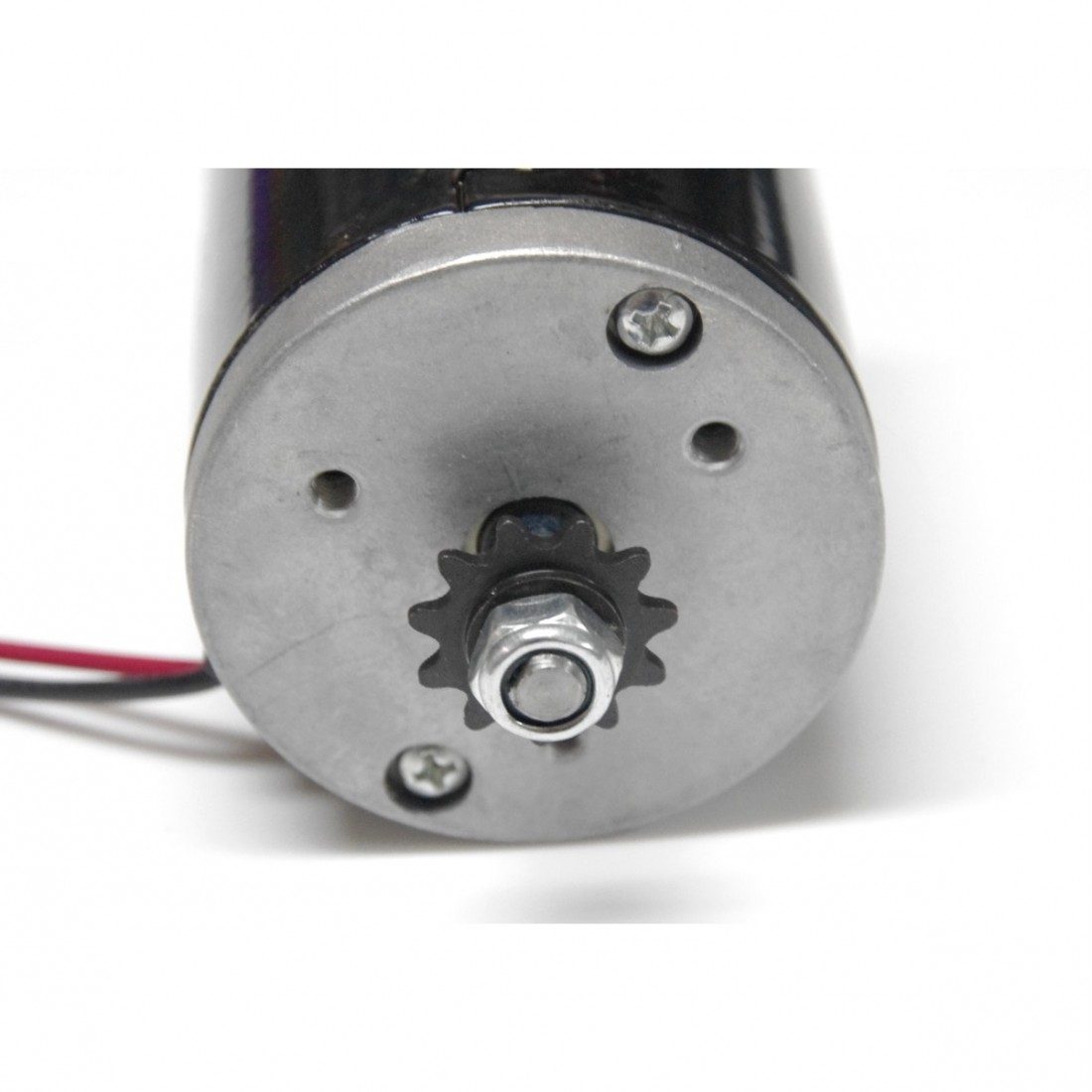

- Sprocket:9 tooth, #25 bicycle chain
- Efficiency:0.72
- Weight (Kg):1.4
Package Includes:
- 1 x MY6812 150W 24V 2750RPM DC MOTOR
