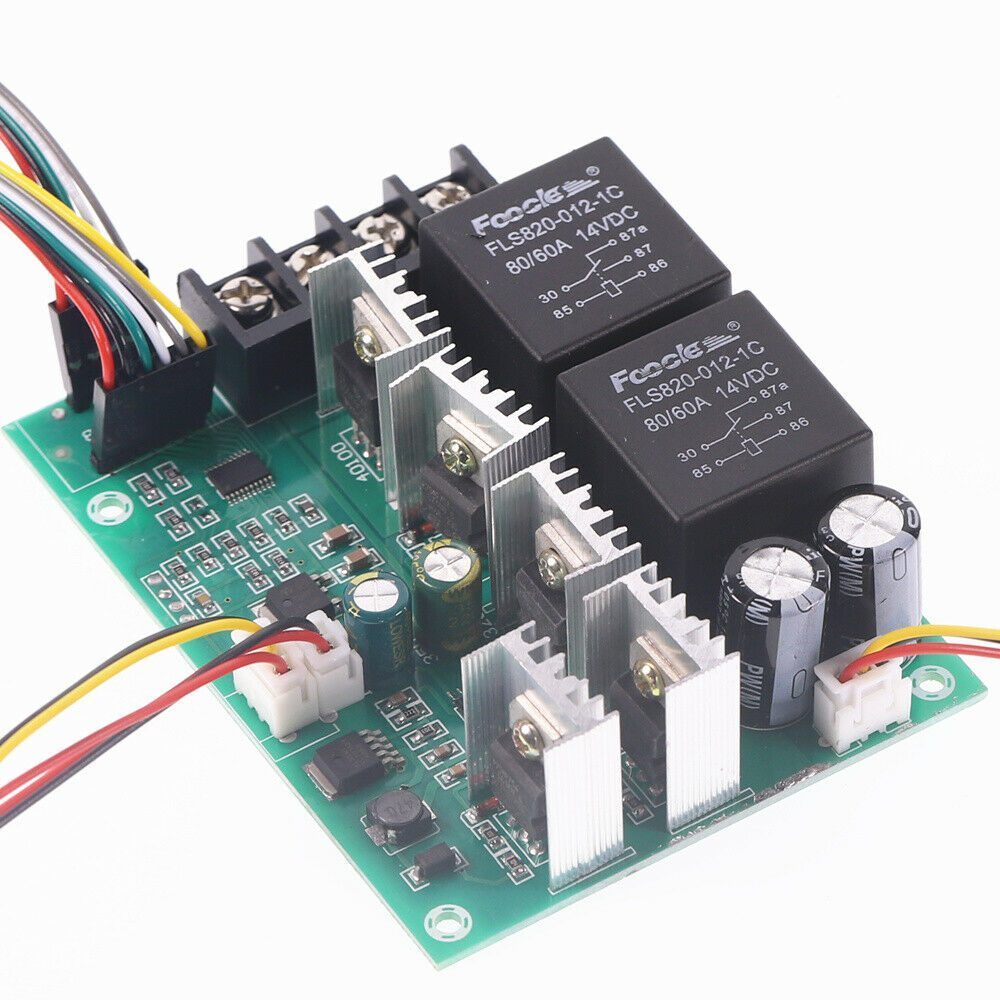

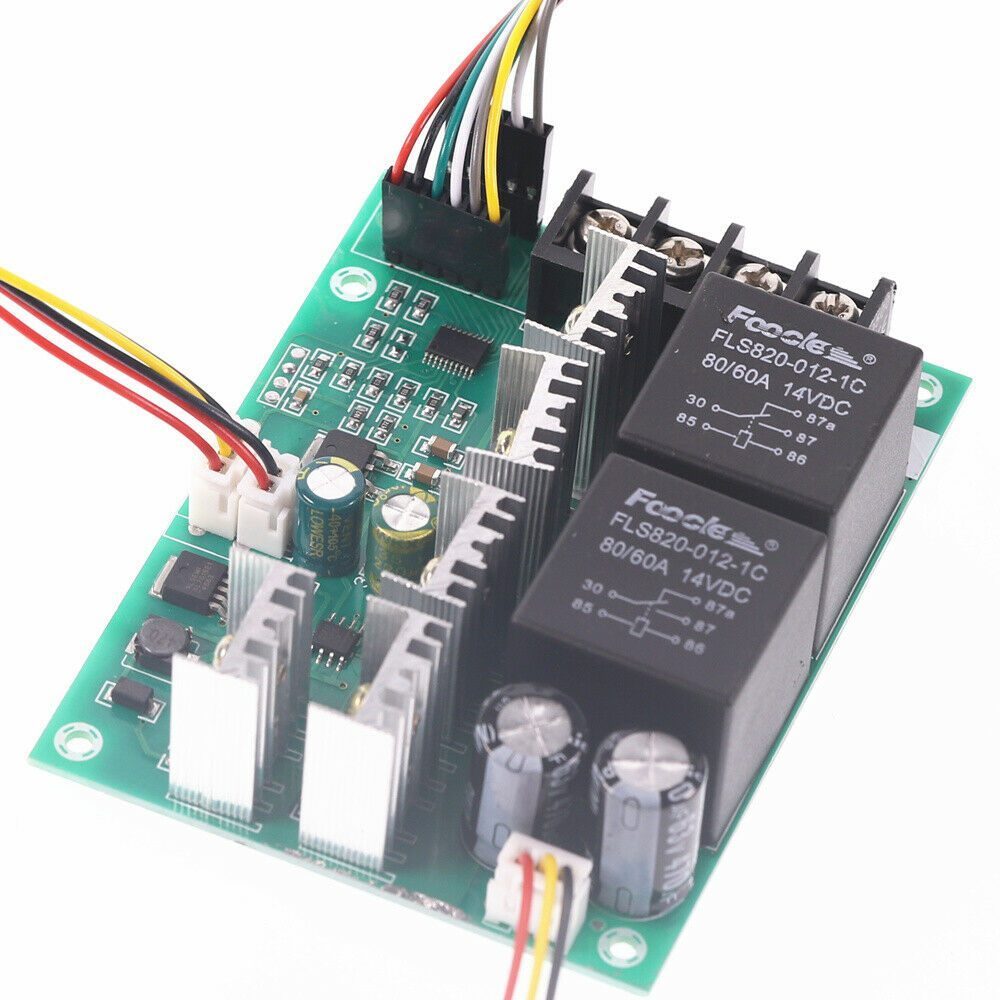

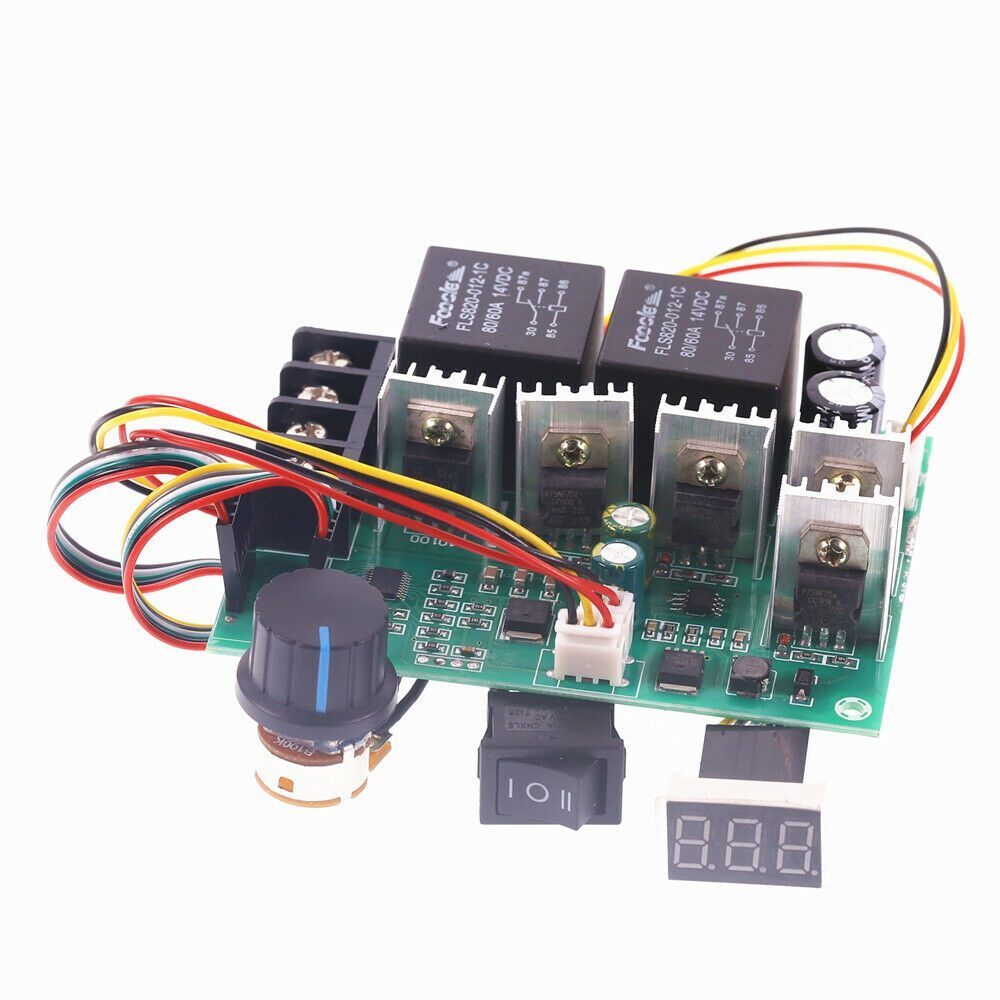

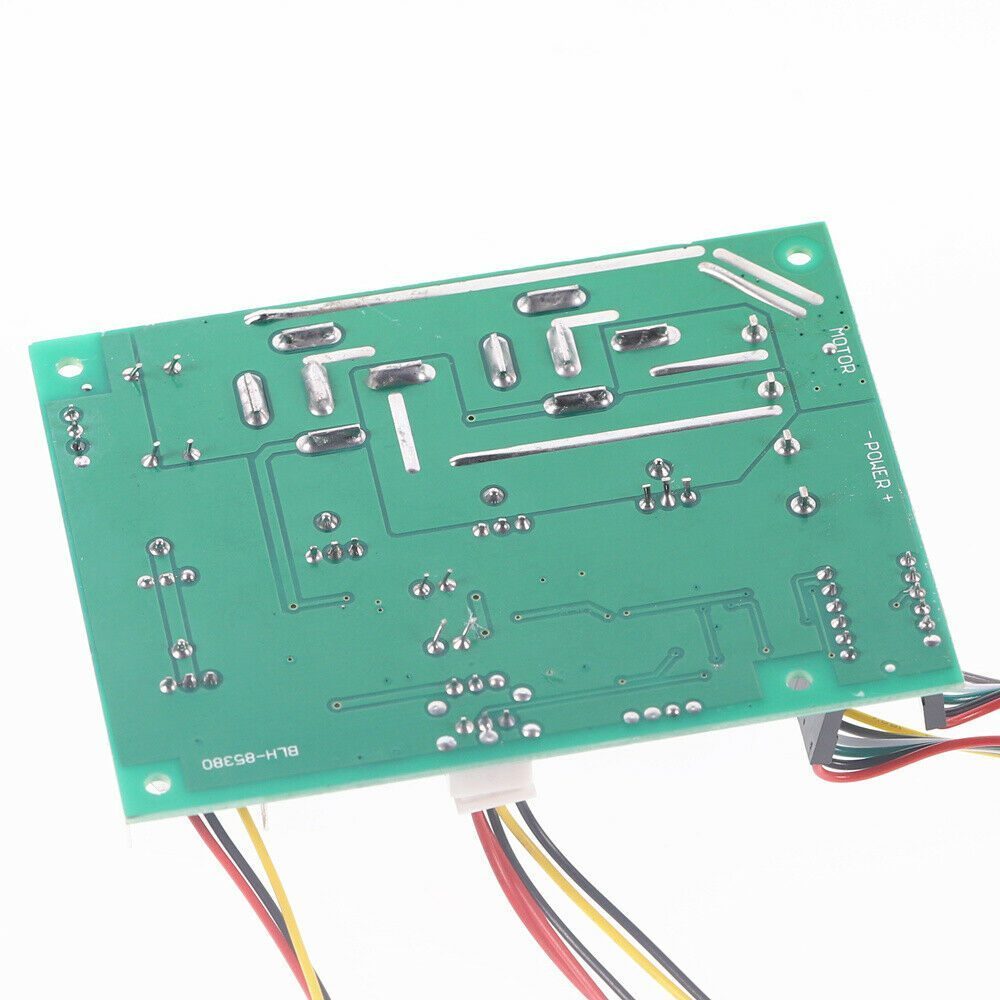

PWM Motor Speed Controller 40A DC 10V-50V Digital Display 60A Max 0~100%

PWM Motor Speed Controller 40A DC 10V-50V Digital Display 60A Max 0~100% is a  40A high-power PWM DC motor speed controller works with forward reverse and stop control with display showing voltage. It is having  maximum power of 2000W SCM drive motor controller module.

Features:

• Potentiometer with switch function
• High power speed controller switch which is much more adaptable
• DC10V-55V PWM Brushed DC Motor Speed Controller Adjustable Driver CW CCW Reversible Switch With Digit Display
• The input voltage must differentiate “+”,”-“,
• The input voltage should be equal to the rated voltage of the motor within 10-55V, or it will be burnt
• With forward, reverse bidirectional toggle switch.

Specifications:

• Input Voltage: DC10-50V
• Persistent Current: 40A
• Maximum current: 60A
• Output Voltage: Linearity Under Load
• Speed Range: 0-100%
• Operating Frequency: 15KHZ
• Length (mm): 100
• Width (mm): 76
• Height (mm): 28
• Weight (gm): 170

Package Includes:

• 1 x PWM Motor Speed Controller 40A DC 10V-50V 12V 24V 36V 48V Digital Display 60A Max Brush DC Motor Controller – Third Gear Forward Reverse Stop

Note:

• The LED Display from 0-100, it is percentage not speed, not actual speed of the motor
• Input voltage should be the same with rated voltage of the motor
• The terminal of the controller must be connected to the right port of the power supply
