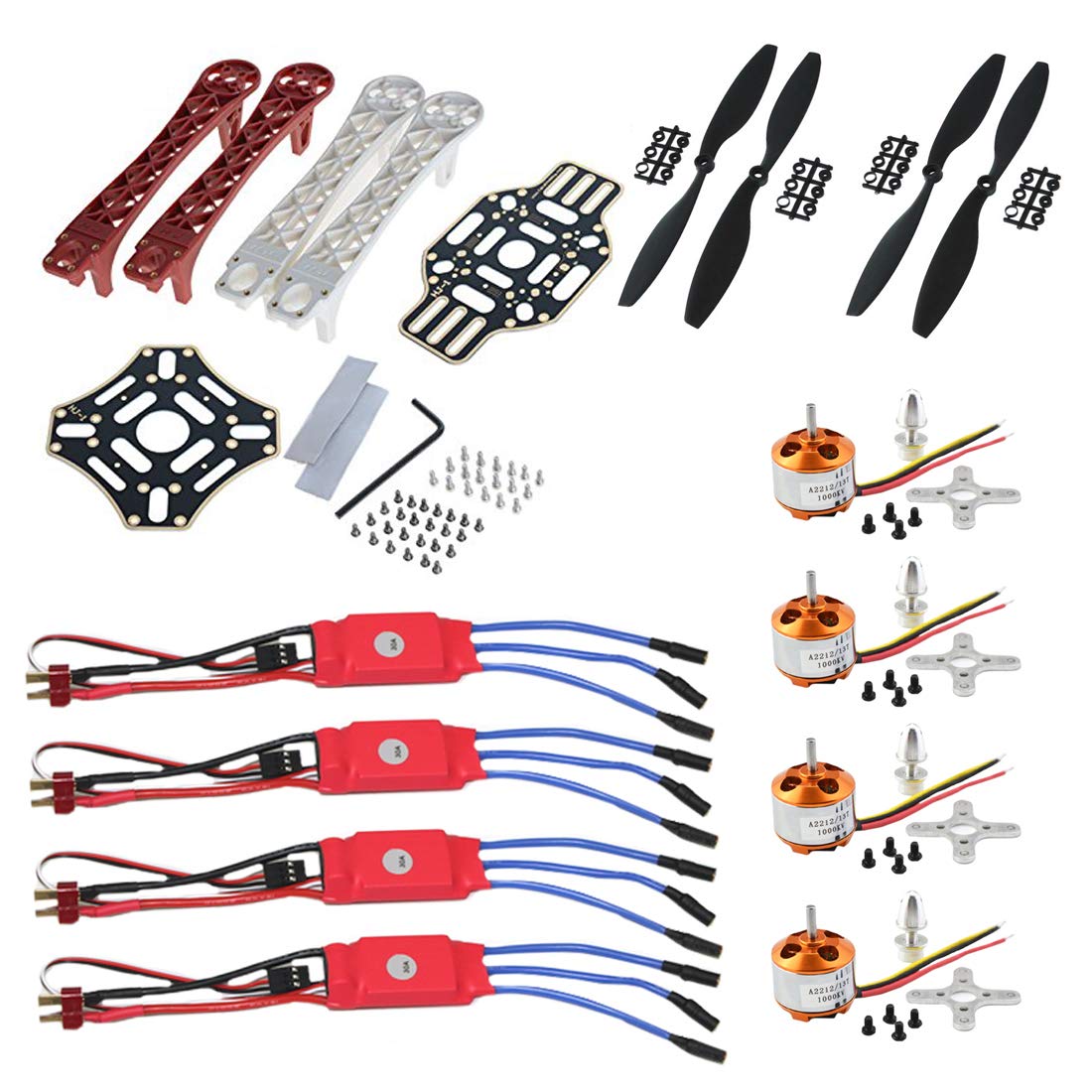

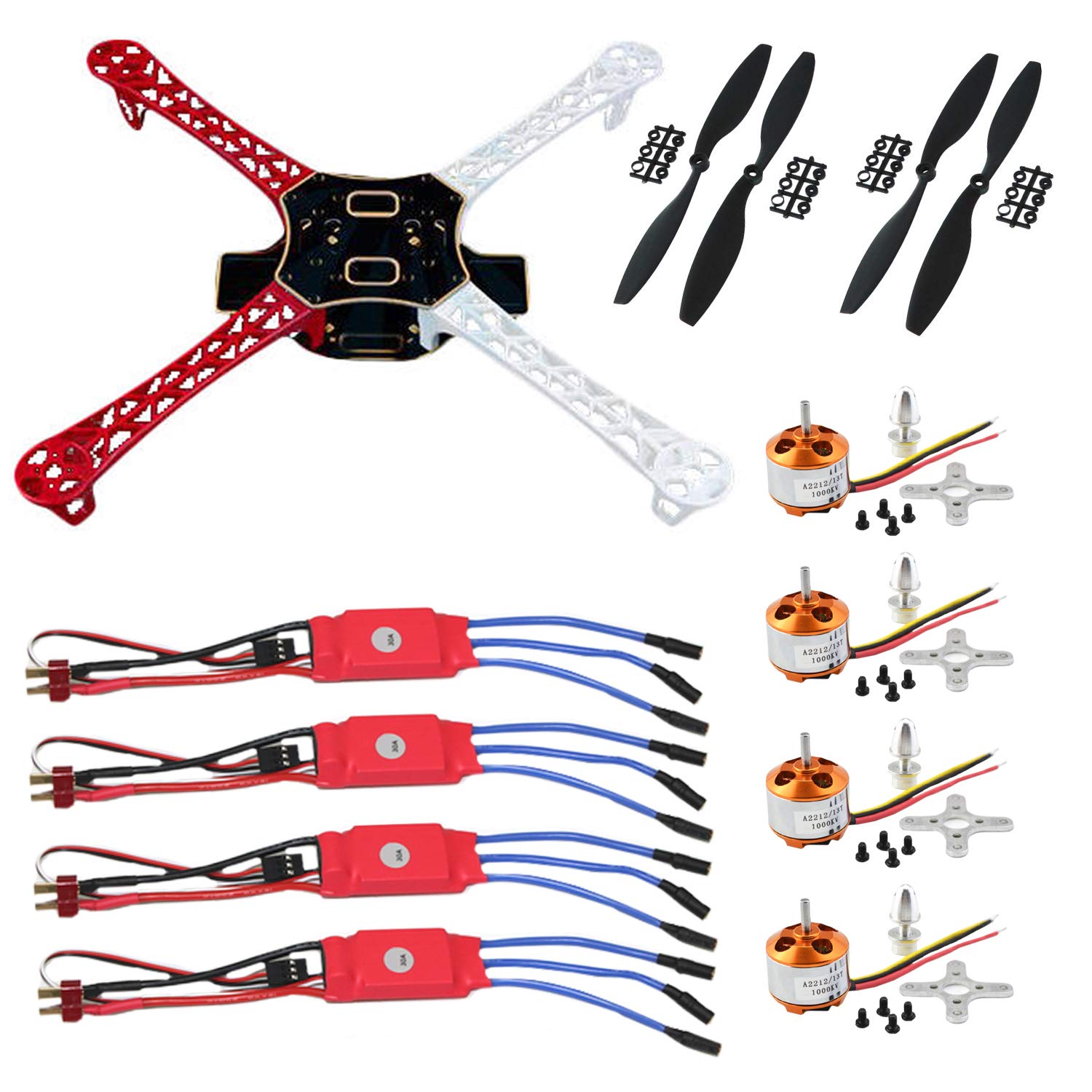

QUADCOPTER ENTRY LEVEL KIT

This set is a complete combo of Frame, motors, propellers and ESCs required for a quadcopter

R450 QUADCOPTOR FRAME WITH INTEGRATED PCB FOR EASY WIRING:

• Built from quality glass fiber and polyamide nylon.
• Integrated PCB connections for direct soldering of your ESCs
• Pre-threaded brass sleeves for all of the frame bolts.
• Colored arms for orientation to keep you flying in the right direction.
• Large mounting tabs on main frame bottom plate for easy camera mounting.
• Easy assembly.
• Width: 450mm
• Height: 55mm
• Weight: 270g (w/out electronics)
• Motor Mount Bolt Holes: 16/19mm

RC BRUSHLESS MOTOR 2212 1000KV WITH PROPELLER ADAPTOR:

• Weight 52 gm
• Runs on 2-3 Cell Li-Po battery
• ESC Requirement minimum 25A
• Length 43.5mm with shaft
• Diameter 28.5mm
• Shaft Diameter 3.17mm
• 980 RPM/V no load speed
• Free Load Current 2.5A
• Maximum Efficiency : 86%
• Thrust with 1047 Prop at 12V: 880gm
• Included : Propeller Adaptor, Motor Mount, Mounting Screw

Propellers

2 Normal props (Puller) + 2 reverse props (Pusher) - total 4 props.

10x4.5 inch ABS + Glass fiber plastic.


30A Brushless ESC:

• High rate PWM
• With simonk Firmware
• Low resistance
• Sixteen cells Max (with BEC disabled)
• User programmable brake
• Low voltage auto setting based on battery
• Throttle range self-adjusting
• Soft start ramp up
• Auto motor cutoff with reset
• Runs motor in forward or reverse
• Safe power arming program ensures motor will not run accidentally after turn on
• Low torque start
• Auto shut down when signal is lost
• Constant Current: 30A
• BEC 3A
• Input Volt: 6V - 12V
• Max Current: 40A
• Low-Voltage Cutoff: Auto detect and set
• Size: 56mm x 24mm x 8.5mm
• Weight: 26g

Included Product Links:

R450 QUADROTOR FRAME WITH INTEGRAED PCB FOR EASY WIRING

RC BRUSHLESS MOTOR 2212 1000KV WITH PROPELLER ADAPTOR

COUNTER ROTATING PROPELLER 1045/1045R FOR QUADROTOR-MULTIROTOR

BRUSHLESS MOTOR SPEED CONTROLLER ESC with simonk firmware - 30A
