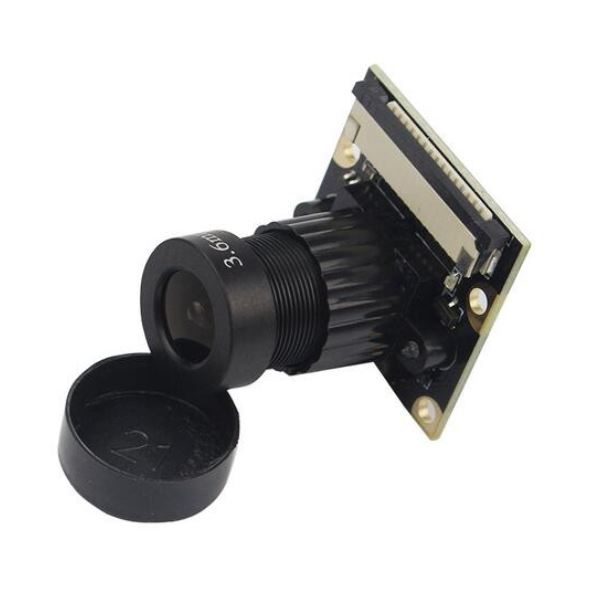

Raspberry PI Infrared IR Night Vision Surveillance Camera Module 500W Webcam
This Raspberry PI Infrared IR Night Vision Surveillance Camera Module 500W Webcam is useful in daylight as well as in the darkness of night also!!!
It features 5MP with OmniVision 5647 sensor which is in fixed focus mode. The 5MP camera module is perfect for small Raspberry Pi projects which have very little space allowance just boot up the latest version of Raspbian and you are good to go!!!
The high-definition 5MP camera delivers outstanding photos but can also shoot video, ideal for drones or a CCTV project. The camera overcomes the disadvantages offered by our other Raspberry Pi Cameras as it has provision for night surveillance too.
This Raspberry Pi Webcam Camera Module is a custom designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data.

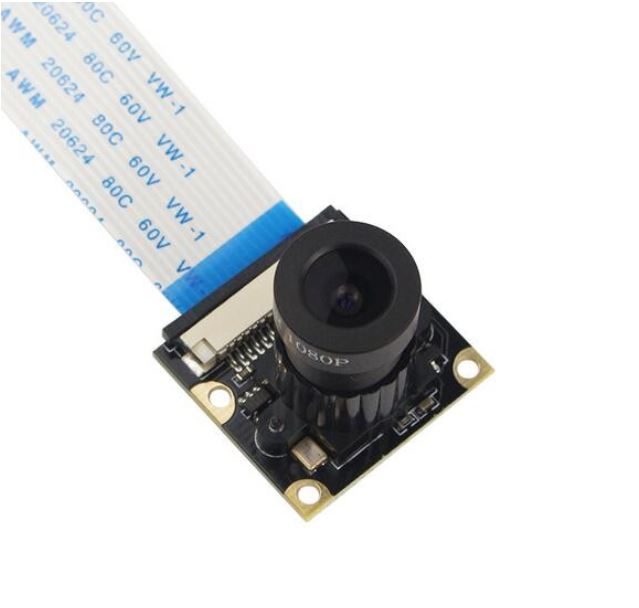

It connects to Raspberry Pi by way of a short flexible ribbon cable. The camera connects to the BCM2835 processor on the Pi via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi.
Features :
- This night vision camera can also work at night.
- Supported Video Formats: 1080p @ 30fps, 720p @ 60fps and 640x480p 60/90 video
- Fully Compatible with Raspberry Pi 3 Model B.
- Small and lightweight night vision camera module.
- Plug-n-Play camera for Raspberry Pi 3 Model B.
Specifications:
- Resolution: 5 MP
- Sensors: Omnivision 5647 fixed-focus
- Interface Type: CSI(Camera Serial Interface)
- Lens Focus: Fixed Focus
- Image Size(Pixels): 2592×1944
- Aperture: 1.8
- Focal Length(mm): 3.6
- Diagonal Resolution: 75.7°
- Mounting: 4 holes
- Length (mm): 25
- Width (mm): 23
- Height (mm): 25
- Weight (gm): 10
Important Note!!
- This module is only capable of taking pictures and video, not sound.
- This Infrared Camera Module is only compatible with LATEST RASPBERRY PI 3 – MODEL B ORIGINAL available at techtonics.in.
Package Includes :
- 1 x Raspberry PI Infrared Night Vision Camera Module 500W Webcam.
