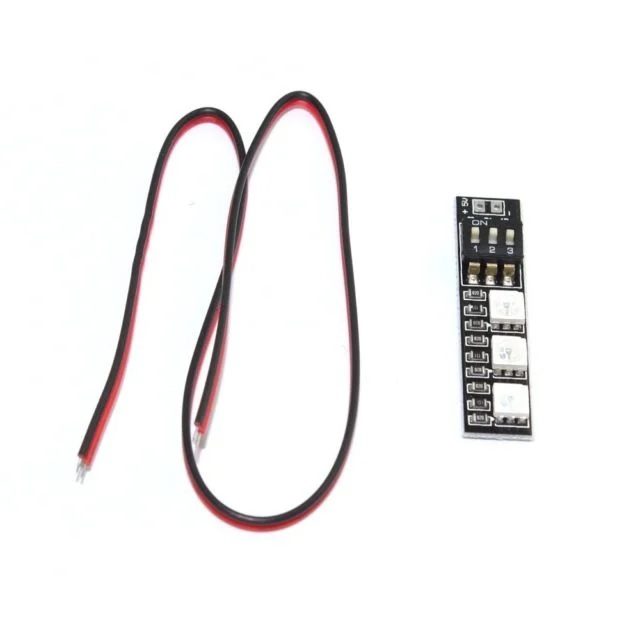

RGB 5050 5V LED Board 7 Colors with DIP Switch

This is RGB 5050 5V LED Board 7 Colors with DIP Switch. It is designed for the Multi-rotors & FPV Quad-rotors with BEC power or any other 4-6V power source.  It comes with three RGB5050 LEDs & one code switch.

Seven colors are selectable using the code switches. This LED board gives an eye-catching effect to your multi-rotors or planes.

Features:

• The LED is suitable for light DIY on multirotor, airplane, helicopter, RC car etc.
• This LED adopts RGB 5050 lamp beads, with DIP switch on board.
• According to toggle different switch combination, the LED can switch among

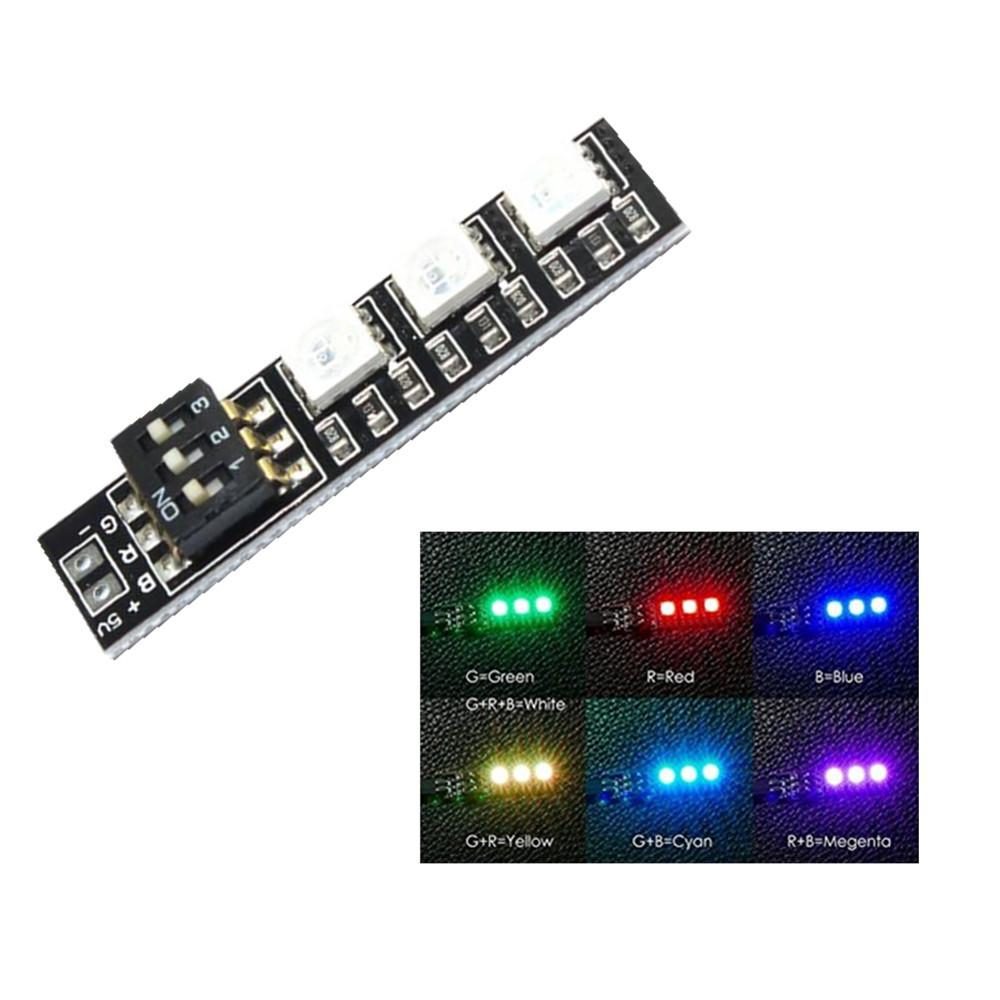

Selectable Colours & Power

• B ON =Blue,   0.35W, 0.03A
• R ON =Red,    0.35W, 0.03A
• G ON =Green,    0.35W, 0.03A
• B+R =Purple,     0.70W, 0.06A
• B+G =Cyan,      0.70W, 0.06A
• R+G =Yellow,     0.70W, 0.06A
• B+R+G =White,    1.05W, 0.09A

Specifications:

• Input Voltage (V): 4 to 6
• Size ( L x W ) mm: 47 x 10
• Weight (gm): 5

Package Includes :

• 1 x RGB 5050 5V LED Board.

Note : Cable is included with module.
