SLAMTEC RPLiDAR A1M8 360 Degree Laser Range Finder 6m (Radius Range)

SLAMTEC RPLiDAR A1M8 360 Degree Laser Range Finder 6m (Radius Range) is a low-cost 360-degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. The system can perform a 360-degree scan within a 6-meter range. The produced 2D point cloud data can be used in mapping, localization, and object/environment modeling.

RPLIDAR A1’s scanning frequency reached 5.5 Hz when sampling 360 points each round. And it can be configured up to 10 Hz maximum. RPLIDAR A1 is basically a laser triangulation measurement system. It can work excellently in all kinds of indoor and outdoor environments without sunlight.

Features:

• Measuring distance: Up to 6 meters (Radius).
• Measures distance data in more than 8000 times/s.
• 360 Degree Omnidirectional Laser Range Scanning.
• 8000 times sample rate, the highest in the current economical LIDAR industry.
• OPTMAG Original Design, prolong the lifespan.
• Configurable Scan Rate from 2-10Hz.
• Ideal for Robot Navigation and Localization.
• Plug and Play.

Specifications:

• Model: RP LIDAR A1M8
• Distance range: 0.2 – 6m (Radius), 0.2 – 12m (Diameter)
• Angular range: 0-360°
• Distance resolution: <0.5mm (1% of the distance)
• Angular resolution: =<1°
• Sample duration: 0.125 Mili Seconds
• Sample frequency: >=8000 Hz
• Standoffs: M2.5 x 15mm
• Scan rate: 5.5Hz
• Length (mm): 60
• Width (mm): 70
• Height (mm): 99
• Weight (gm): 170

Application:

• Home service /cleaning robot navigation and localization.
• General robot navigation and localization.
• Smart toy localization and obstacle avoidance.
• Environment scanning and 3D re-modeling.
• General simultaneous localization and mapping

Note:

• The range of this RPLiDAR is 6-meter if we are considering radius and 12-meter if we are considering diameter. So we can also name as RPLiDAR A1M8 360 Degree Laser Range Finder 12M.

Package Includes:

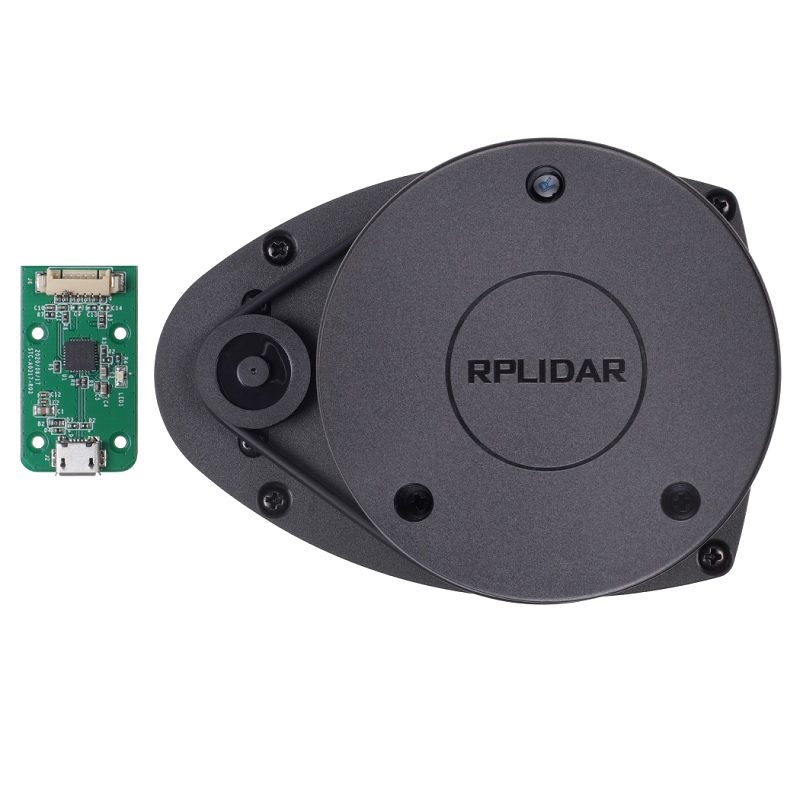

• 1 x RP LIDAR A1M8 360 Degrees Laser Radius Range Finder.
• 1 x Interfacing Controller and Connecting Cable.

Useful Link:

• SLAMTEC RPLiDAR A1M8 Datasheet
