TB6560 Driver Board 3A CNC Router Single 1 Axis Controller Stepper Motor

Name: TB6560 Driver Board 3A CNC Router Single 1 Axis Controller Stepper Motor
Brand: Generic / Other
SKU: ANIL3265
Price: 536.00 INR
Availability: InStock

grade Be the first to review

SKU: ANIL3265 content_copy

Brand: Generic / Other

₹536.00 (Incl. 18.00% GST) Excl. GST: ₹454.24

In Stock (5 units ready to dispatch from Ahmedabad Hub)

receipt_long GST Invoice with ITC Claim

inventory Wholesale & Volume Pricing Click tier to auto-select

1 – 4 pcs

₹536.00

Regular

5 – 9 pcs

₹509.20

Save 5%

10+ pcs

₹482.40

Save 10%

Qty

pin_drop Check Delivery & Shipping SLA Free Shipping > ₹2,000

local_shipping

Dispatches in 24h

From Ahmedabad Hub

verified

100% Genuine Part

Tested & Quality Checked

receipt_long

GST B2B Invoice

Input Tax Credit Eligible

support_agent

7-Day Support

Easy Defect Replacement

chat Need Technical Help? Chat on WhatsApp

memory Technical Parameters & Datasheet Summary

SKU: ANIL3265

Component Title TB6560 Driver Board 3A CNC Router Single 1 Axis Controller Stepper Motor

Part Number / SKU ANIL3265

Brand / Manufacturer Generic / Other

Category & Taxonomy Stepper Motor Driver

Applicable GST Rate 18.00% GST (Official GSTIN Invoice Provided with Input Tax Credit)

Packaging Protection Anti-Static Moisture Barrier Shielding Bag (ESD Protected)

Dispatch Hub Dispatches within 24 Hours from Ahmedabad Hub, Gujarat, India

Datasheet & Queries? chat Ask an Application Engineer on WhatsApp

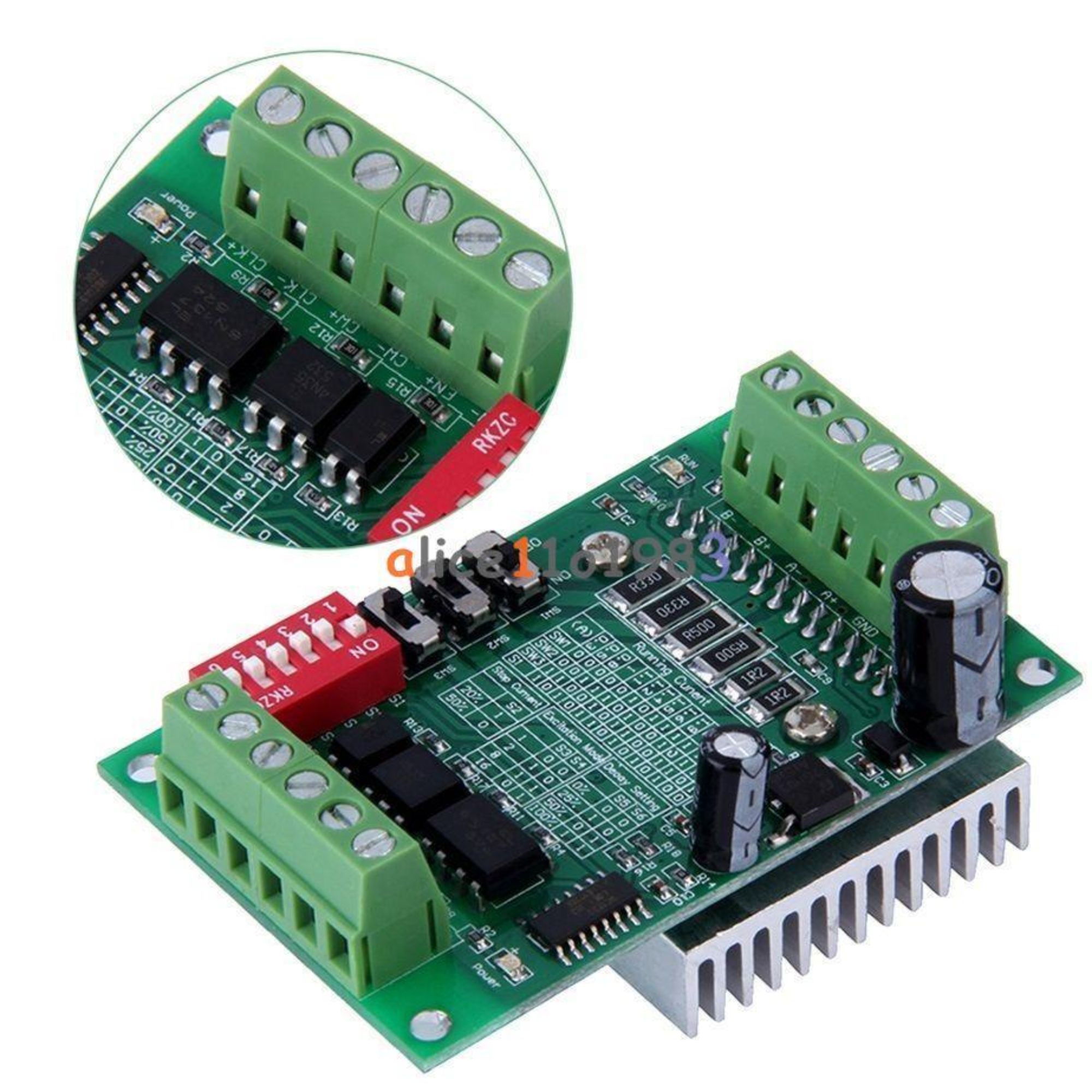

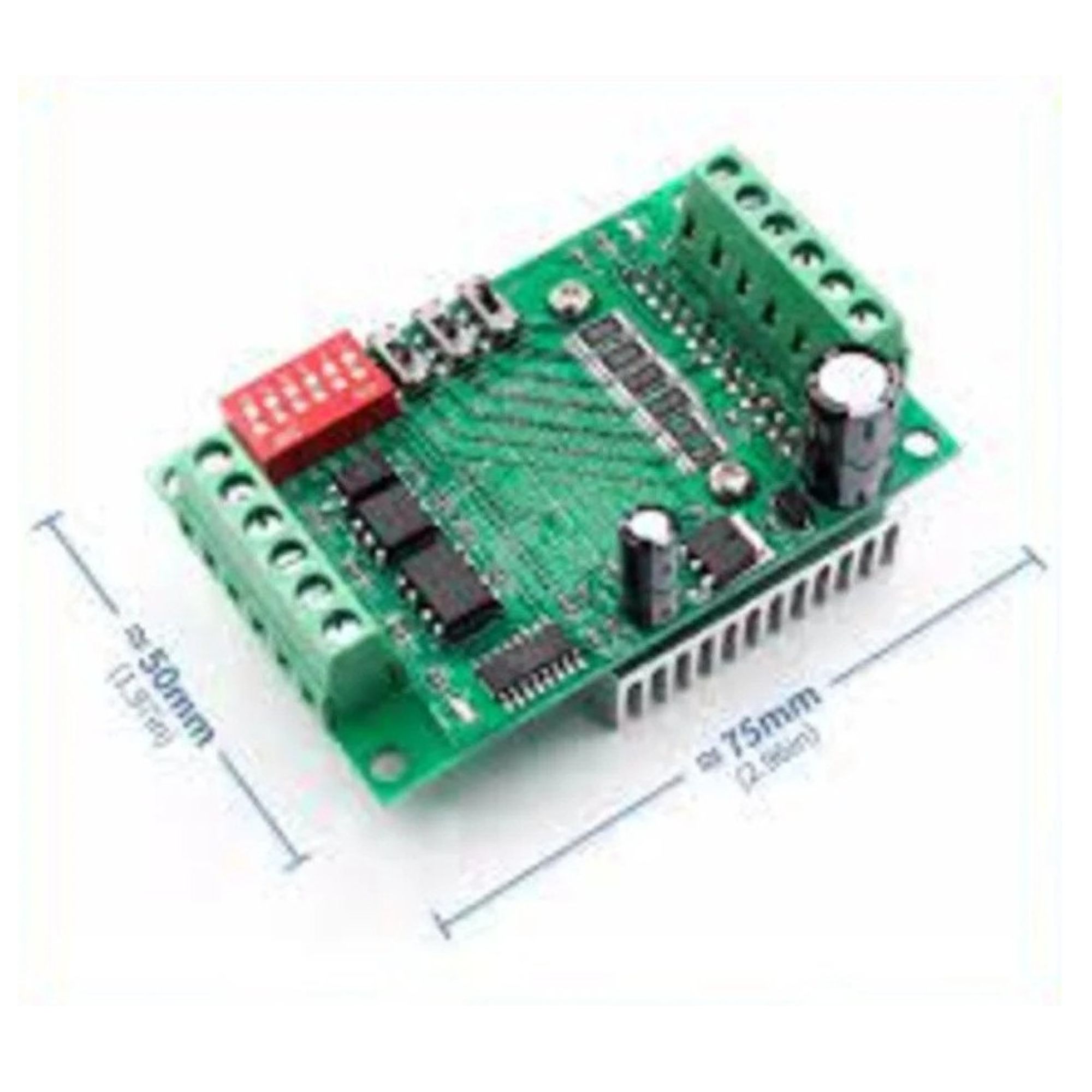

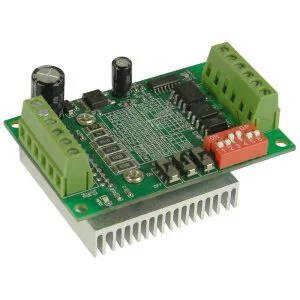

The TB6560 Driver Board 3A CNC Router Single 1 Axis Controller Stepper Motor driver board is for axis control with Input signal high-speed optocoupler isolation, the large heat sink to ensure good heat dissipation. Stepper motor driver is Semi-flow mode adjustable, semi-flow current adjustable, with a variety of semi-flow model and semi-flow current setting functions.

It is very easy to use requires no special instructions. The module features Semi-flow mode adjustable, semi-flow current adjustable, not the general design on the market, with a variety of semi-flow model and semi-flow current setting function.

This stepper motor driver is featuring TB6560AHQ new original chip. The TB6560AHQ has low voltage shutdown, overheating stop and overcurrent protection circuit to ensure optimal performance.

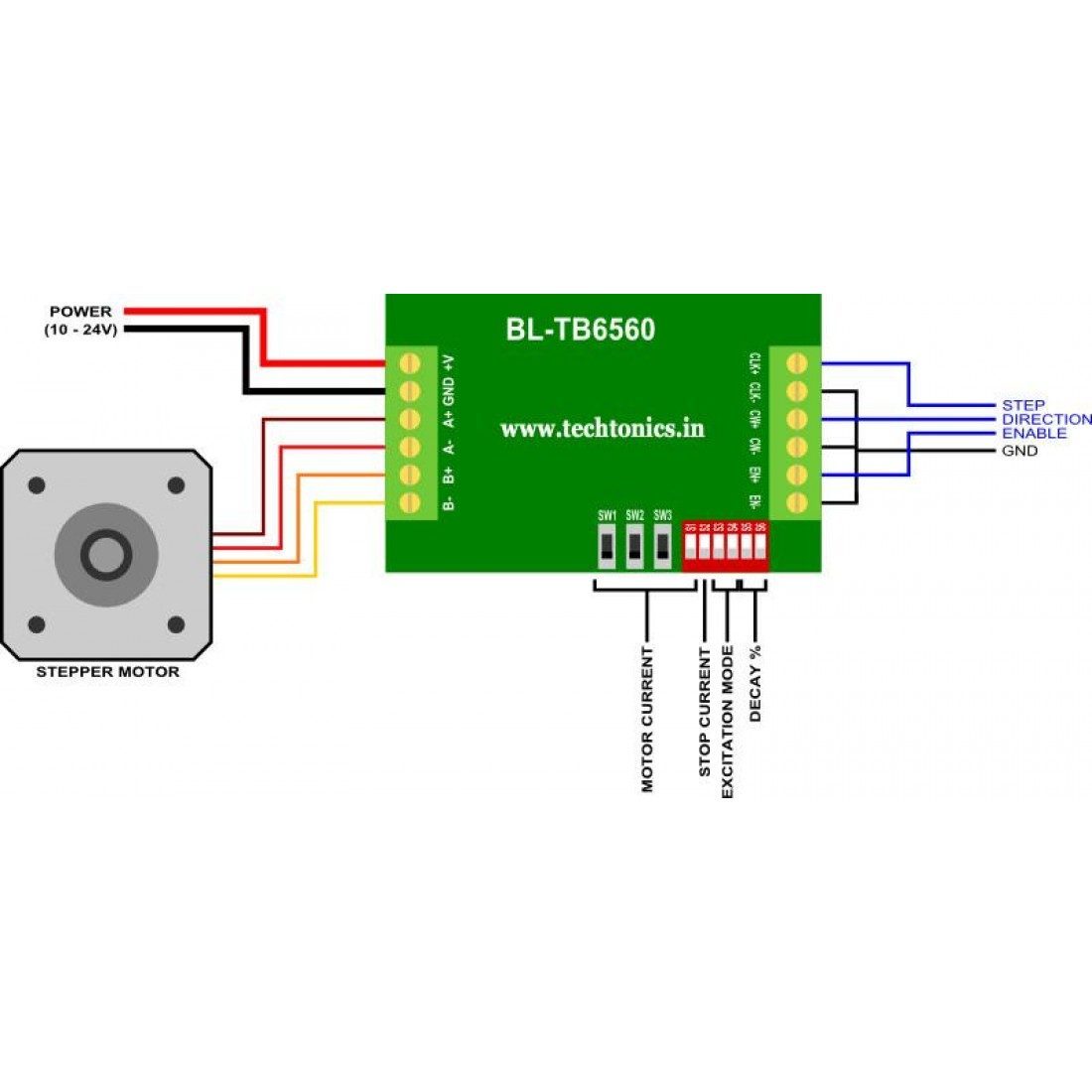

The TB6560 stepper motor control circuit is the most commonly used current circuit, which can control a 2 phase motor (10 – 35VDC) with a maximum output of 3A. The TB6560 stepper motor control circuit is used for stepper motor control, CNC machine applications or precision mechanical systems.

Features :

Current level by adjustable to meet your various application requirements.
Automatic semi-flow adjustable.
Using 6N137 high-speed optical coupling to ensure high speed without losing a step.
Board printed setup instructions.
Using thick fine-toothed radiator, good heat dissipation.
For 42,57,86 Stepper within 3A 2/4 -phase / 4 wire / 6 wire stepper motor, not fit for more than 3A stepper motor.
Excitation Mode: synchronizing, half step, 1/8 step, 1/16 step, a maximum of 16 segments.
Automatic half-decay.

Specifications:
