TowerPro MG995 Metal Gear Servo Motor 11 kgcm (360 Degree Continuous Rotation) – METAL GEAR

TowerPro MG995 Continuous Rotation 360 Degree Metal Gear Servo Motor is a high-speed standard servo can rotate Continuous rotation 360 degrees. You can use any servo code, hardware or library to control these servos, so it’s great for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places.

MG995 is a digital metal gear high torque servo for airplane, helicopter, RC-cars and many RC model. This TowerPro MG995 Rotate 360 Degree Servo Motor is special among all the available servo motors because its operation is very different from that of a standard servo. As instead of going to a specified angle, this servo will be static at a 1.5ms pulse, a longer pulse gives forward rotation and a shorter pulse give backward rotation.

They are packed within a tight sturdy plastic case which makes them water and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too.

Features:

• The connection cable is thicker.
• Equips high-quality motor.
• High resolution
• Accurate positioning
• Fast control response
• Constant torque throughout the servo travel range
• Excellent holding power

Specifications:

• Model: MG995
• Operating Voltage: 4.8 – 7.2 V
• Operating Speed @4.8V: 0.20sec/60°
• Operating Speed @6.6V: 0.16sec/60°
• Stall Torque @4.8V: 9.40 kg-cm
• Stall Torque @6.6V: 11 kg-cm
• Operating Temperature (°C): -30 to 60
• Dead Band Width: 4 μs
• Gear Type: Metal
• Rotational Degree: 360
• Servo Plug: JR
• Cable Length: 0.3 m (30 cm)

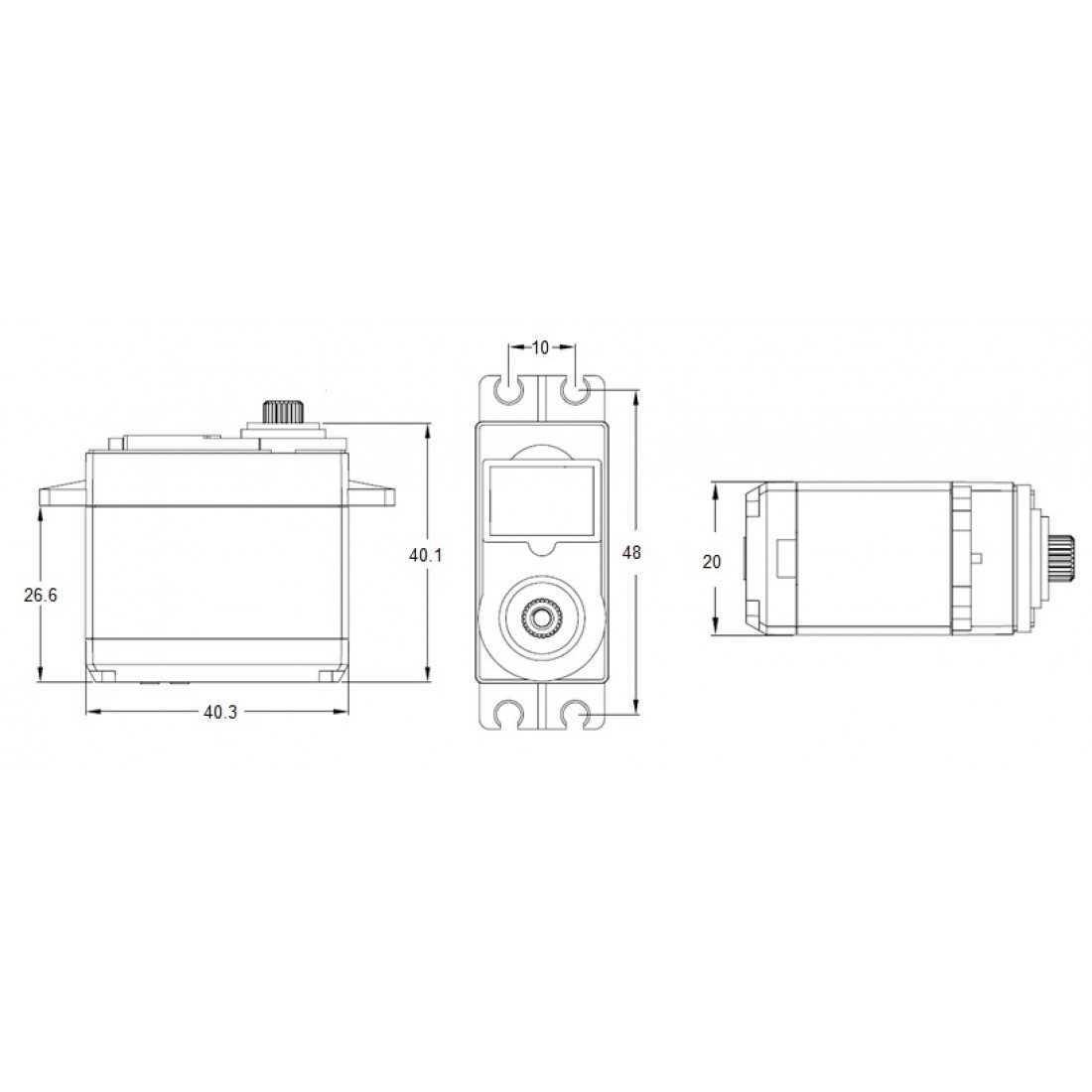

• Length (mm): 40.5
• Width (mm): 20
• Height (mm): 44
• Weight(gm): 55

Wire Description:

• RED – Positive
• Brown – Negative
• Orange – Signal

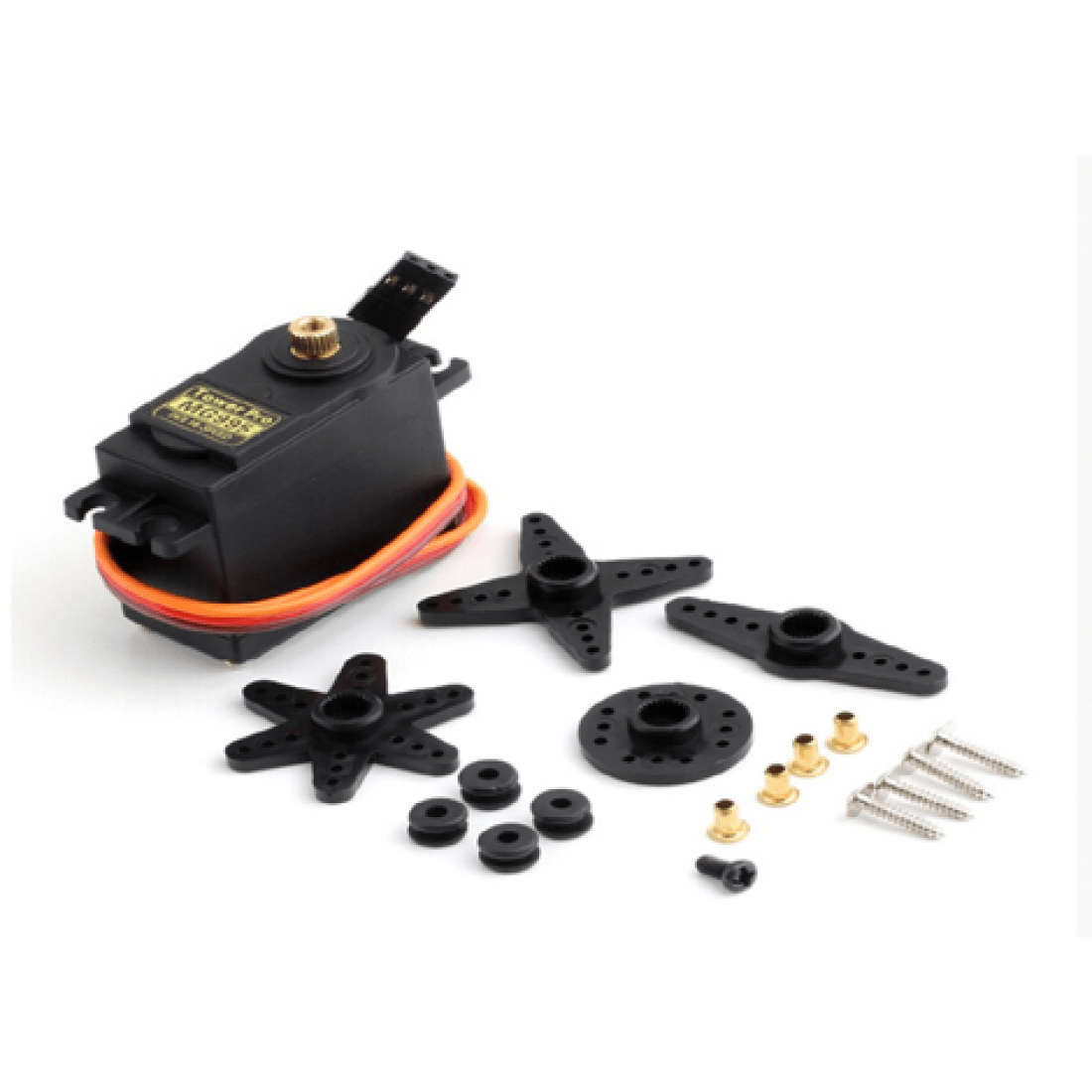

PACKAGE INCLUDES :

• 1 x Tower Pro MG995 Metal Gear Servo 360°
• 1 x Mounting accessories set.
