0.91 inch 128×32 I2C/IIC Serial 4 Pin OLED Display Module (GND VCC) – Blue

This 0.91 inch 128×32 I2C/IIC Serial 4 Pin OLED Display Module offers 128×32 pixel resolution. They are featuring much less thickness than LCD displays with good brightness and also produce better and true colors. OLED’s are the future of displays, as they possess some of the greatest advantages over both conventional display technologies of LCD’s and LED‘s.

The connection of this display with Arduino is made through the I2C(also called as IIC) serial interface. The 0.91 inch 128×32 Blue OLED Display Module produces blue text on black background with very good contrast when supplied with DC 2.8V supply. The OLED Display Modules also offers a very wide viewing angle.

Features :

• No need of the backlight
• The display is self-illuminating
• Power requirement is low
• They are offering the large viewing angle
• Better performance characteristics than traditional LCD and LED displays.

Specifications:

• Driver IC: SSD1306
• Size (inch): 0.91
• Operating Voltage (VDC): 3.3 ~ 5
• Pixel Resolution: 128 x 32
• Character Color: Blue
• Background Color: Black
• PCB Size (mm): 38×12
• Weight (g): 4

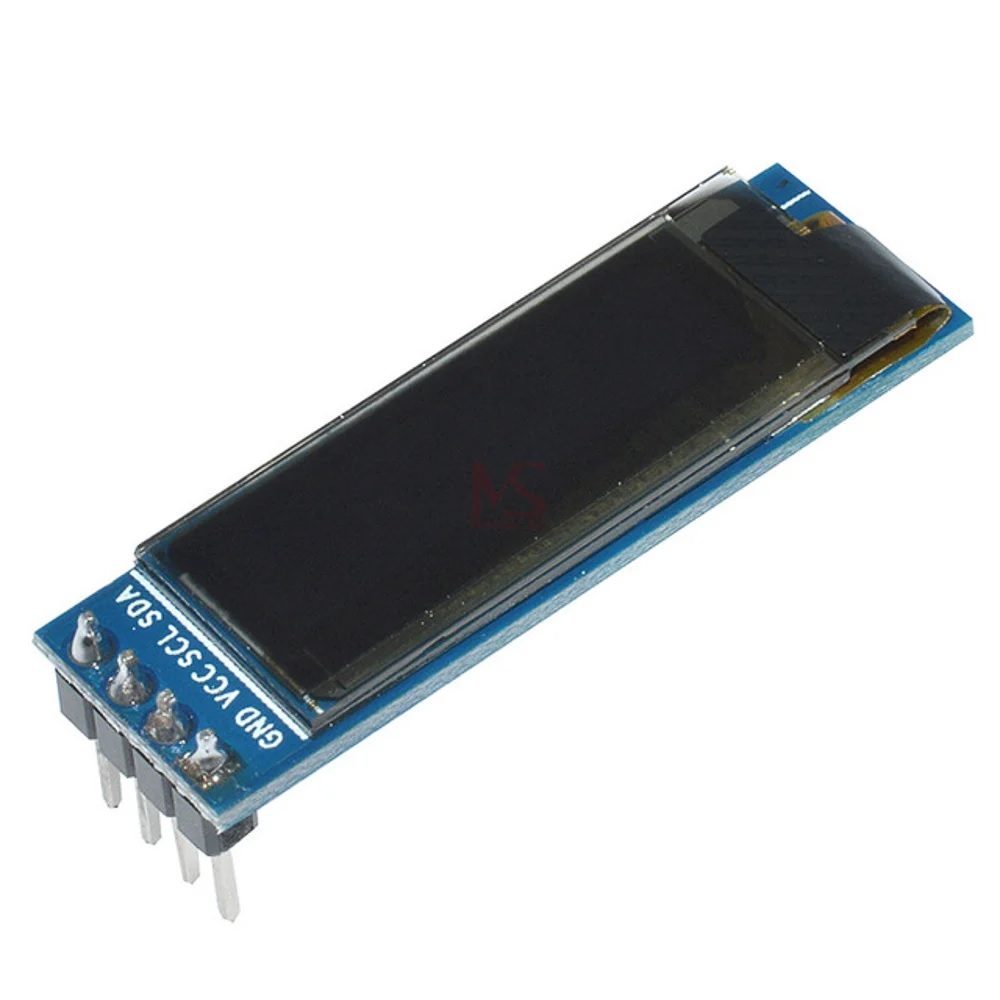

Pin Description:

• GND: Power Ground
• VCC: Power + (DC 3.3 ~5v)
• SCL: Clock Line
• SDA: Data Line

• 1 x 0.91 inch OLED Display Module 4 Pin Blue

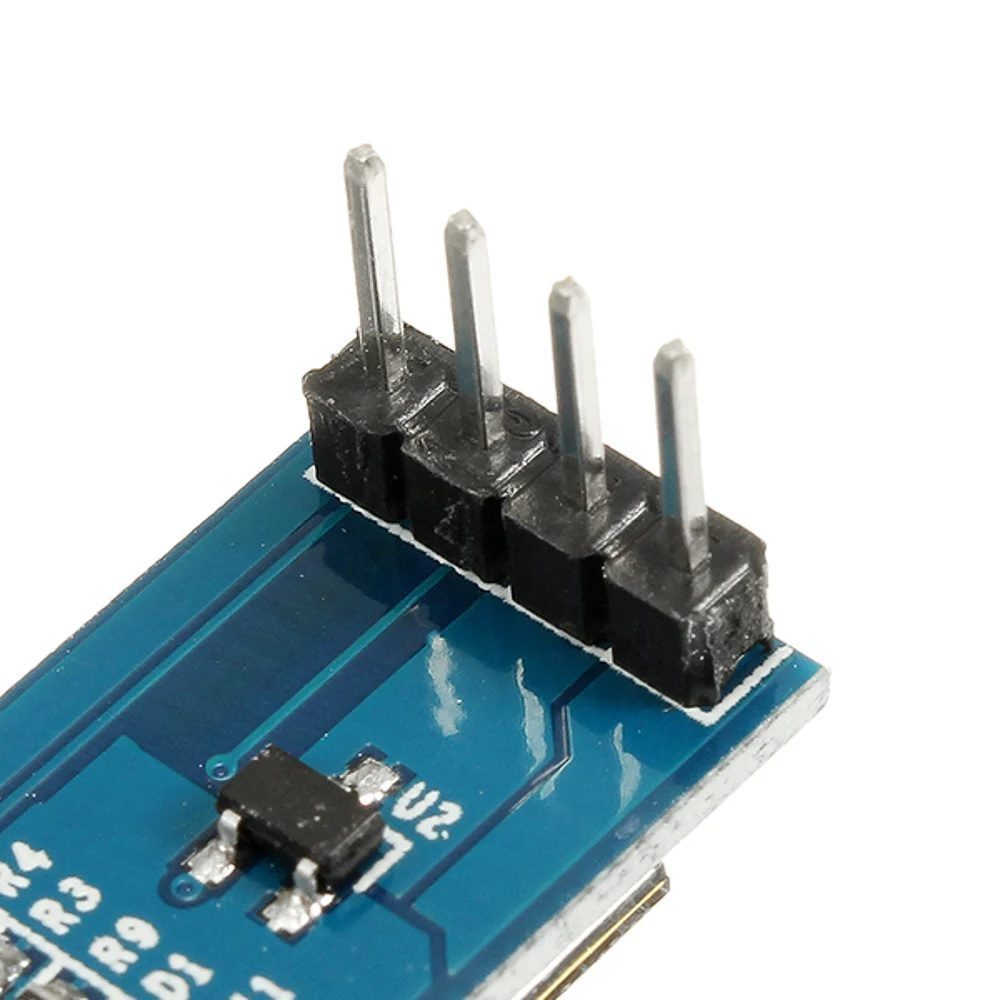

Note : Header pins are not soldered with the OLED display.
