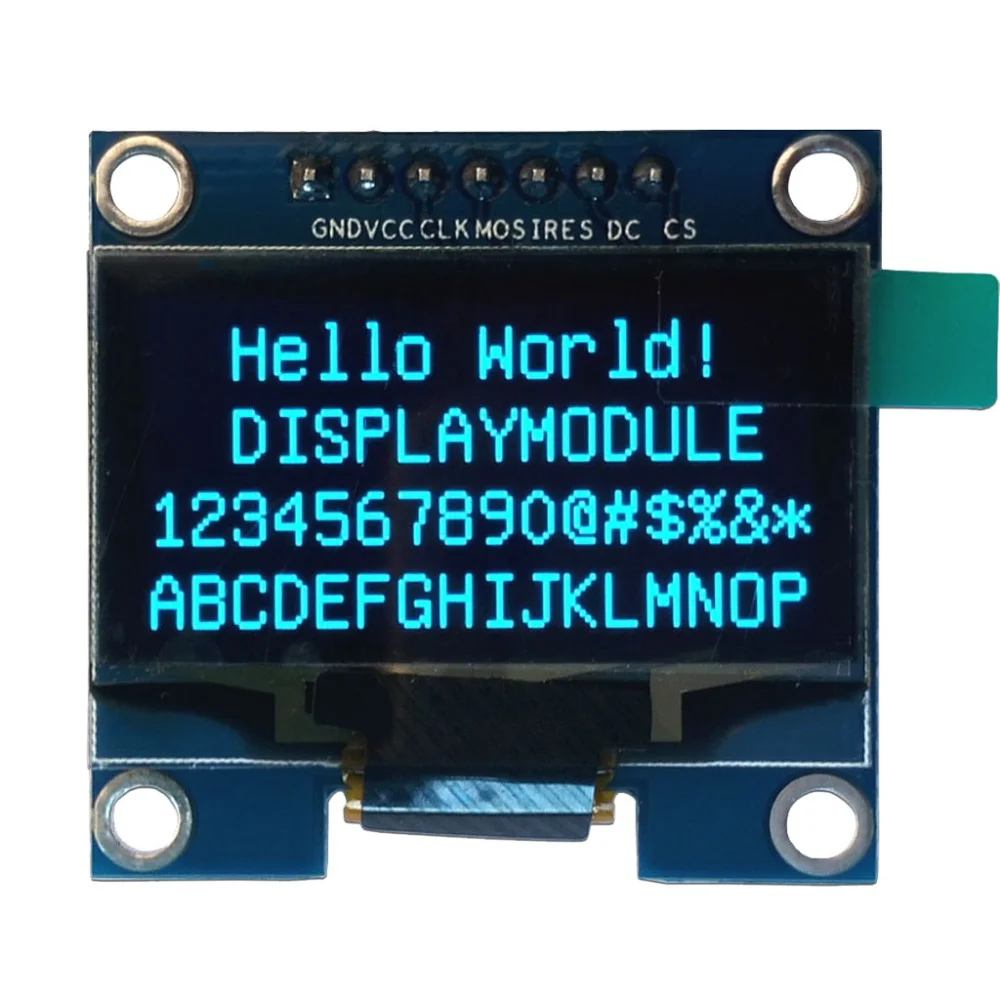

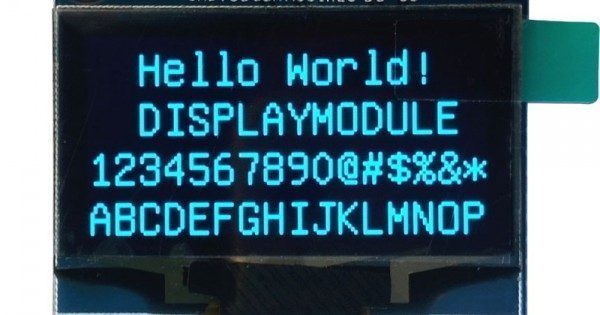

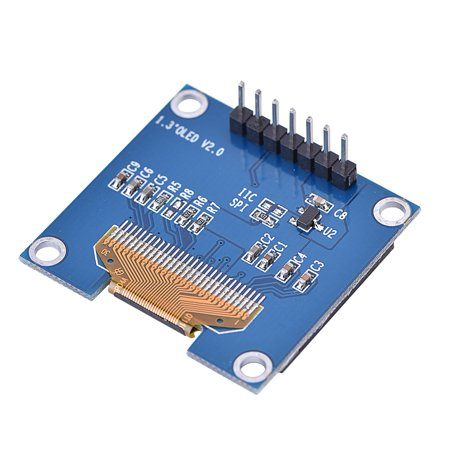

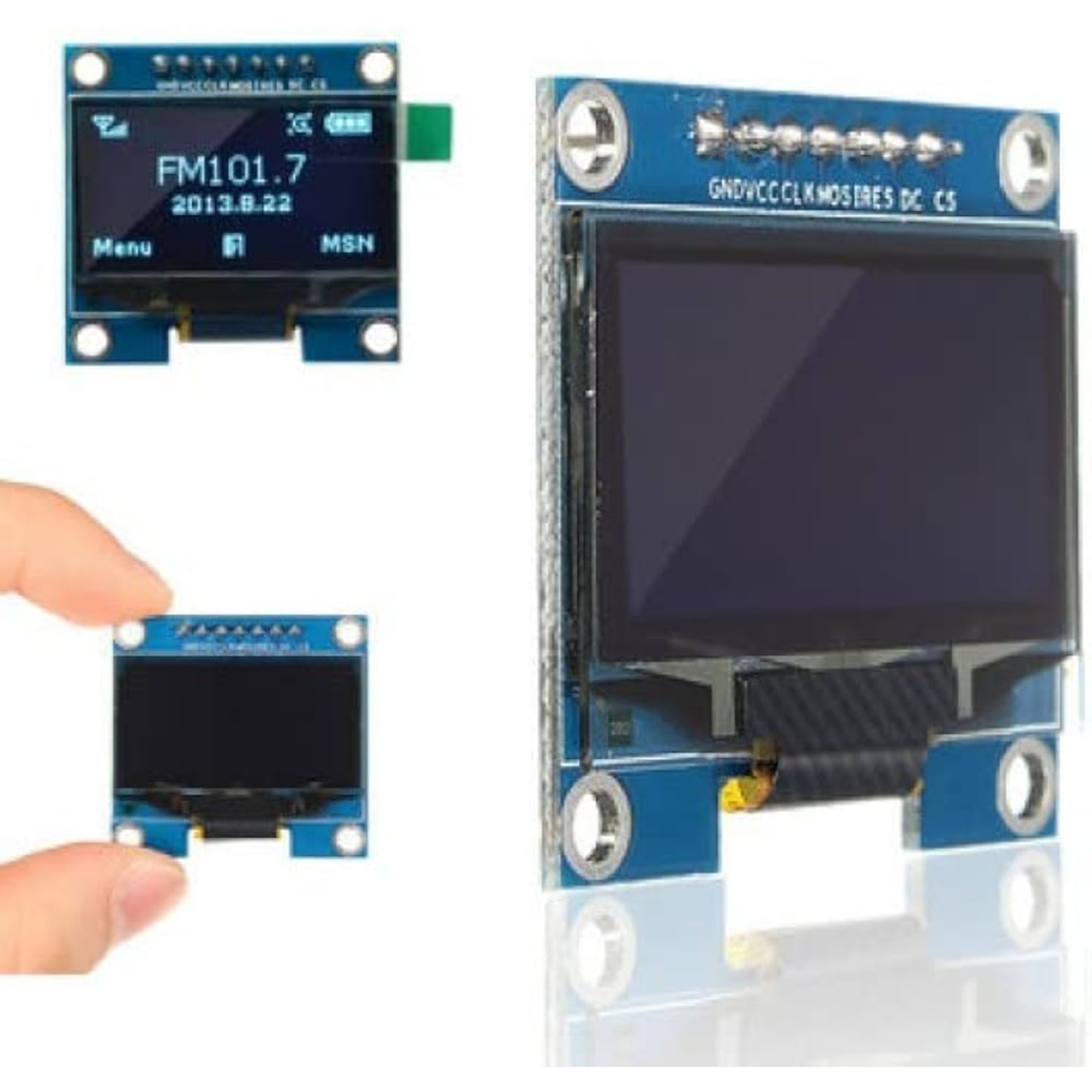

1.3 Inch OLED Blue Display Module 128×64 SPI Interface – 7 Pin

The most attractive thing about using 1.3 Inch OLED Blue Display Module 128×64 SPI Interface – 7 Pin is that they do not need a back-light like conventional LCD/LED screens. The organic material itself has a property known as Electroluminescence (EL), which causes the material to “glow” when stimulated by a current or an electric field. Best energy saving displays ever!!!

This 1.3 Inch 128×64 OLED Display Screen Module offers 128×64 pixel resolution. They are featuring much less thickness than LCD displays with good brightness and also produce better and true colors. This OLED Display Module is very compact and will add a great ever user interface experience to your Arduino project. The connection of this display with Arduino is made through SPI interface.

The 1.3 Inch 128×64 OLED Display Screen Module produces blue text on black background with very good contrast when supplied with DC 2.8V supply. The OLED Display Modules also offers a very wide viewing angle of about greater than 160 degree.

Features :

• No need of the backlight
• The display is self-illuminating
• Power requirement is low
• They are offering the large viewing angle
• Full Compatible with Arduino
• The ultra-low power consumption of around 0.08w at full screen lit.

Specifications:

• Display Size: 1.3 Inch
• Pixel Colour: Blue
• OLED Driver IC: SSD1306
• Resolution: 128 x 64 Pixels
• Visual Angle: >160 Degree
• Driving Voltage: 3.3-5V
• Operating Temperature: -30º~60º Celsius
• Interface Type: SPI
• Length (mm): 35
• Width (mm): 33
• Height (mm): 8
• Weight (gm): 7

Pin Description:

• GND: GND.
• VDD: 3.3V (VCC).
• MOSI: D11 (don’t change).
• SCK: D13 (don’t change).
• D/C: D8 (can be any digital pin).
• RST: D9 (can be any digital pin).
• CS: D10 (can be any digital pin).

Package Includes :

1 x 1.3 Inch 128×64 OLED Display Screen Module with SPI Serial Interface
