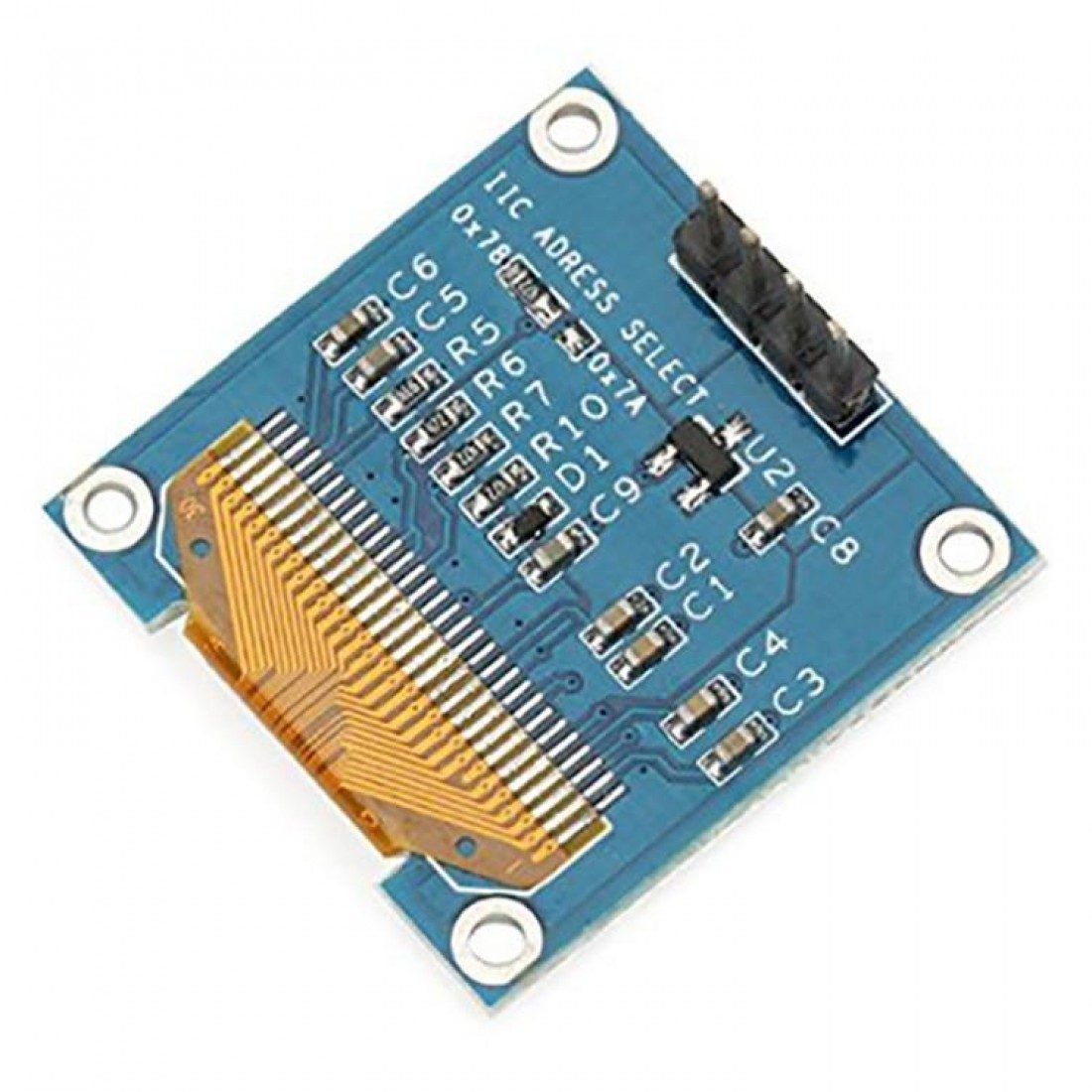

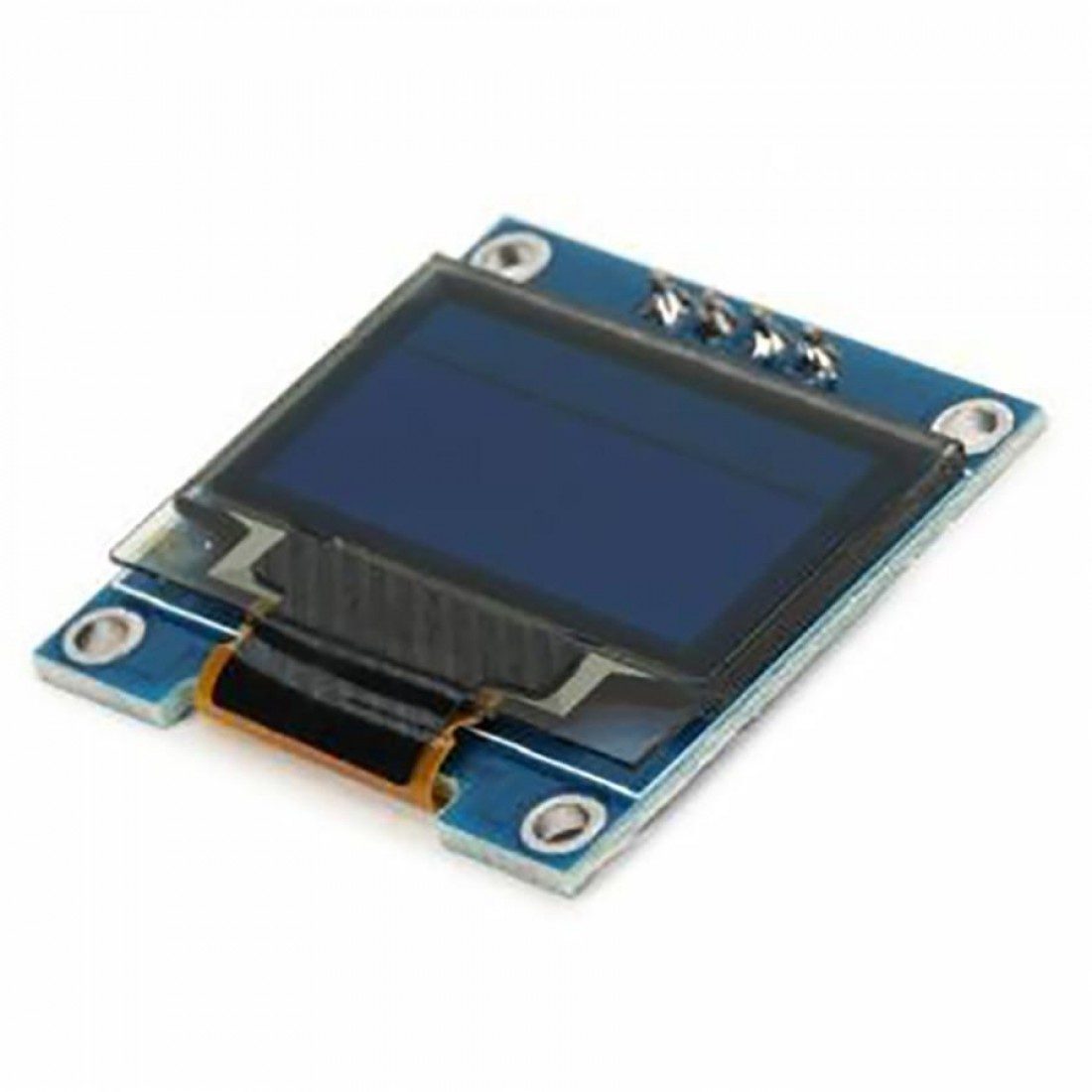

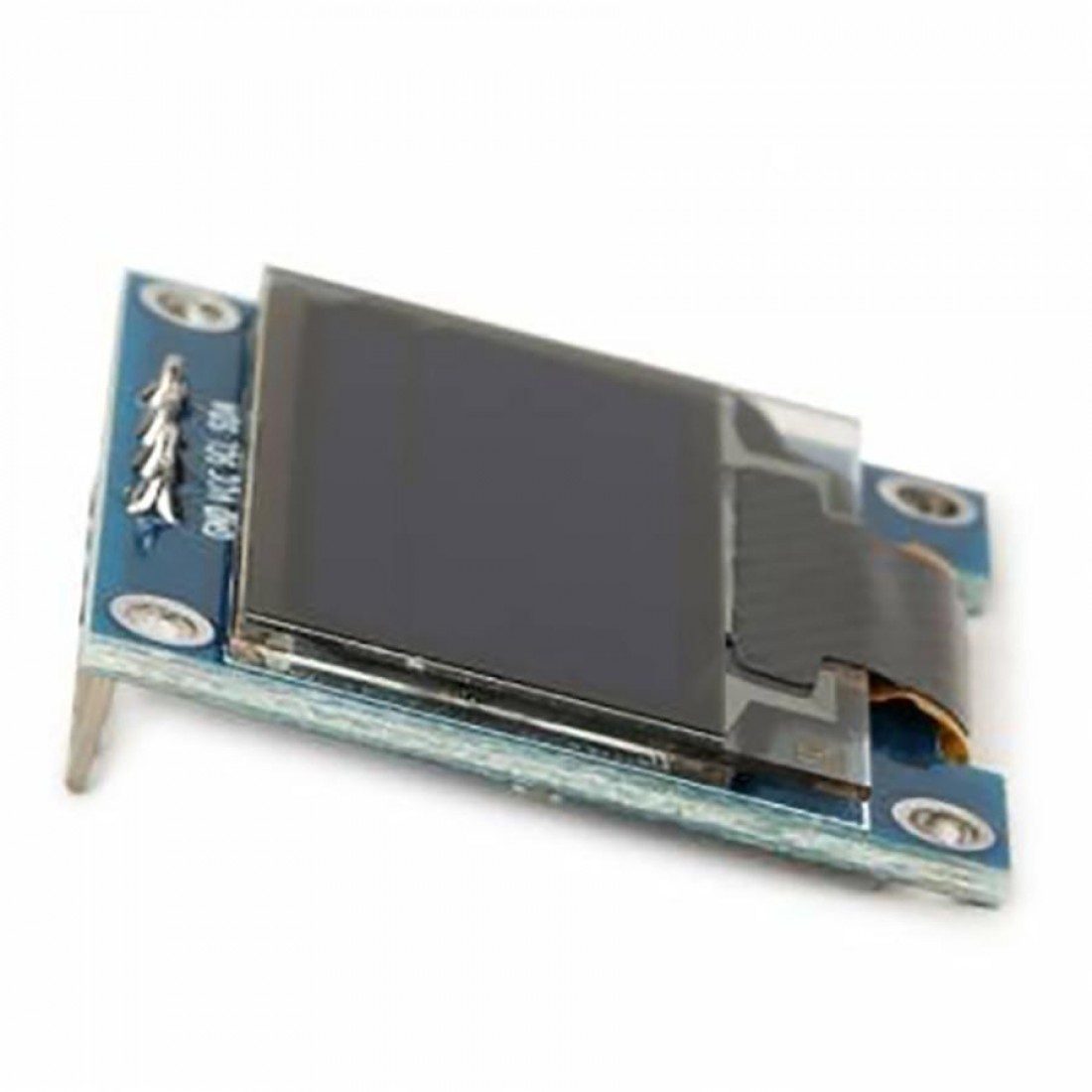

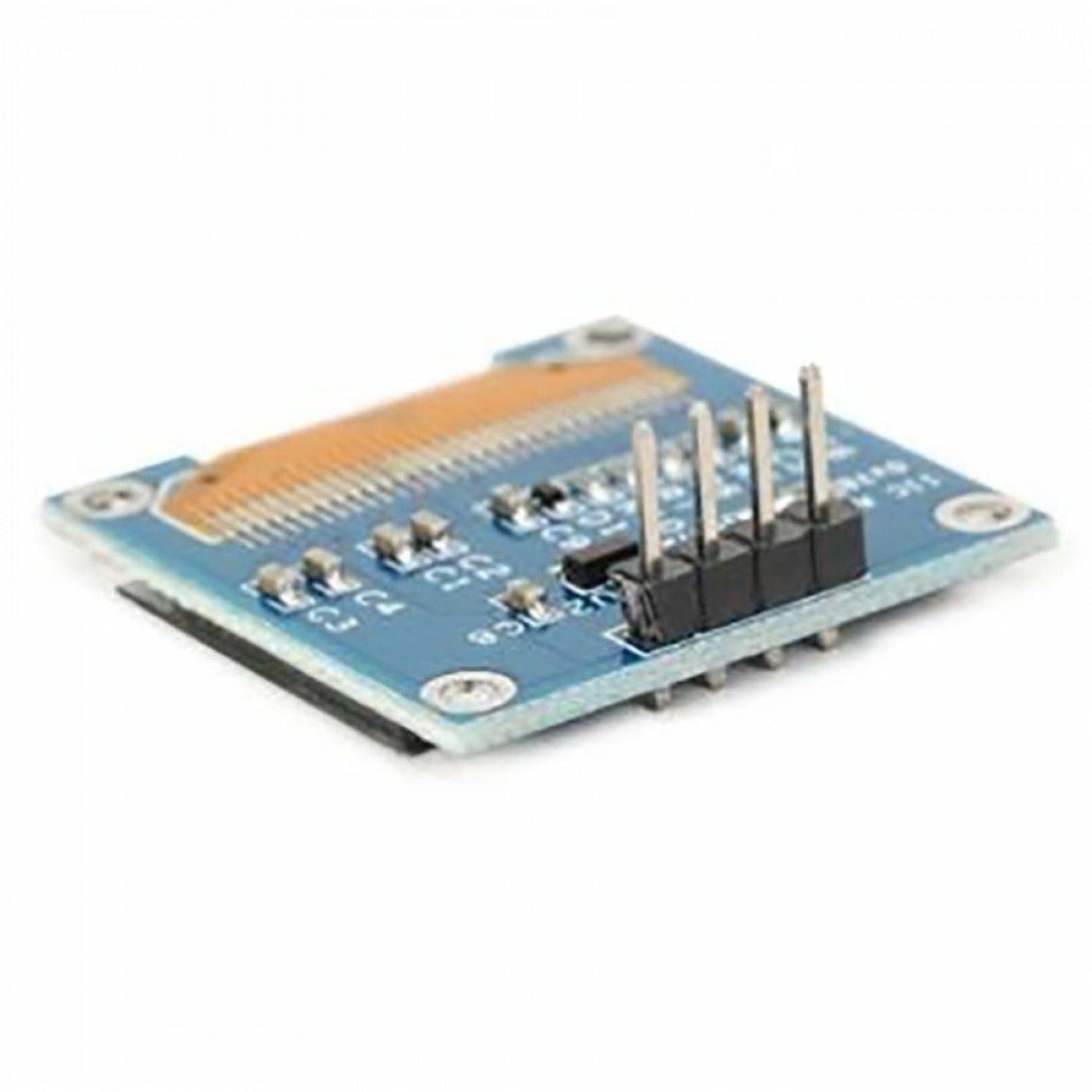

0.96 Inch I2C/IIC 4pin OLED Display Module White

0.96 Inch I2C/IIC 4pin OLED Display Module White can be interfaced with any microcontroller using SPI/IIC protocols. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino.

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

Features:

• Better resolution and viewing angle than traditional LEDs
• Support for bitmap images
• Bright and crisp display under various lighting conditions
• Only Need 2 I/O Port to Control
• Full Compatible with Arduino

Specifications:

• Display Size: 0.96 Inch
• Pixel Colour: White
• OLED Driver IC: SSD1306
• Resolution: 128 x 64 Pixels
• Visual Angle: >160 Degree
• Active Display Area: 21.74 x 10. 86mm
• Driving Voltage: 3.3-5V
• Operating Temperature: -40º~70º Celsius
• Interface Type: I2C IIC
• Length (mm): 27.5
• Width (mm): 27.5
• Height (mm): 11
• Weight (gm): 7

Interface:

• VCC: 3.3-5V
• GND: Ground
• SCL: Serial Clock
• SDA: Serial Data

Package Includes:

• 1 x 0.96″ OLED Display Module – SPI/I2C – 128×64 – 4 Pin (White)
