10V-55V 60A DC PWM Motor Speed Controller 12V 24V 36V 48V Digital Display 100A Max Brush DC Motor Controller – Third gear Forward Reverse Stop

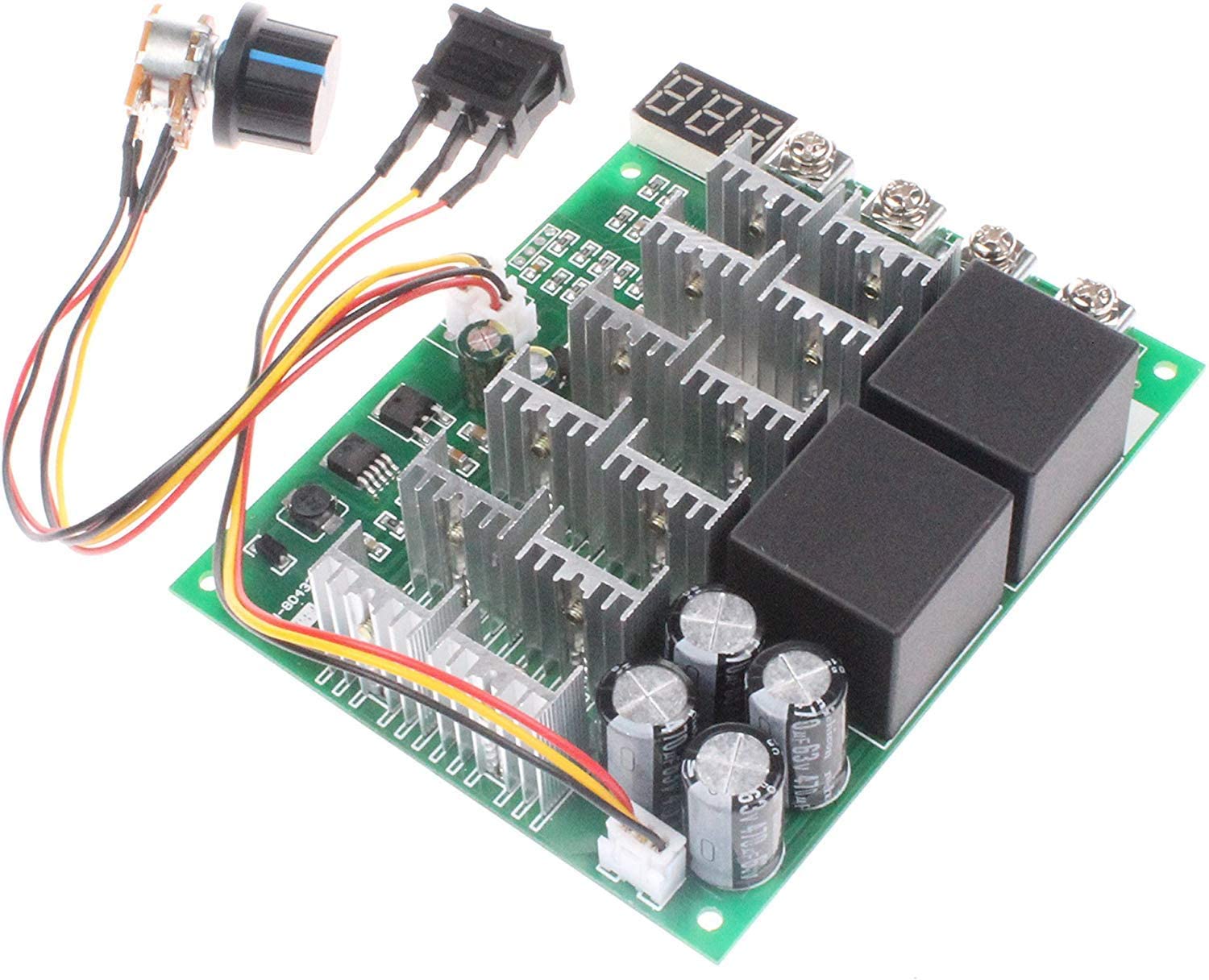

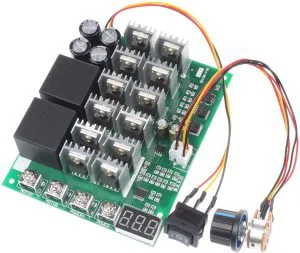

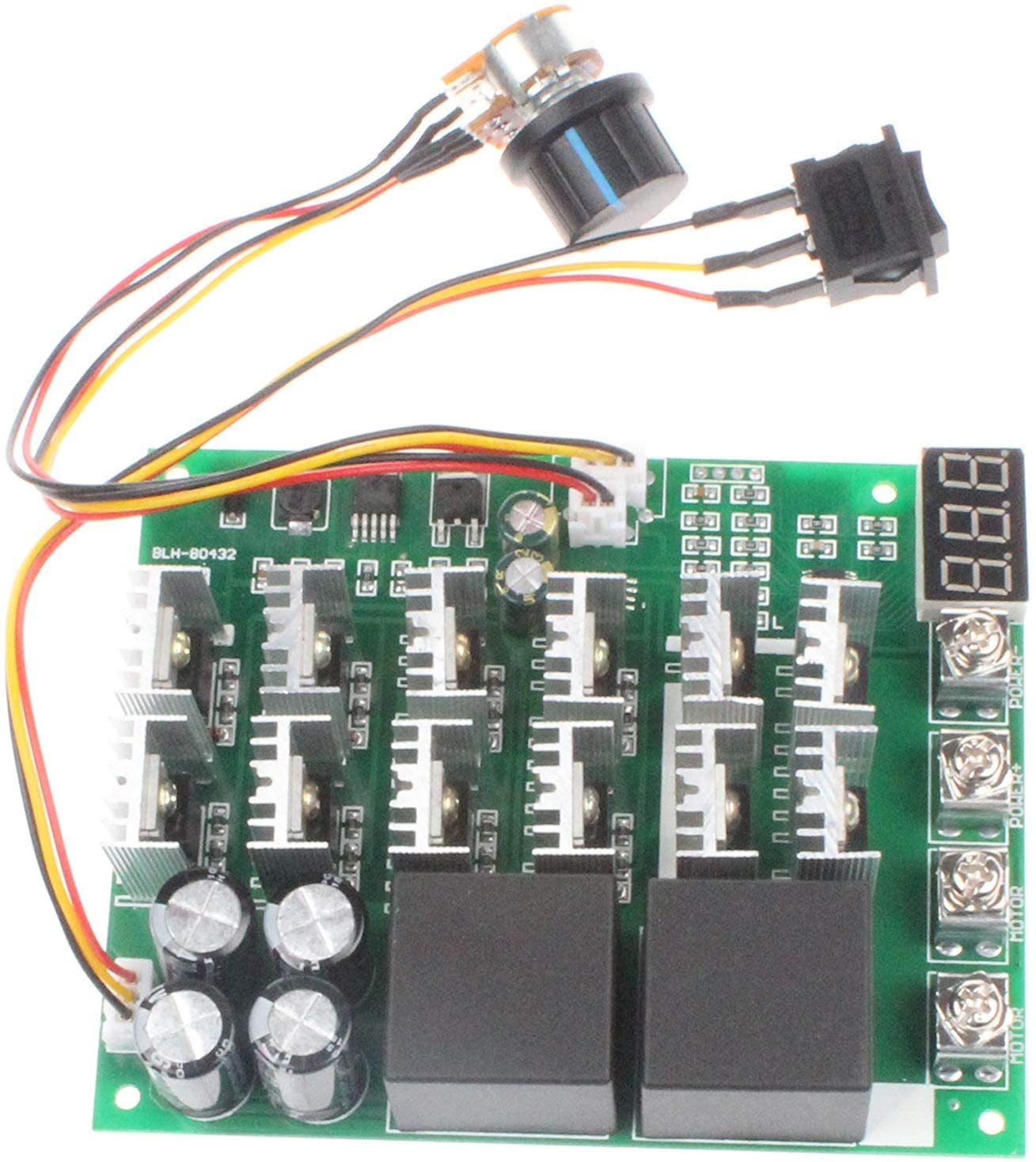

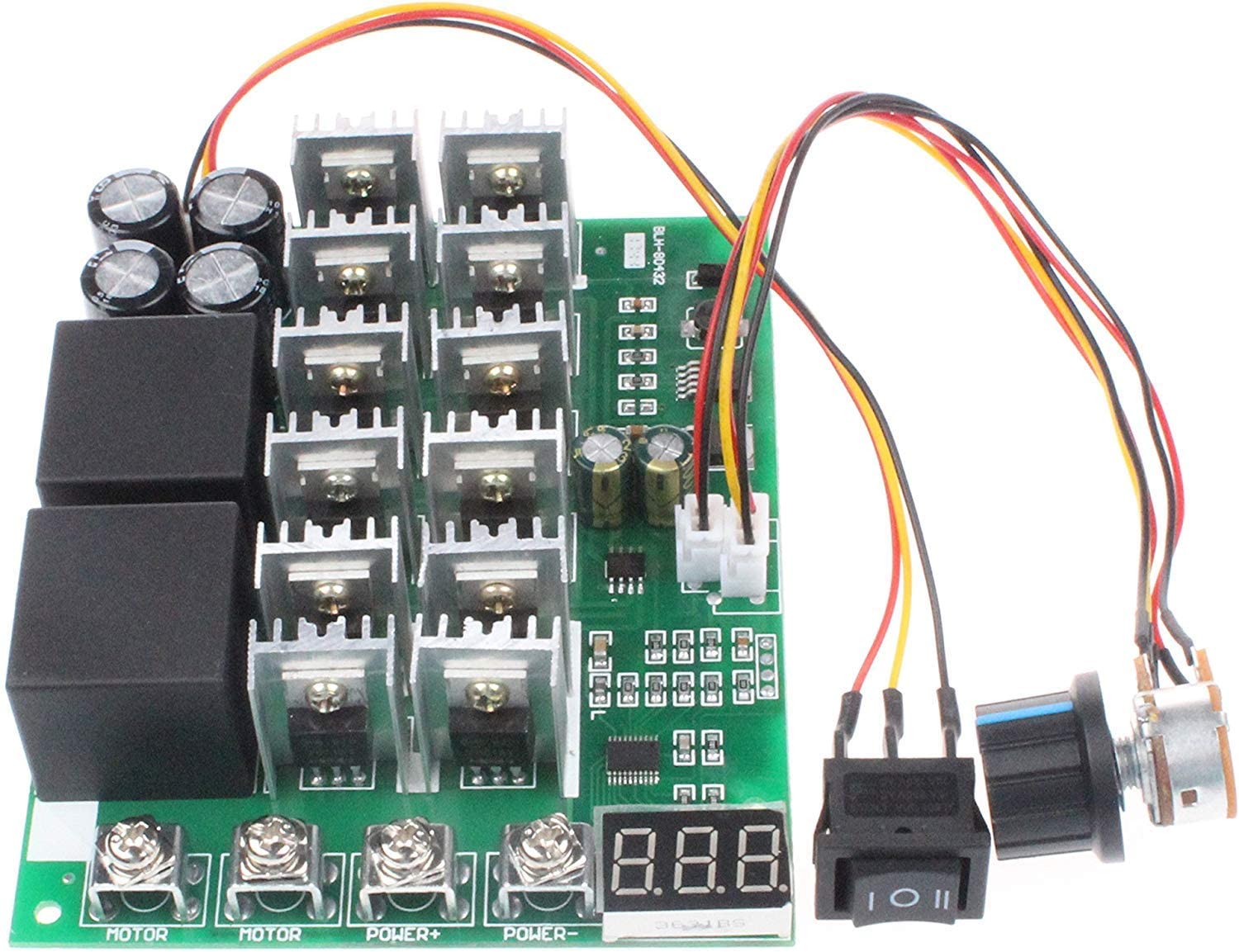

10V-55V 60A DC PWM Motor Speed Controller 12V 24V 36V 48V Digital Display 100A Max Brush DC Motor Controller – Third gear Forward Reverse Stop is a  60A high-power PWM DC motor speed controller works with forward reverse and stop control with display showing voltage. It is having  maximum power of 3000W SCM drive motor controller module.

Features:

• With forward, reverse bidirectional toggle switch.
• The motor speed controller makes it possible to control the speed of the motor and the direction of rotation.
• Speed type: flow control
• Output Voltage: Load Linear
• Input Current: require large than the motor operating current
• Output Current: determine load size
• Speed Mode: ON OFF linear potentiometer 270 degrees
• Terminal Type: Pressure riveting line terminal

Specification:

• Input Voltage: DC10-55V
• Continuous Current: 60A within
• Maximum current: 100A
• Maximum Power: 3300W
• Speed Range: 0-100%
• Operating Frequency: 15KHZ
• Length (mm): 130
• Width (mm): 98
• Height (mm): 40
• Weight (gm): 300

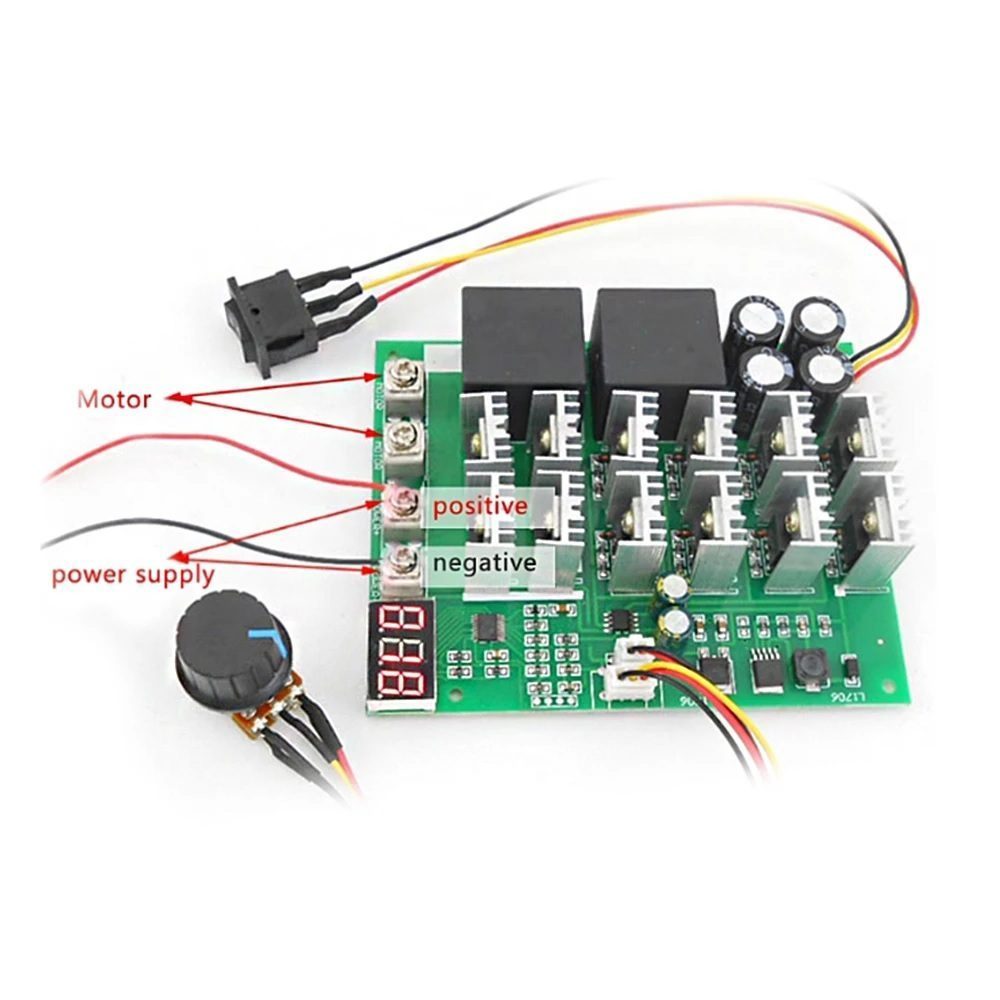

Input Wiring NOTE:

• Input voltage and motor voltage must be equal.
• DC input voltage must be.
• Input polarity have to make clear.

Package Includes:

• 1 x 60A High power PWM DC motor  12V / 24V / 36V / 48V DC 10-55V Maximum power 3000W SCM drive motor controller module
