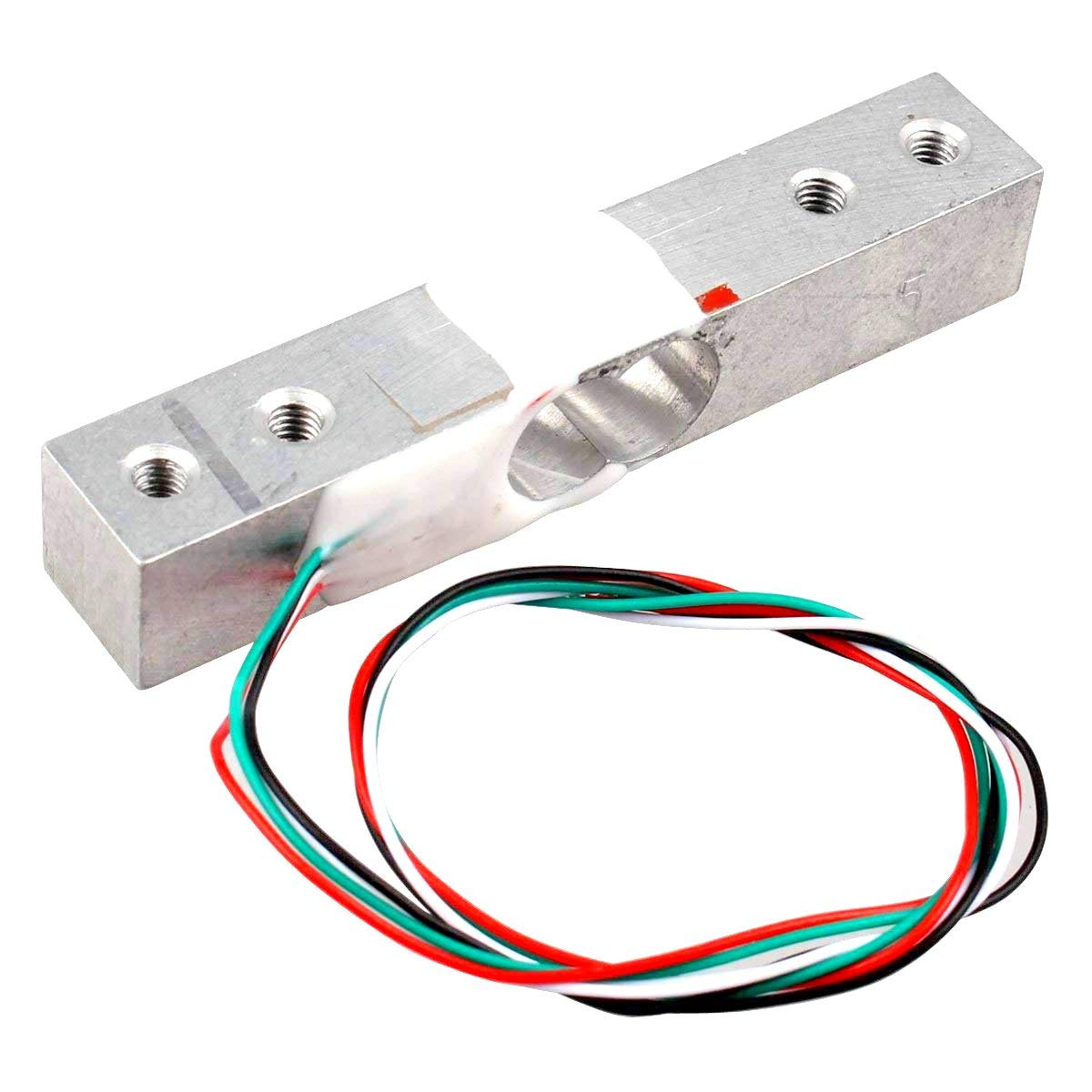

Load Cell Sensor 1Kg for Electronic Kitchen Scale

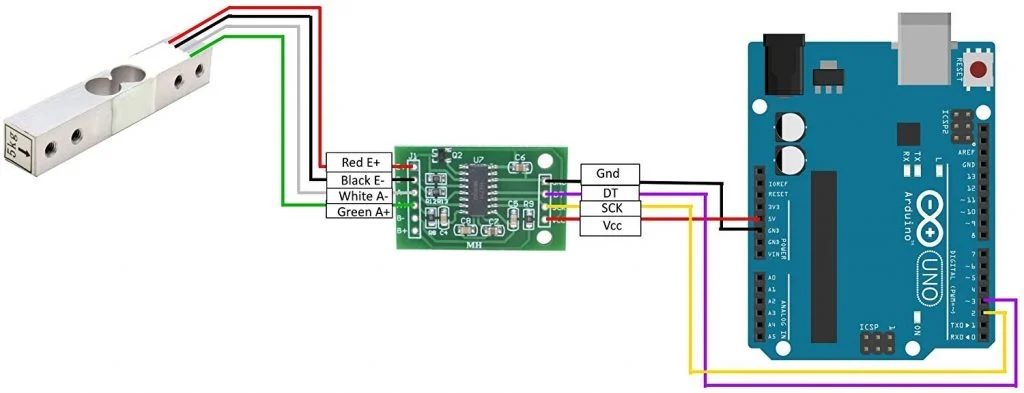

Load Cell Sensor 1Kg for Electronic Kitchen Scale is a standard load cell for measuring weight upto 1 Kg. The output of the load cell is in millivolts and cannot be directly measured by a microcontroller. So an ADC with high resolution or an instrumentation amplifier is required to make the output of the load cell readable to a microcontroller.

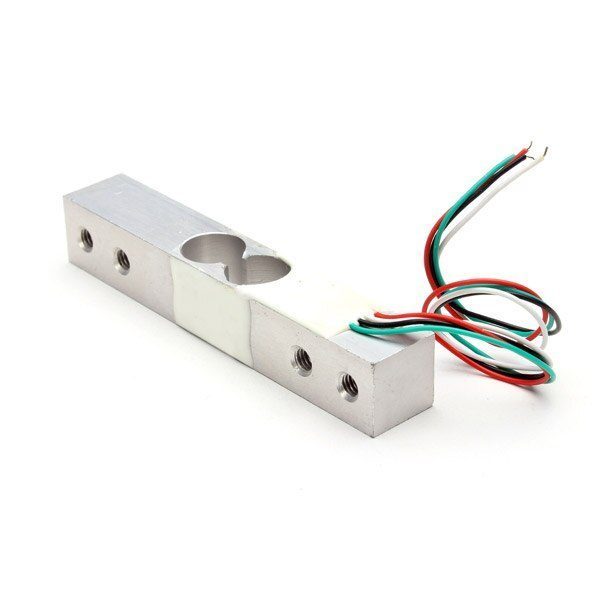

With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface. This straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 1KG of weight.

Specifications:

• Material: Aluminium
• Weighing Range: 0~1kg
• Rated Output: 1.0 ± 0.1mV / V
• Non Linear Output: ± 0.03% F.S
• Input Impedance: 1066 ± 10% Ω
• Output Impedance: 1000 ± 10% Ω
• Insulation Resistance: 2000 MΩ
• Hysteresis: 0.03% F.S
• Repeatability: 0.03% F.S
• Creep: (5 minutes) 0.05% F.S
• Zero Balance: ± 0.1 mV / V
• Cable Length: 18 cm
• Operating Temperature Range: -20 ~ 65°C
• Dimensions in mm (LxWxH): 75 x 12.6 x 12.6
• Weight (gm): 26 g

Package Includes:

• 1 x Weighing Load Cell Sensor 1Kg for Electronic Kitchen Scale
