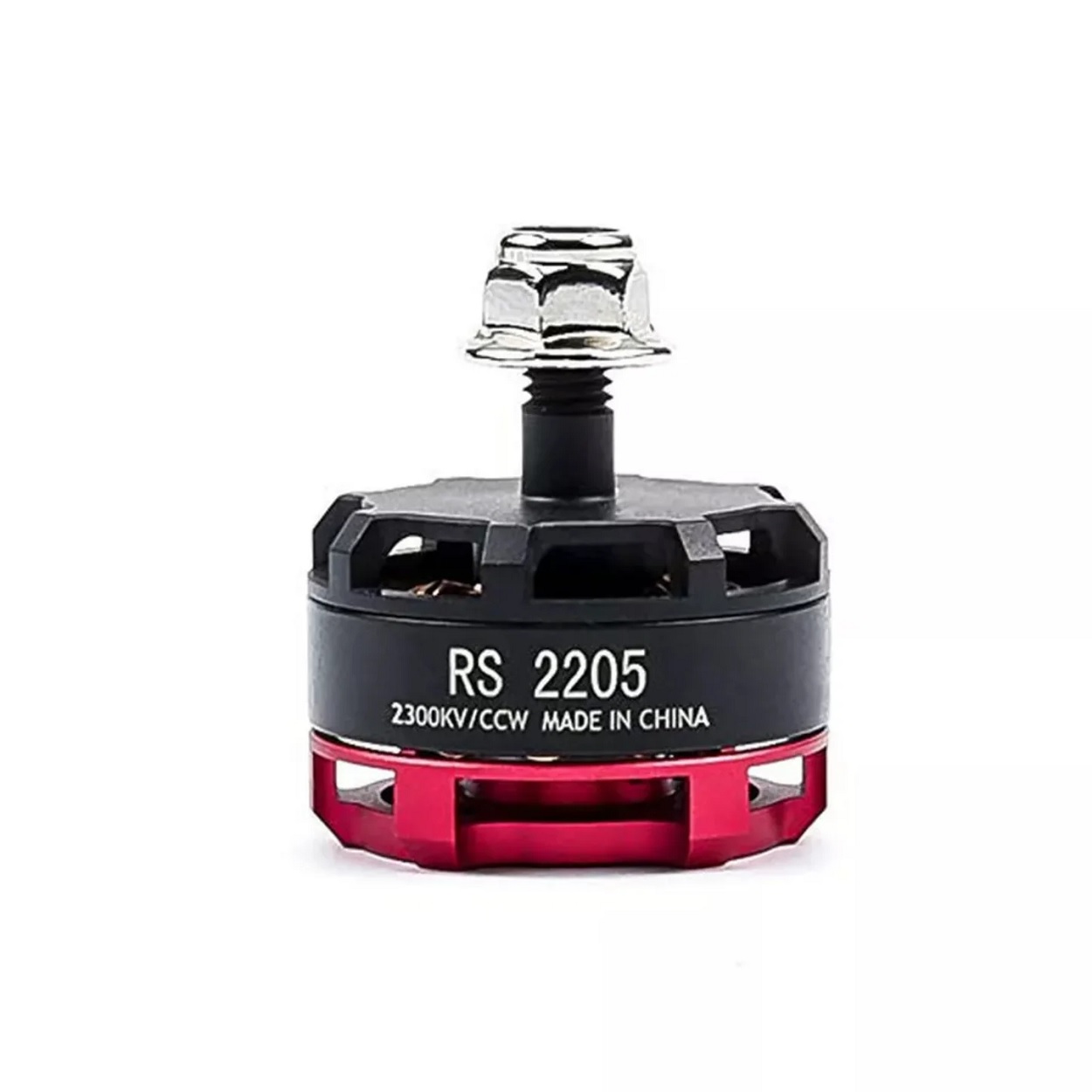

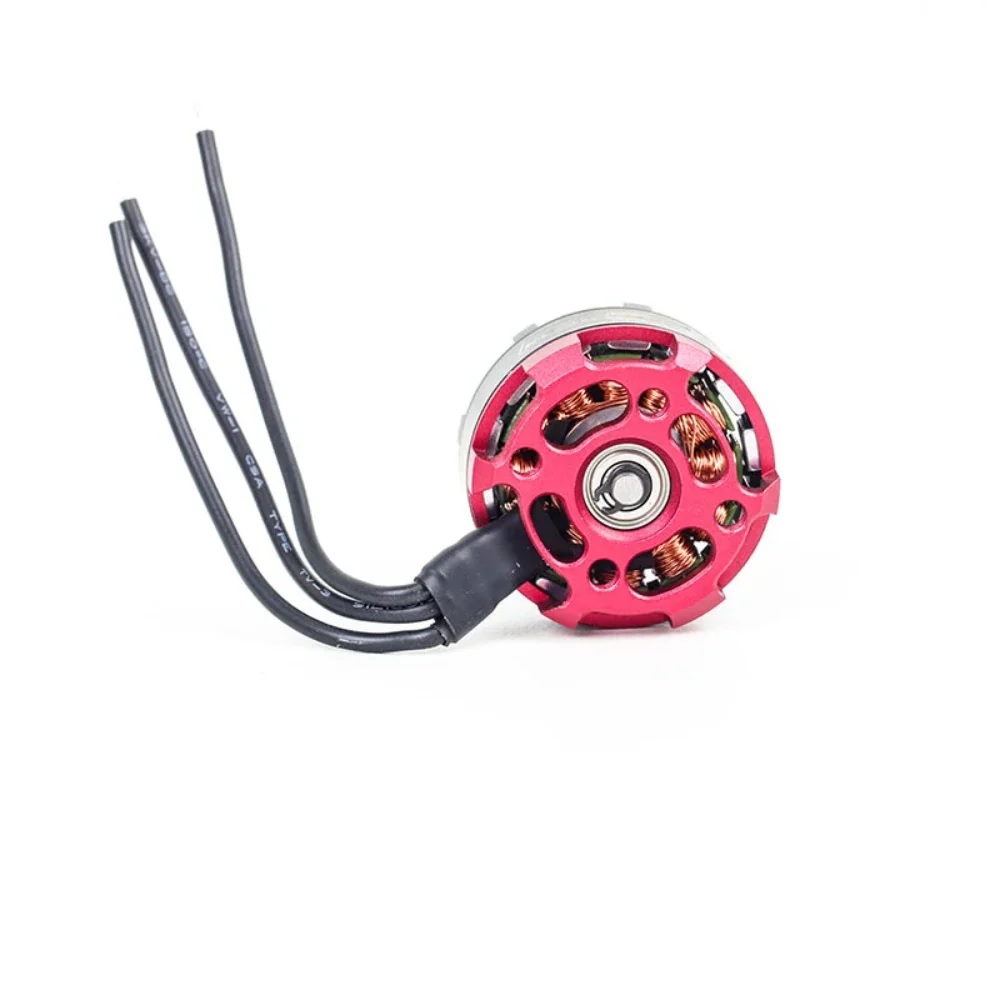

RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Drone Silver Cap (CCW Motor Rotation)

RS2205 2300KV Brushless DC Motor (CCW, Silver Cap) – High Thrust Racing Motor for QAV Drones!

Unlock next-level speed and agility with the RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Drone Silver Cap, engineered for high-performance racing drones like the QAV250 and QAV300. With a powerful 2300KV rating and counter clockwise (CCW) rotation, this motor delivers explosive thrust, rapid acceleration, and tight control – essential for competitive FPV racing.

This Brushless motor for Drone is featuring a self-cooling technique that can reduce the temperature of the motor up to 30% which in turn increases the service life of this BLDC Motor.

The cooling fins and high-grade N52 Neodymium Magnets make them unique over other Drone DC Motors. Also, the genuine Japanese NMB Bearings and enhanced Anti Off U Ring bring more quality to the working of this motor.

Features:

• ⚡ High-Speed 2300KV Motor: Optimized for aggressive throttle response and fast-paced flying
• 🧲 Powerful Neodymium Magnets: Enhances torque and motor efficiency under high loads
• 🔁 CCW Rotation (Silver Cap): Designed for counter clockwise rotation; pair with a matching CW motor for a balanced setup
• 🧱 Durable Build: CNC-machined aluminum housing for enhanced durability during crashes

Ideal For:

• FPV racing drones, QAV250/QAV300 builds, freestyle quadcopters, and high-performance DIY multirotors.

Specifications:

• Model: RS2205
• KV Rating: 2300KV
• Rotation Direction: Counter Clockwise (CCW) – Silver Cap
• Input Voltage: 3S–4S LiPo
• Maximum Thrust (gm): 1024
• Framework: 12N14P
• Recommended ESC: 20A–30A ESC (BLHeli or similar)
• Propeller Support: 5″ (e.g., 5045, 5048)
• Shaft Diameter (mm): 5
• Motor Diameter (mm): 27.9
• Mounting Hole Pattern: 16mm x 19mm (standard M3 screws)
• Weight: ~30g (with wires)

Note: Pair with the RS2205 2300KV CW Motor (Black Cap) for a complete quadcopter motor set.

Package Includes :

• 1 x RS2205 2300KV Brushless DC Motor for QAV250 QAV300 Racing Drone
• 1 x Mounting Screw set (Random colour Silver/Black)
