Single Beam Infrared Sensor for Automatic Doors

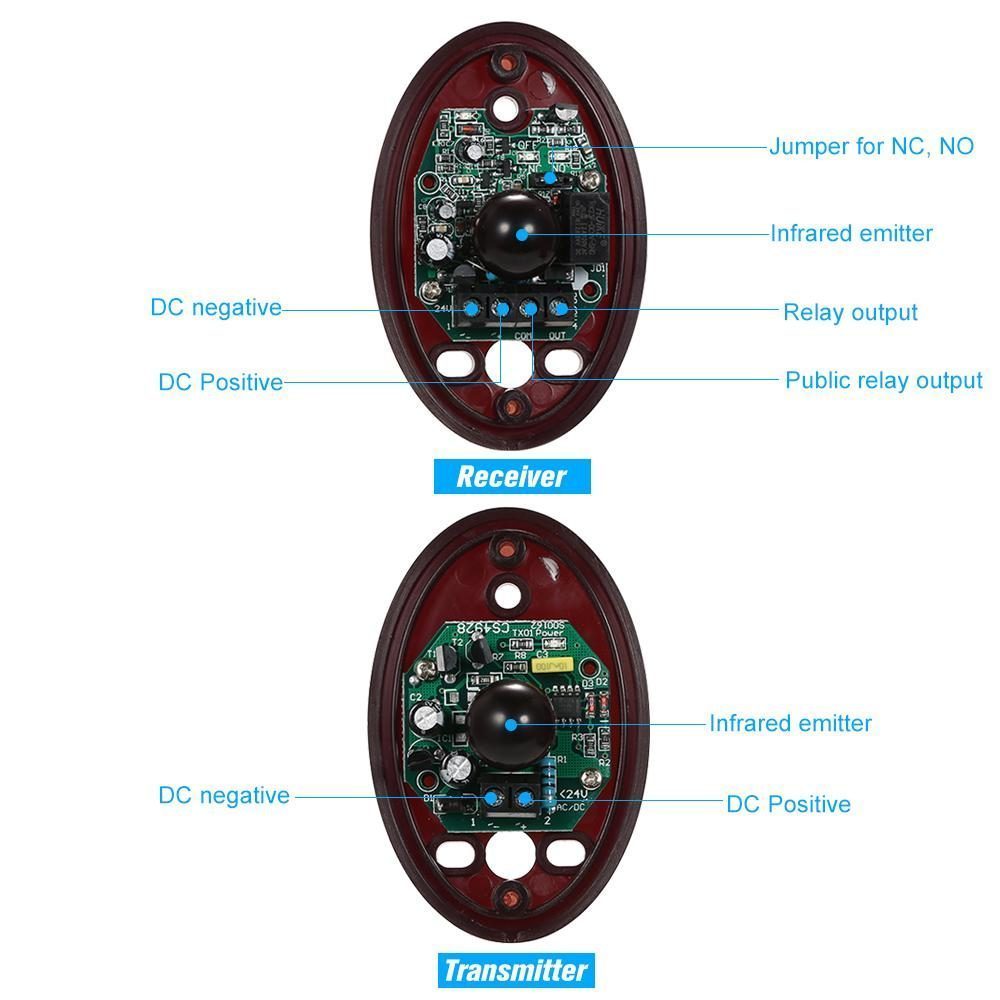

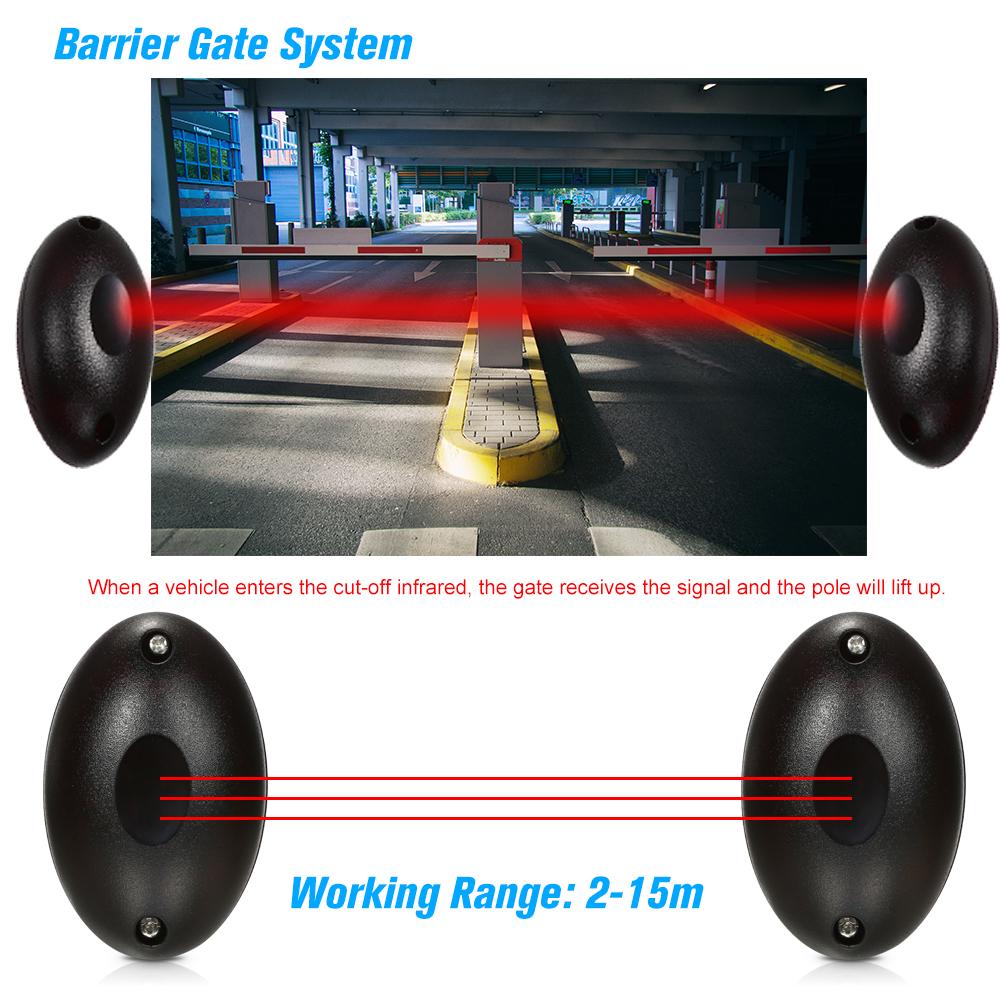

Single Beam Infrared Sensor for Automatic Doors is an infrared sensor kit, which is used to automate the door opening and closing at any place. The sensor comes in two parts a transmitter and a receiver. The sensor works on the principle of infrared radiation that means if the infrared beam from the transmitter is broken then the receiver will activate the output.

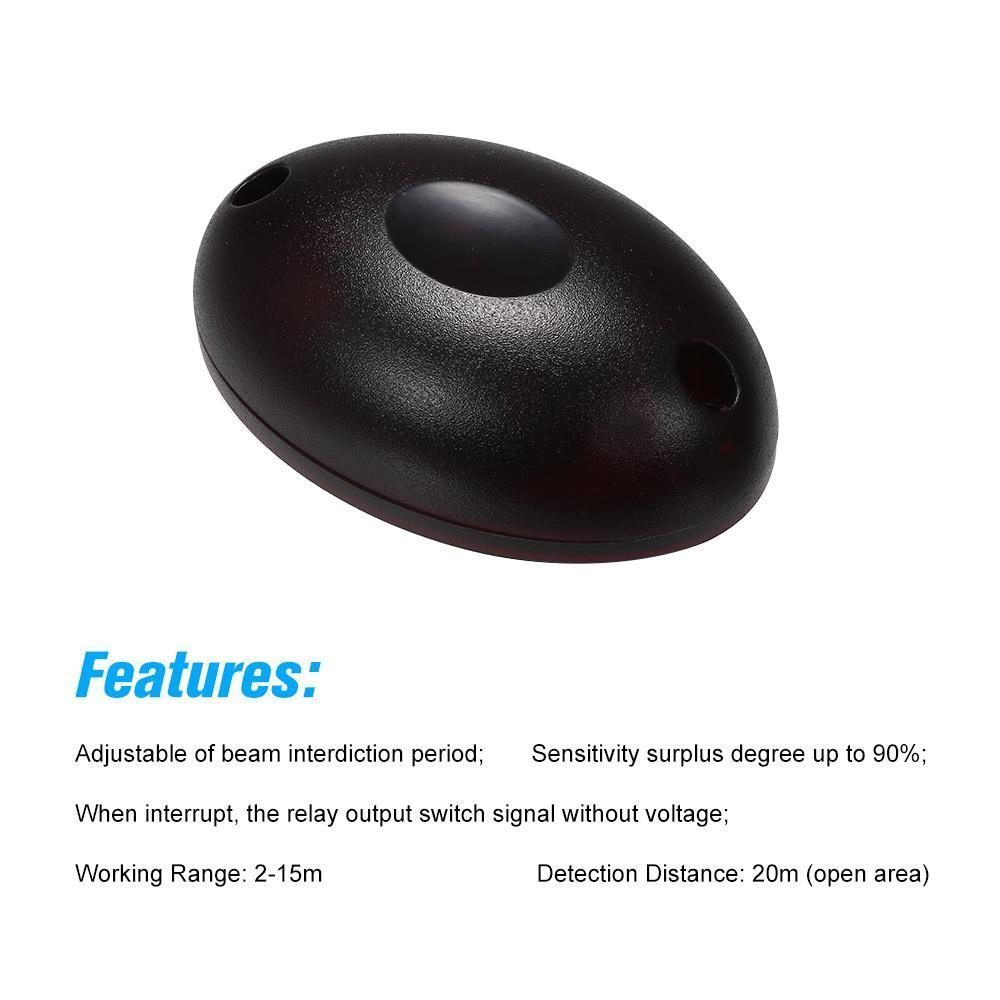

Features:

• High-Quality Enclosure to Protect the Sensor
• Works On Infrared Technology
• Can Work in Weather Conditions Like Fog, Rain, Dust, etc.
• Easy to Install

Specifications:

• Operating Voltage (VDC): 12 ~ 24
• Operating Distance Range (Meter): 20
• Wavelength (nm): 940
• Operating Temperature (°C): -20 to 70
• Relay Capacity: 1A@30V

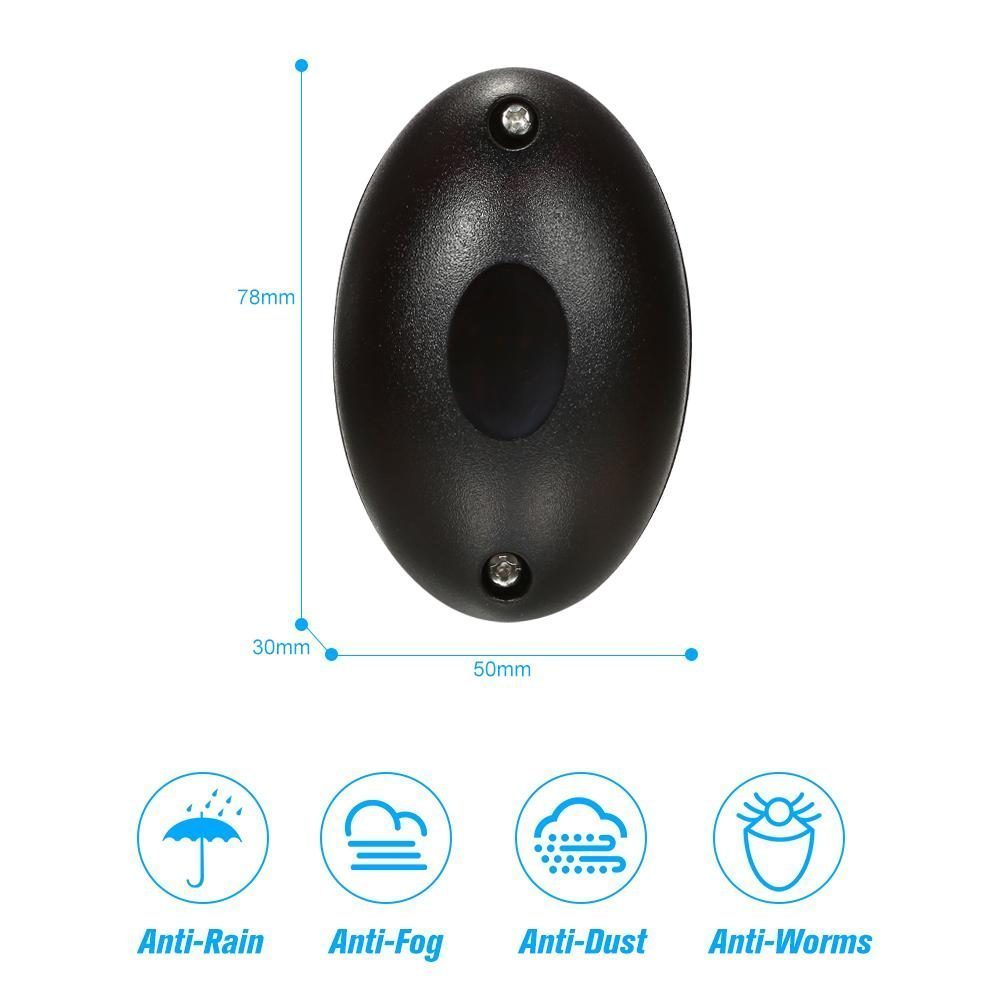

• Length (mm): 76
• Width (mm): 49.2
• Height (mm): 21.6
• Weight (gm): 34

Package Includes:

• 1 x Single Beam Safety Sensor for Automatic Doors
• 1 x Pack of mounting hardware
