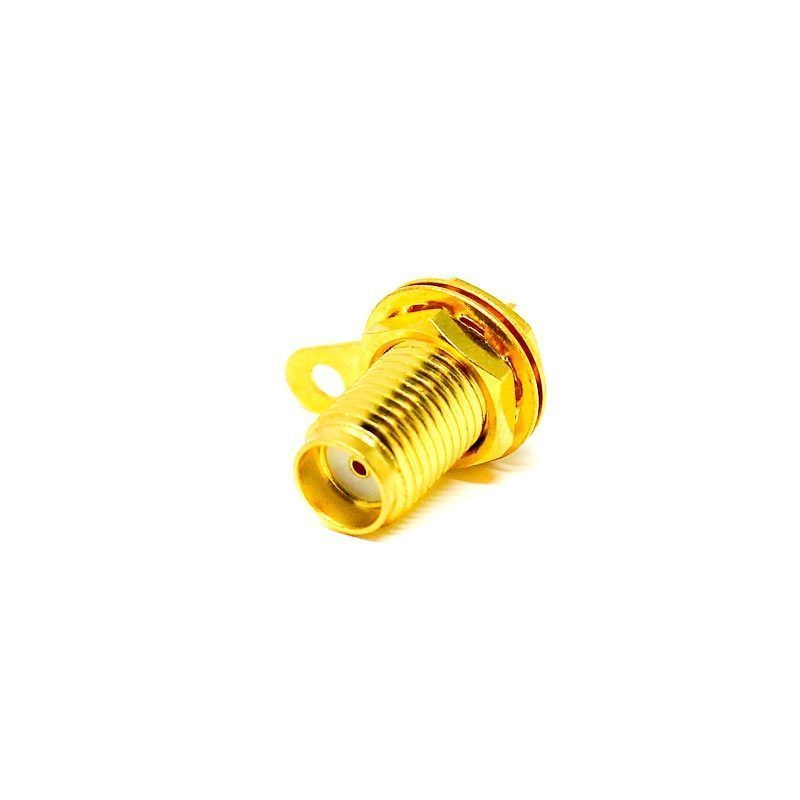

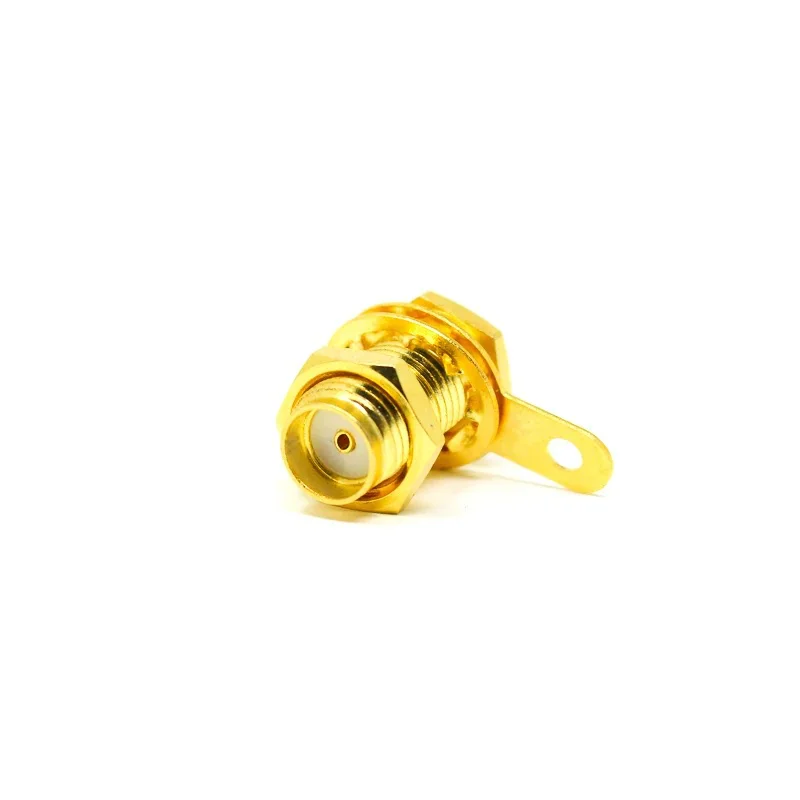

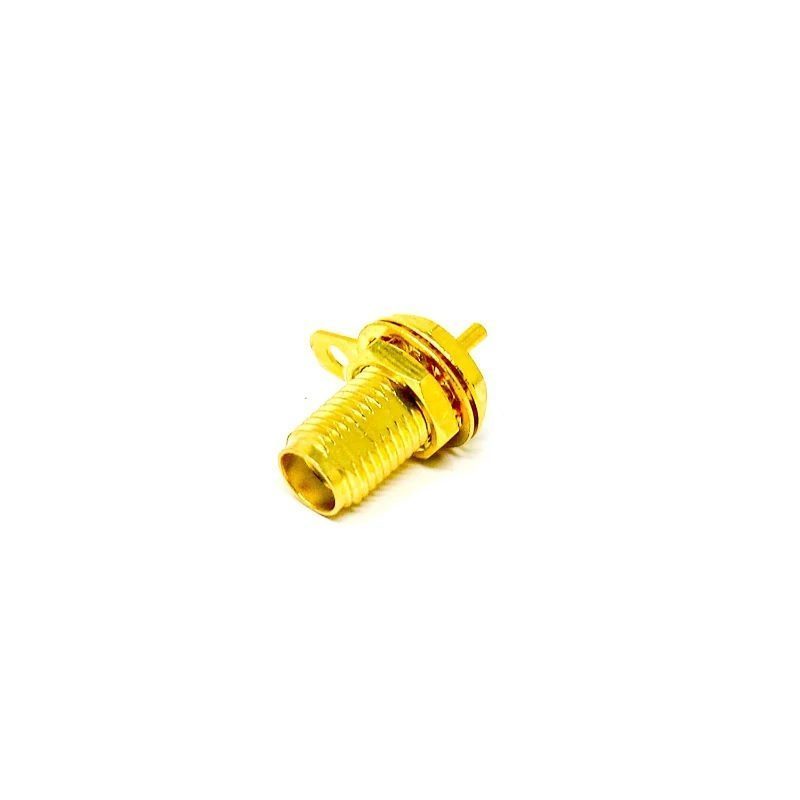

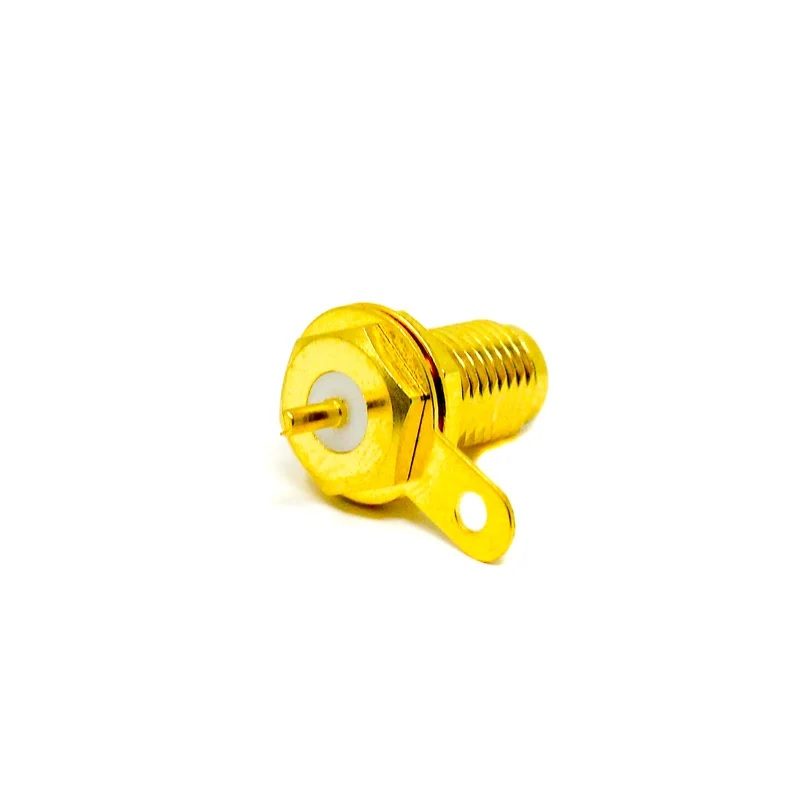

SMA Female Straight Connector Solder Type for Cable & Panel Mount
grade
Be the first to review
SKU: ANIL1959
content_copy
Brand:
Generic / Other
₹62.00
(Incl. 18.00% GST)
Excl. GST: ₹52.54
In Stock (5 units ready to dispatch from Ahmedabad Hub)
receipt_long
GST Invoice with ITC Claim
inventory
Wholesale & Volume Pricing
Click tier to auto-select
1 – 4 pcs
₹62.00
Regular
5 – 9 pcs
₹58.90
Save 5%
10+ pcs
₹55.80
Save 10%
Qty
pin_drop
Check Delivery & Shipping SLA
Free Shipping > ₹2,000
local_shipping
Dispatches in 24h
From Ahmedabad Hub
verified
100% Genuine Part
Tested & Quality Checked
receipt_long
GST B2B Invoice
Input Tax Credit Eligible
support_agent
7-Day Support
Easy Defect Replacement
memory Technical Parameters & Datasheet Summary
SKU: ANIL1959
Component Title
SMA Female Straight Connector Solder Type for Cable & Panel Mount
Part Number / SKU
ANIL1959
Brand / Manufacturer
Generic / Other
Category & Taxonomy
SMA Connectors
Applicable GST Rate
18.00% GST (Official GSTIN Invoice Provided with Input Tax Credit)
Packaging Protection
Anti-Static Moisture Barrier Shielding Bag (ESD Protected)
Dispatch Hub
Dispatches within 24 Hours from Ahmedabad Hub, Gujarat, India
Datasheet & Queries?
chat
Ask an Application Engineer on WhatsApp
SMA Female Straight Connector Solder Type for Cable & Panel Mount are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for enviro...
SMA Female Straight Connector Solder Type for Cable & Panel Mount are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.
A range of standard items is listed in the category RF Connectors. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs. Contact us for any other specific requirements.
Features:
- SMA Connector,Jack,Straight,50ohm,solder,Bulkhead-front Mount, Gold Plating, Brass
- Excellent electrical performance up to 18GHz with low reflection;
- Thread type coupling mechanism ensure small loss and high security in compact design;
Specifications:
- Impedance：50 ohm
- Frequency Range: 0~6 GHz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage:1000 V rms min for RG142, RG405
- 750 V rms min. for RG316, RG402
- 500v rms min. for RG178
- Working Voltage: 500 V rms max. for RG142, RG405
- 375 V rms max. for RG316, RG402
- 170 V rms max. for RG178
- Center Contact Resistance ≦ 6.0 mΩ (Milliohms max.)
- Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
- Insultation Resistance ≧ 5 x 10³ mΩ (Megohms min.)

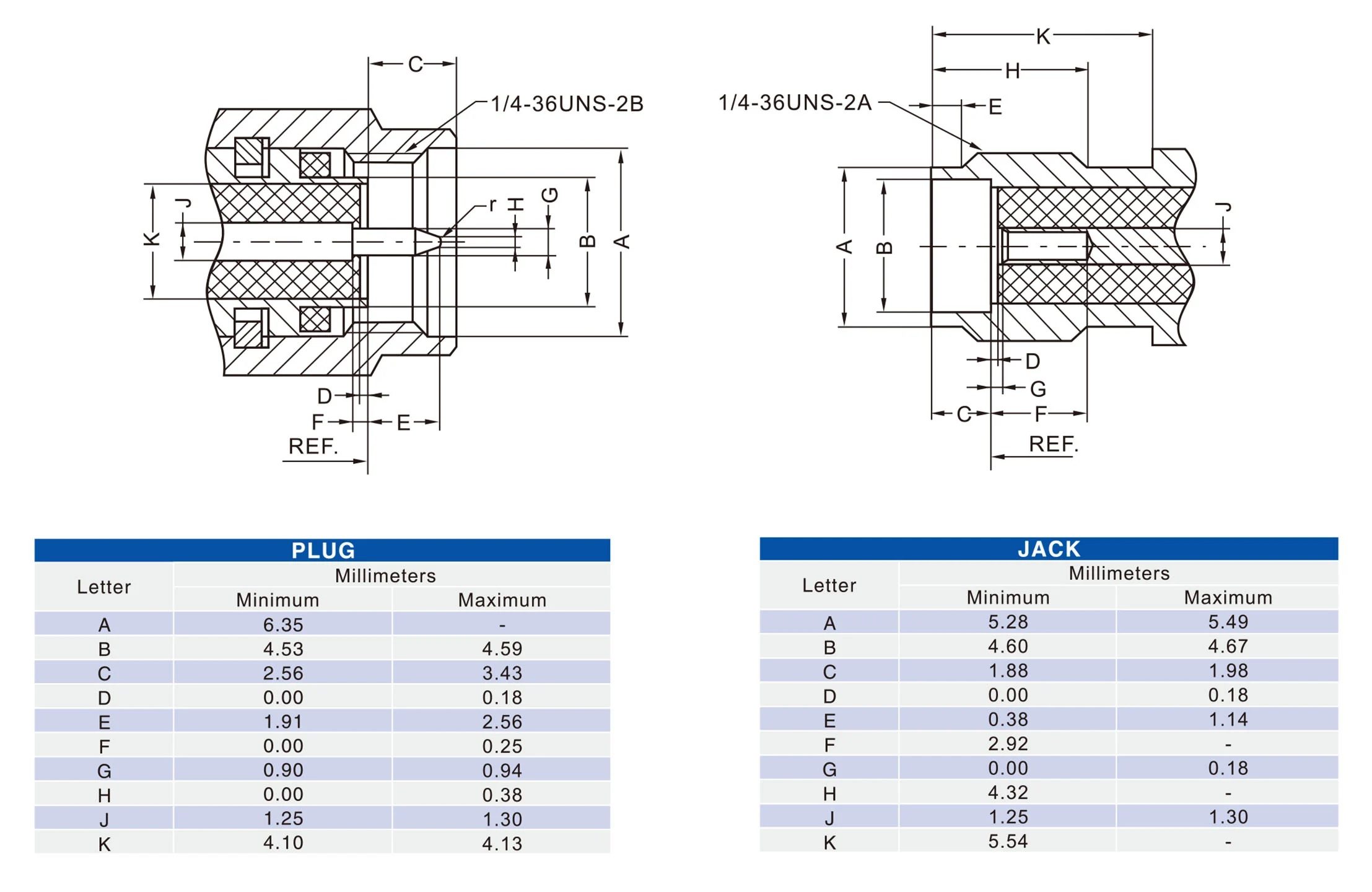

Mechanical Characteristics
- Coupling: 1/4-36 thread
- Contact Retention: 15 in-lbs min.
- Coupling nut torque: 30 in-lbs. min.
- Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Temperature Range: -55°C ~ +155°C
- Vibration: MIL-STD-202 Meth.204
- Corrosion resistance: MIL-STD-202 Meth. 10
Application:
- Aerospace and Defense: Hand-held field Device and Instrumentation
- Medical: Instrumentation
- Commercial Vehicle: Bluetooth and GPS
- Telecommunications: Wireless Base Stations, Cellular Mobile System
- Data/Communications:Wifi, WiMAX
- Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

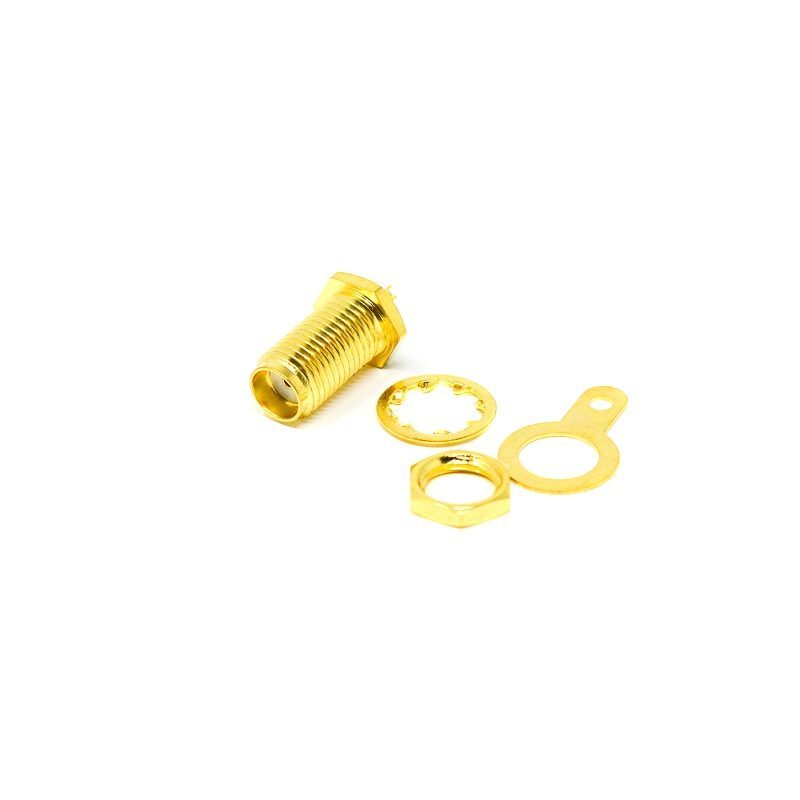

Package Includes:
- 1 x SMA Female Straight Connector Solder Type
