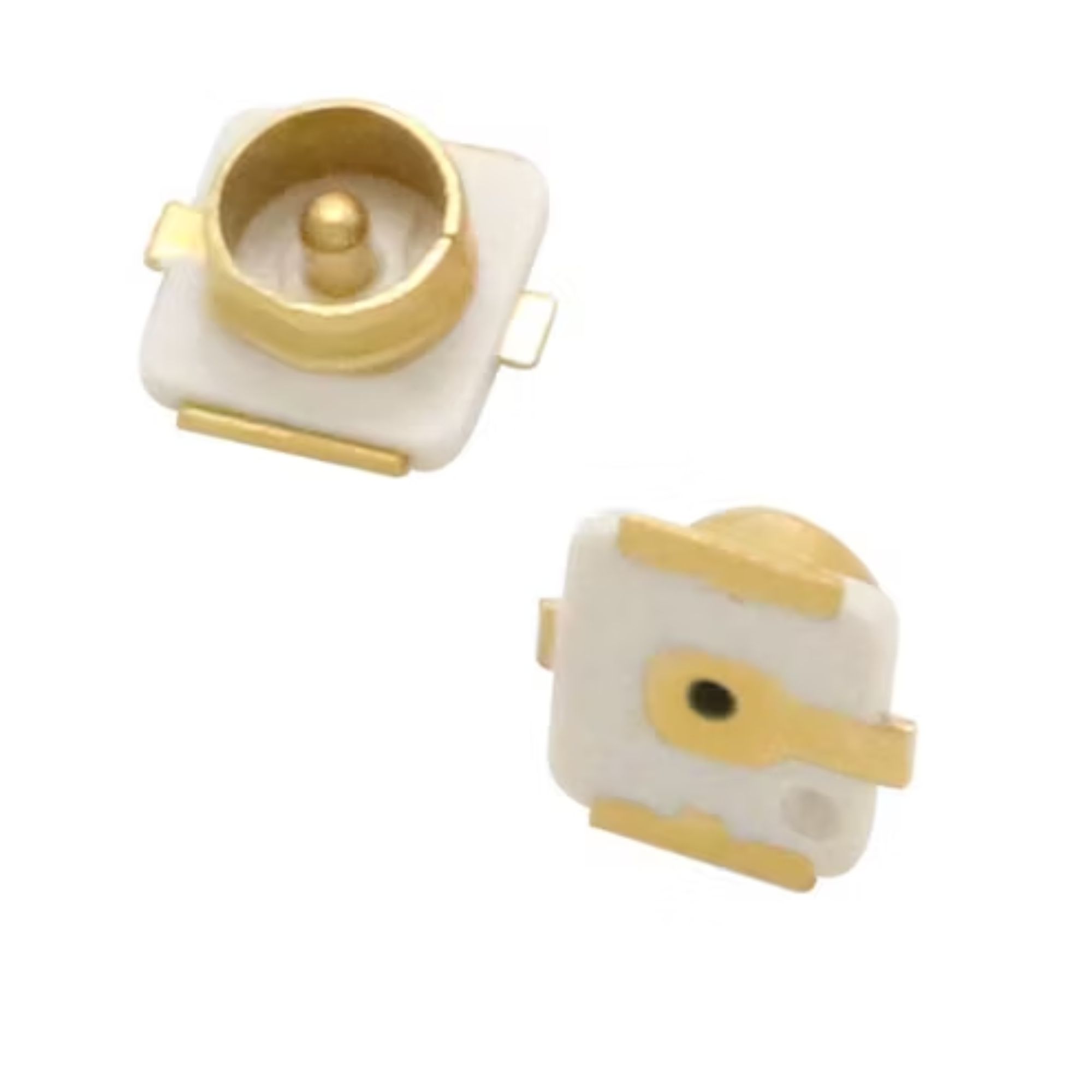

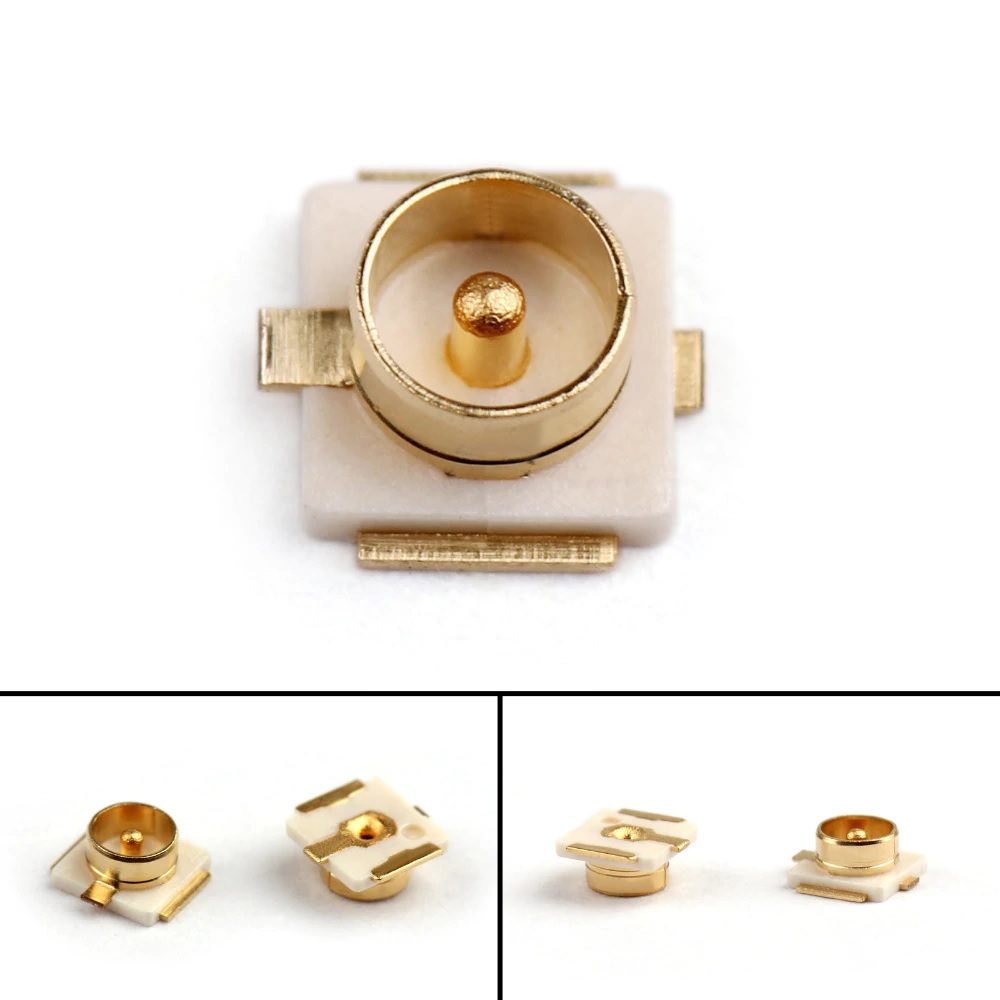

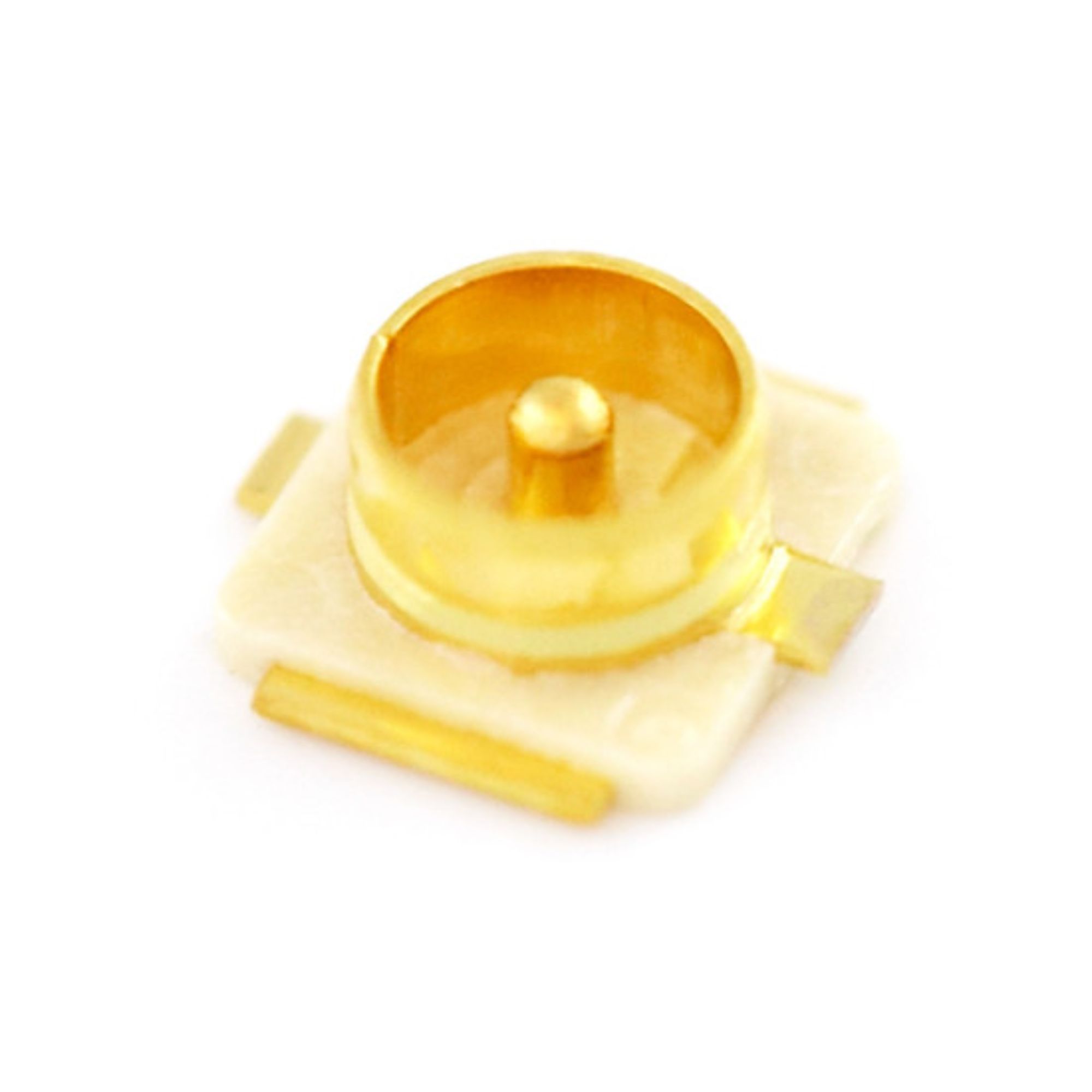

Ufl/ Ipex/ Mhf1 Rf Connector connector Male SMD

The Ufl/ Ipex/ Mhf1 Rf Connector connector Male SMD is suitable for PCB layouts that require UFL antenna connections. This UFL Connector connects an Antenna to a communication device. Its also called IPEX connector. This is male type ufl connector with SMT mounting. It is generally used in antenna connection for Wifi, GSM, GPS etc. modules.

Features:

• High quality
• Low cost
• Interconnects

Specifications :

• Main material: copper, the shell plating
• Frequency range: 0 to 4 GHZ
• The characteristic impedance: 50 Ω
• The insulation resistance: 500 m Ω Min
• Withstand voltage: 200 v AC
• Standing wave ratio: 1.3 Max (0 to 3 GHZ 1.2 Max)
• Working temperature: – 40 + 85 ° C
• Frequency (MHz): 0 – 6.0 GHz
• Working Voltage (V): 200 V
• Insulation Resistance: >500 MOhm
• Contact Resistance: 10mA Max
• VSWR: < 1.4
• Body, Metal Parts: Brass with Gold Plated
• Centre Contact: Phosphor Bronze with Gold Plated
• Insulators: PTFE
• Dimensions (L X H X W) : 2.5 X 2.5 X 1.9 mm

Package includes:

• 1 X UFL connector male SMD
