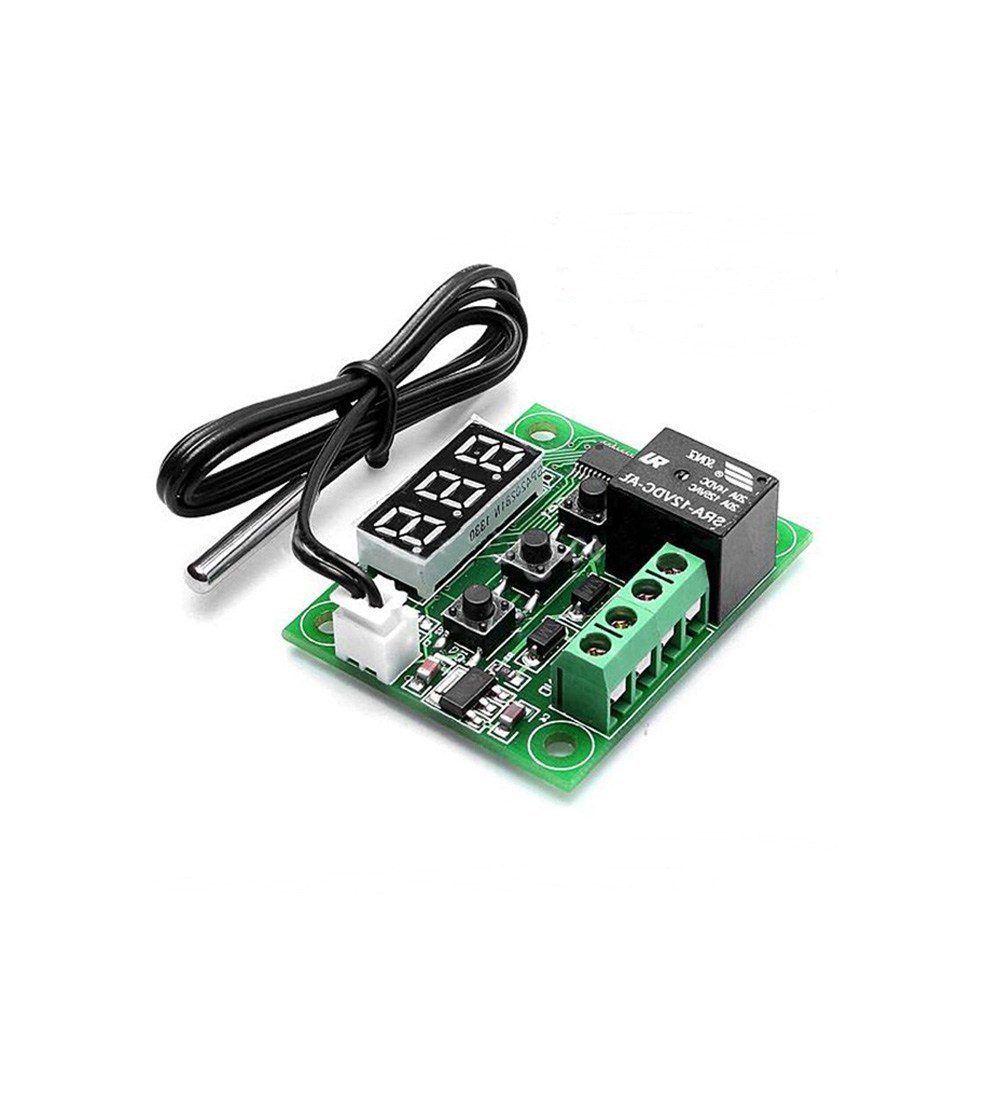

W1209 12V Digital Temperature Controller Module with Display and NTC Temp Sensor

W1209 12V Digital Temperature Controller Module with Display and NTC Temp Sensor is an incredibly low cost yet highly functional thermostat controller. With this module, you can intelligently control power to most types of electrical device based on the temperature sensed by high accuracy NTC digital temperature sensor.

Although this module has an embedded microcontroller no programming knowledge is required. 3 tactile switches allow for configuring various parameters including on & off trigger temperatures. The on board relay can switch up to a maximum of 240V AC at 5A or 14V DC at 10A. The current temperature is displayed in degrees Centigrade via its 3 digit seven segment display and the current relay state by an on board LED.

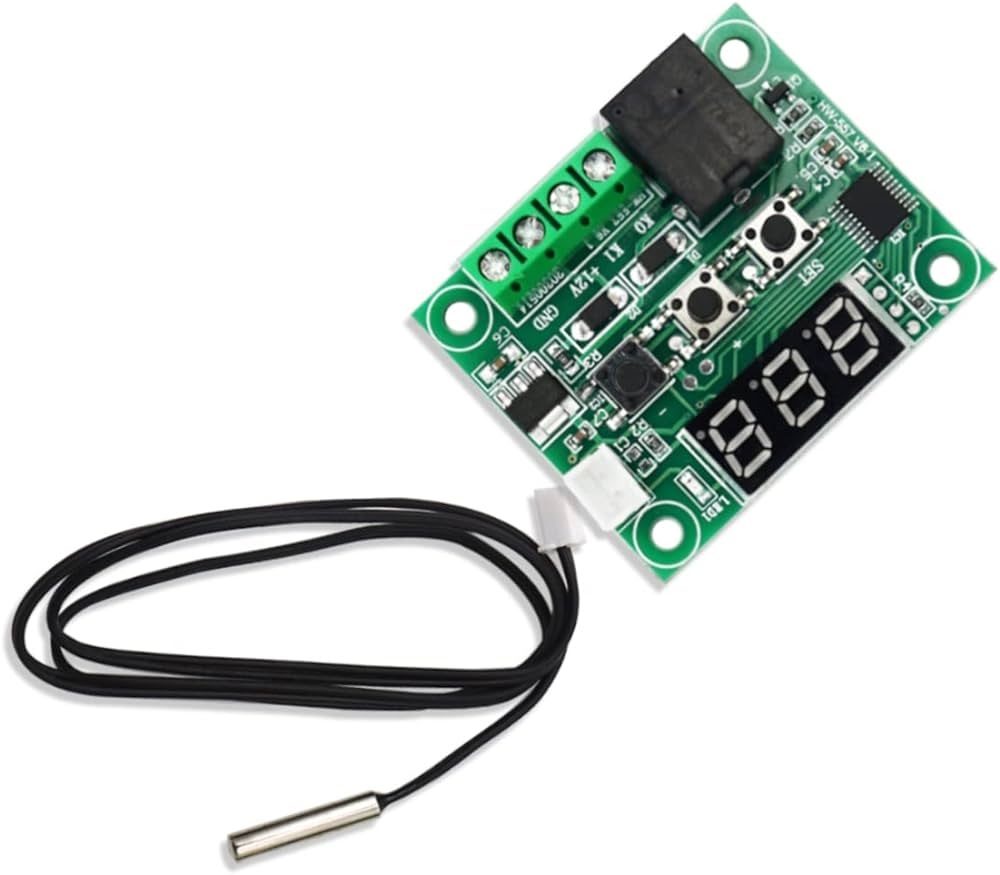

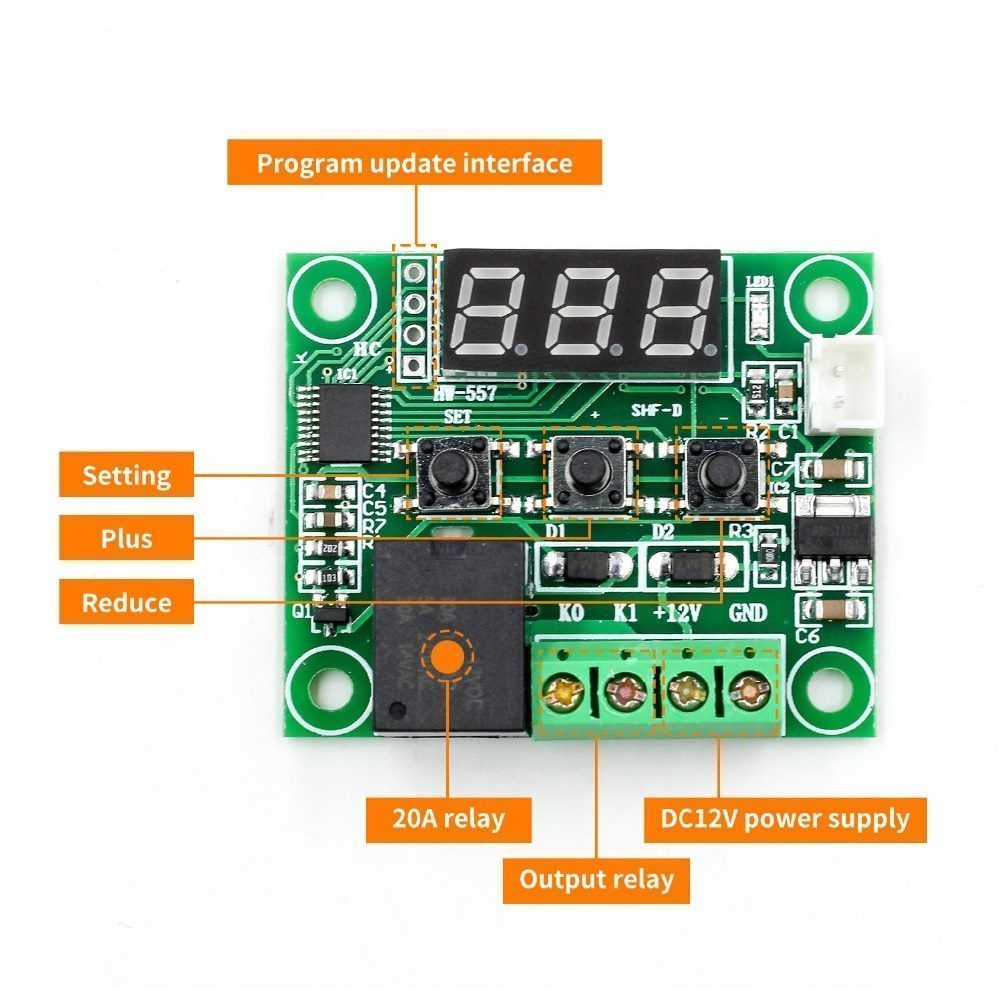

W1209 thermostat module has a temperature sensor, keys, LED display, relay and requires DC 12V power supply. It is an affordable, good quality thermostat controller.

Thermostats are devices that sense the temperature of a system so that the temperature is maintained at the desired set point or near to it. NTC temperature sensor allows the module to intelligently control varied electrical devices based on the temperature. NTC thermistor has a negative temperature coefficient, which means the resistance decreases with increasing temperature.

W1209 has an inbuilt embedded micro-controller, thus not much programming knowledge is required. The module consists of three switches to configure the various parameters including ON and OFF trigger temperatures. The relay can operate at voltages up to a maximum of 240V AC at 5A or 14V DC at 10A to power on.

The temperature is displayed in degree centigrade and with the help of 7-segment display and the relay, the state is displayed with the help of the LED present on the W1209 module.

Specification:

• Temperature Control Range(°C) : -50 to +110
• Resolution @-9.9°C to +99.9°C : 0.1°C
• Resolution @all temperatures : 1°C
• Accuracy : 0.1°C
• Refresh Rate(s) : 0.5
• Supply Voltage (V) : 12
• Measuring Inputs : NTC10K
• Cable Length : 0.5 Meter
• Output Type : 1 Channel Relay Output
• Capacity : 10A
• Power Consumption : Static Current: <=35mA, Current: <=65mA
• Humidity : 20-85%
• Length (mm) : 48
• Width (mm) : 40
• Height (mm) : 14
• Weight (gm) : 20

Settings Chart:

• Long press the “SET” button to activate the menu.
• Code Description Range Default Value
• P0 Heat C/H C
• P1 Backlash Set 0.1-15 2
• P2 Upper Limit 110 110
• P3 Lower Limit -50 -50
• P4 Correction -7.0 ~ 7.0 0
• P5 Delay Start Time 0-10 mins 0
• P6 High-Temperature Alarm 0-110 OFF
• Long pressing +- will reset all values to their default

Working:

Current temperature will be displayed on the module in degree Celsius by default. When switched to a different mode, inactivity for approximately 5 seconds would lead to restoring the value of the module to the default temperature display.

Setting Modes:

Trigger Temperature: Press “SET” button on the module and current temperature will be displayed on the screen. Using “+” and “-“button, one can set the temperature in 0.1 degrees (Celsius) increments. No activity for 2 seconds will result in setting and storing the trigger temperature and then the screen will display the current temperature.

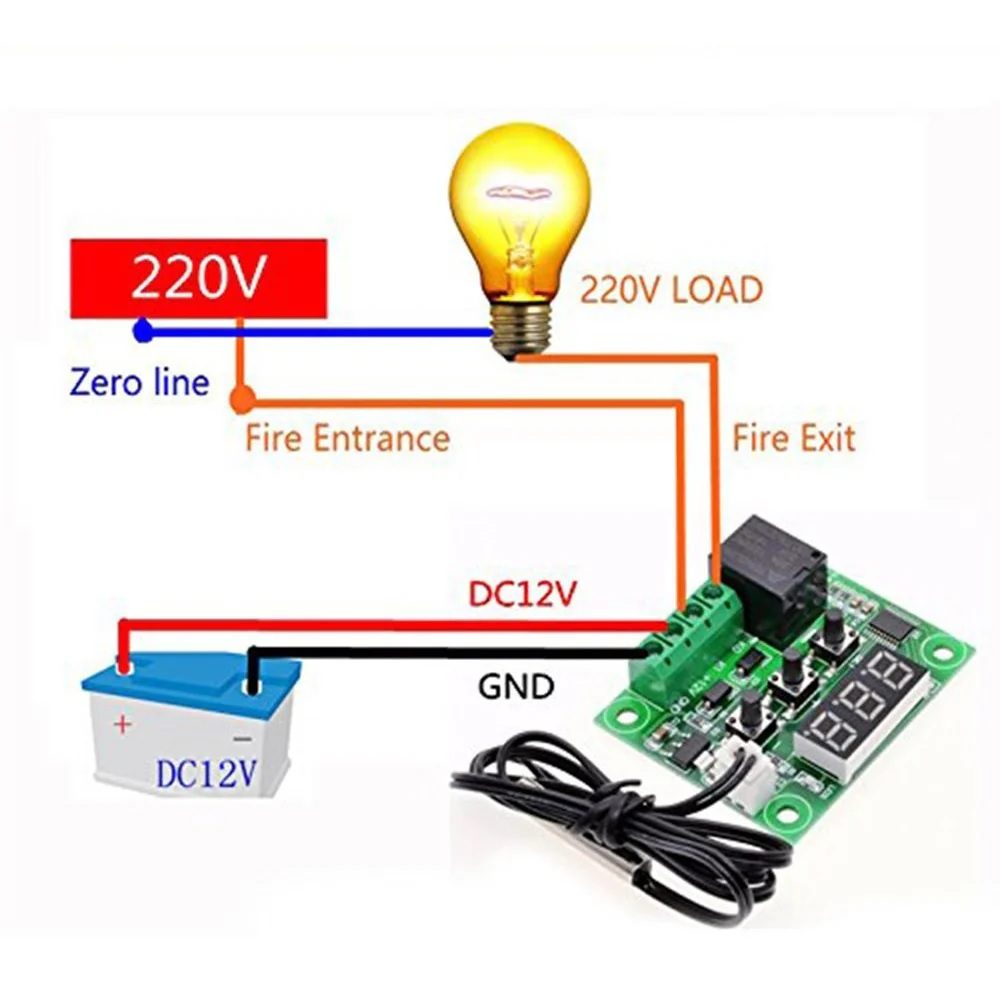

Application:

• To measure and display temperature
• To Turn any application ON/OFF based on temperature reading. (Both AC and DC)
• Example Project: A. Fire alarm system, B. Auto cut off Electric Water Heater

Package Includes:

• 1 x W1209 Temperature control switch with Temperature sensor and display
