XY-PWM DC 3.3-30V 1Hz-150kHz Digital Display Pulse PWM Signal Generator with Case
star
star
star
star
star
149
rating
Just for you!
SKU:
ANIL1351
MRP: Rs.
434.70
Rs.
362.25
(Incl. Tax)
Rs.
326.03 / pack of 1 = Rs.
326.03 per piece
Quantity

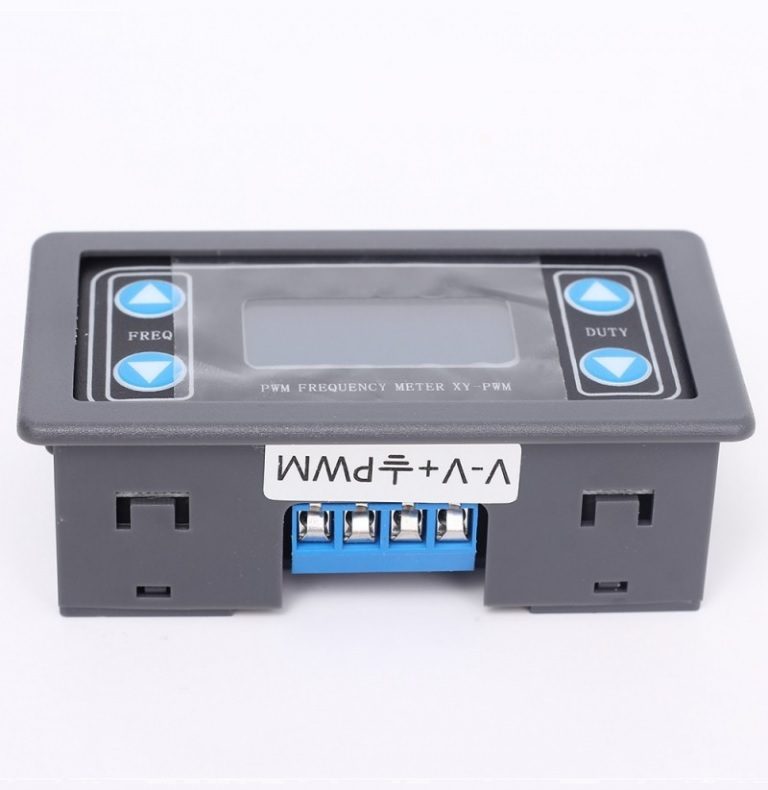

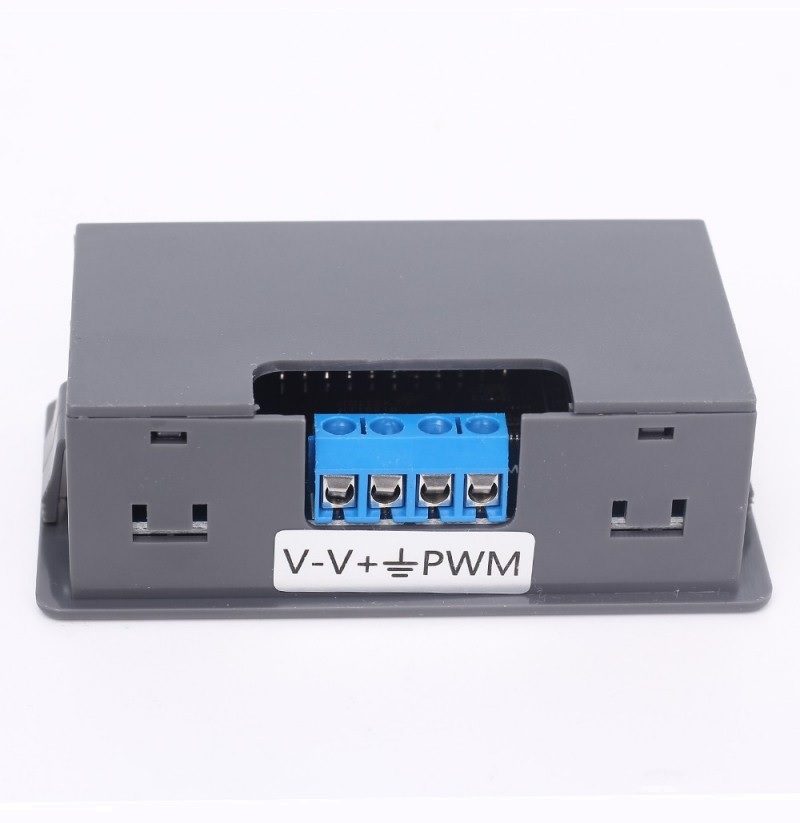

XY-PWM DC 3.3-30V 1Hz-150kHz Digital Display Pulse PWM Signal Generator with Case with Case is a PWM generator, which is housed in a protective shell. It can generate a PWM frequency from 1Hz to 150KHz. This device can be used where an accurate and reliable source of PWM is required.
Features:
- Bright LCD Display
- Supports UART
- Adjustable Frequency Output
- High Accuracy Detection
- Supporting Power-OFF Memory Function
- Supports Duty Cycle Adjustment
Specifications:
- Model: XY-PWM
- Microcontroller IC: N76E003AT20
- Operating Voltage (VDC): 3.3 ~ 30
- Frequency Range: 1Hz~150KHz
- Frequency Accuracy: 0.02
- Signal Load Capacity: output current can be around 5~30ma

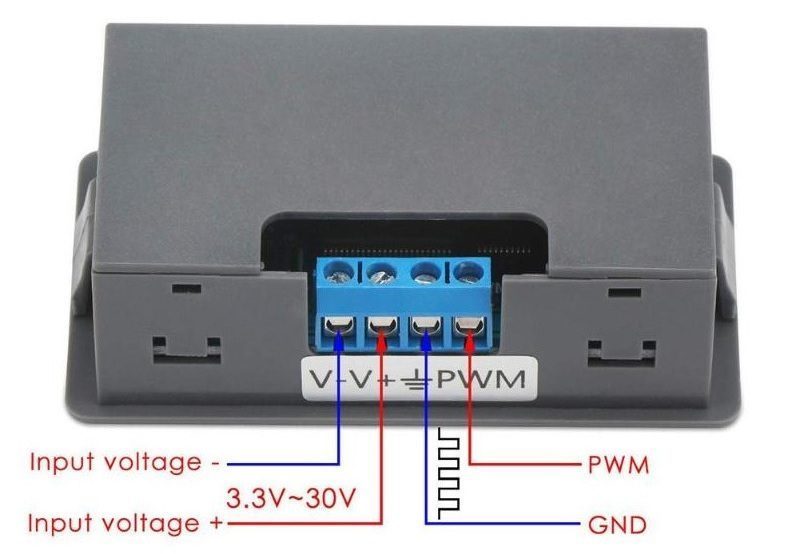

- Output Amplitude: PWM amplitude is equal to supply voltage
- Operating Temperature (°C): -20 to 70
- Length (mm): 79
- Width (mm): 43
- Height (mm): 27
- Weight (gm): 36
Package Includes:
- 1 x Digital PWM Generator with Display
