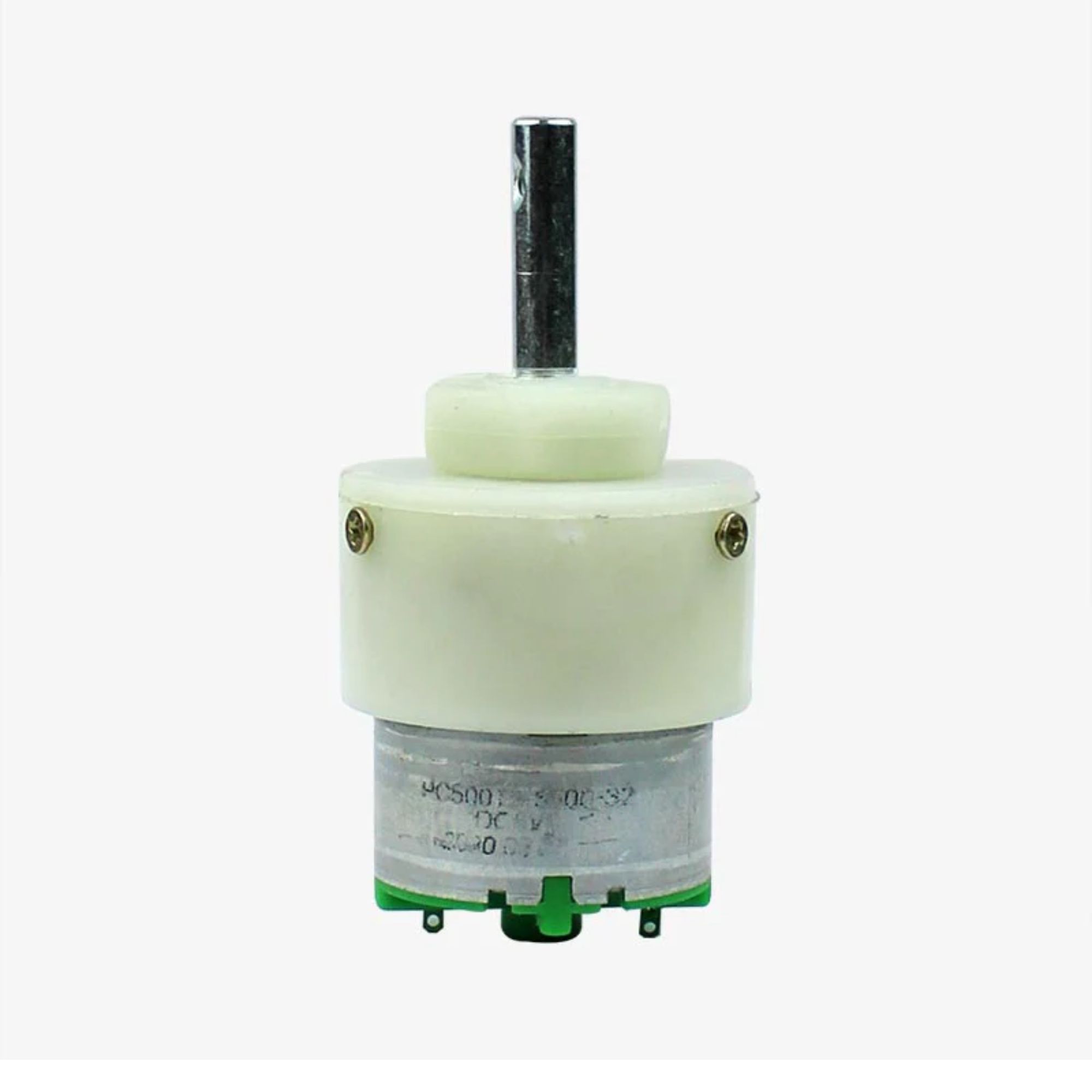

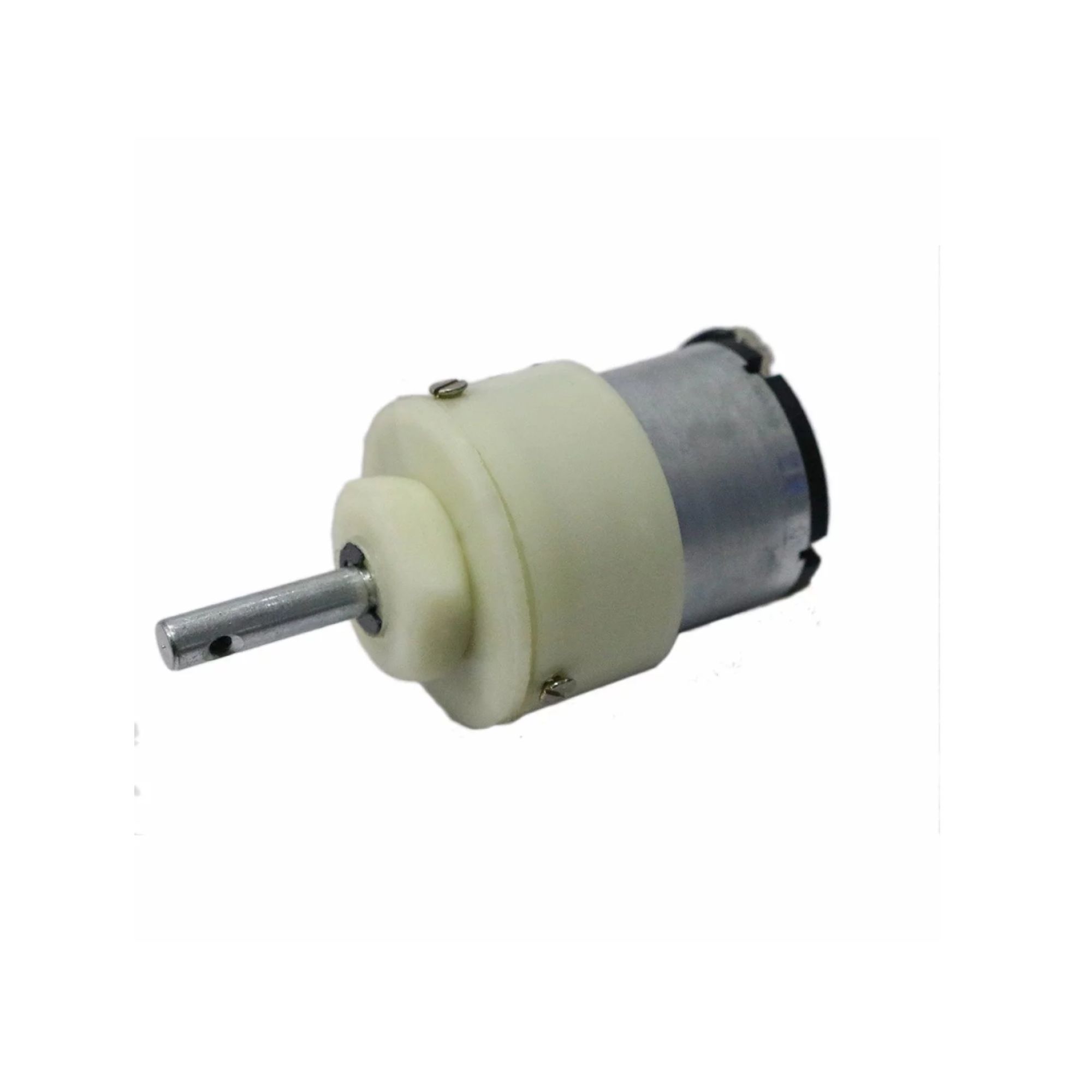

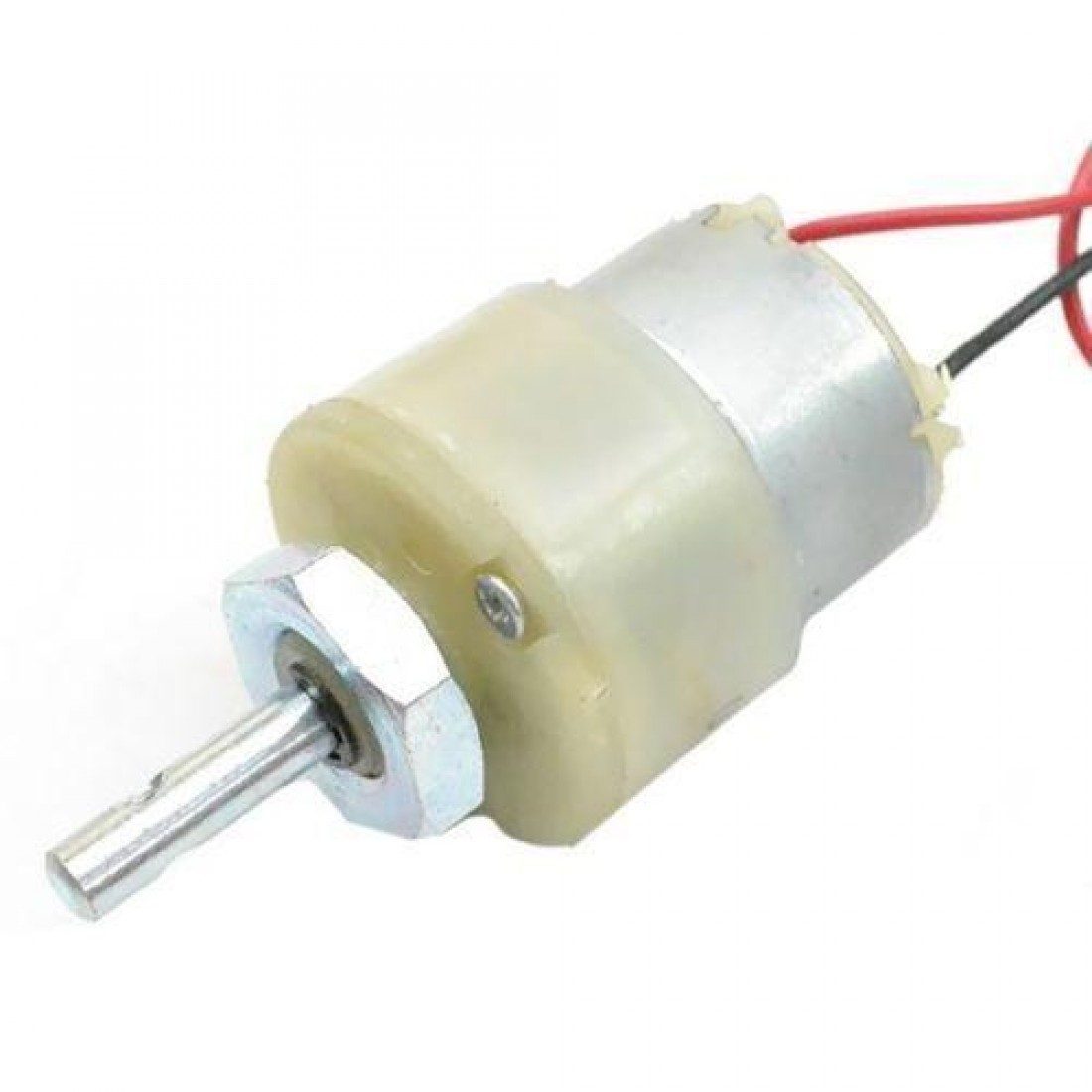

2000 RPM 12V DC Geared Motor – High Speed Center Shaft Motor

Center Shaft Geared Motors

2000 RPM 12V DC Geared Motor – High Speed Center Shaft Motor

star star star star star_half

85 rating

Just for you!

SKU: ANIL3013

MRP: Rs. 189.00

Rs. 157.50 (Incl. Tax)

Rs. 141.75 / pack of 1 = Rs. 141.75 per piece

Quantity

2000 RPM 12V DC Geared Motor – High Speed Center Shaft Motor specifically designed for robotic applications offer a wide variety of options. Key features easy to use and mount, standard size for all RPMs, a huge variety of RPMs available, long durability and very affordable considering the features. These center shaft DC motor 2000RPM open a wide choice for you in terms of Wheels and chasis.

Also, you don’t have to spend a lot of money to control motors with an Arduino or compatible board. The most popular L298N H-bridge module with onboard voltage regulator motor driver can be used with this 12V high speed DC gear motor that has a voltage of between 5 and 35V DC or you can choose the most precise motor diver module from the wide range available in our Motor divers category as per your specific requirements.

Features:

It comes with Good Quality Gears.
The metal gears have better wear and tear properties.
Gearbox is sealed and lubricated with lithium grease and requires no maintenance.
Although motor gives 2000 RPM at 12V, motor runs smoothly from 4V to 12V and gives the wide range of RPM, and torque.
The shaft has a hole for better coupling.

Specifications:

Gear Material: Metal
Rated RPM: 2000
Operating Voltage(VDC): 12
Rated Torque(kg-cm): 1
Stall Torque(Kg-Cm): 2.5
Load Current(A): 0.3
No-Load Current: 60mA
Gearbox Diameter (mm): 36
Motor Diameter(mm): 32
Motor Length(mm): 75
Shaft Diameter (mm): 6
Shaft Length (mm): 22
Weight (gm): 90

Package Includes :

1 x 2000 RPM 12V Center Shaft DC Geared Motor
