TOF10120 Laser Range Sensor Module 10-180cm Distance Sensor RS232 Interface UART I2C IIC Output 3-5V

TOF10120 Laser Range Sensor Module 10-180cm Distance Sensor  provides accurate and repeatable long range distance measurement for high-speed autofocus (AF). The innovative time-offlight technology allows performance independent of object reflectance.

TOF10120’s time-of-flight sensing technology is realized by Sharp’s original SPAD (Single Photon Avalanche Diodes ) using low-cost standard CMOS process. It enables accurate ranging result, higher immunity to ambient light and better robustness to cover-glass optical cross-talk by special optical package design.

Features:

• 940nm laser classified as class 1 under operation condition by IEC 60825-1:2014-3rd edition
• Long range absolute range measurement up to 1.8m
• within 5% accuracy at indoor
• Reported range is independent of the target reflectance
• Operates in high infrared ambient light levels
• Advanced optical cross-talk compensation
• High speed ranging MAX 30ms
• Standard solder reflow compatible
• No additional optics
• Single power supply
• Txd interface for device control and data transfer
• High-speed AF
• Continuous AF for video
• User detection for Personal Computers
• Laptops/Tablets
• Robotics (obstacle detection)
• White goods (hand detection in automatic)

Specifications:

• Ranging Range  100 – 1800mm
• VCC: 3 – 5V DC
• ICC_VDD: 35mA
• Topr  –  20 + 70 °C
• Tstg   –  40 + 85 °C
• Communication protocol
• Bits per Second:9600
• Data Bits : 8
• Parity : None
• Stop bits : 1
• Flow Control : None

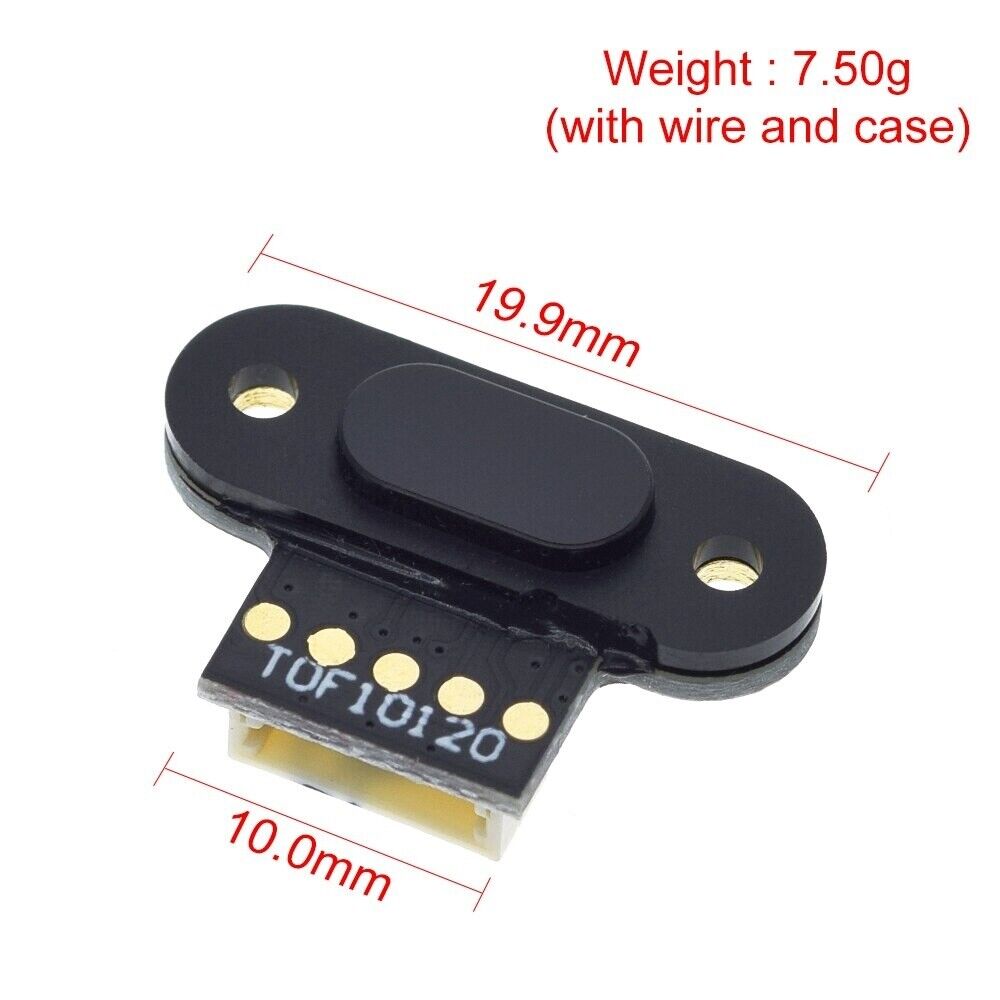

• Small ceramic package(20×13.2×2.0mm)

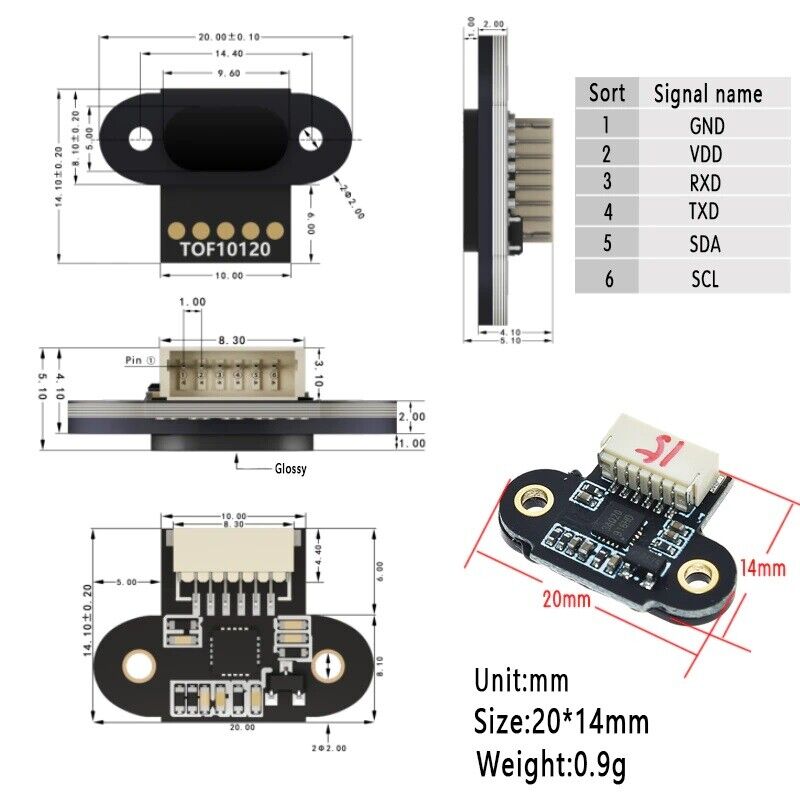

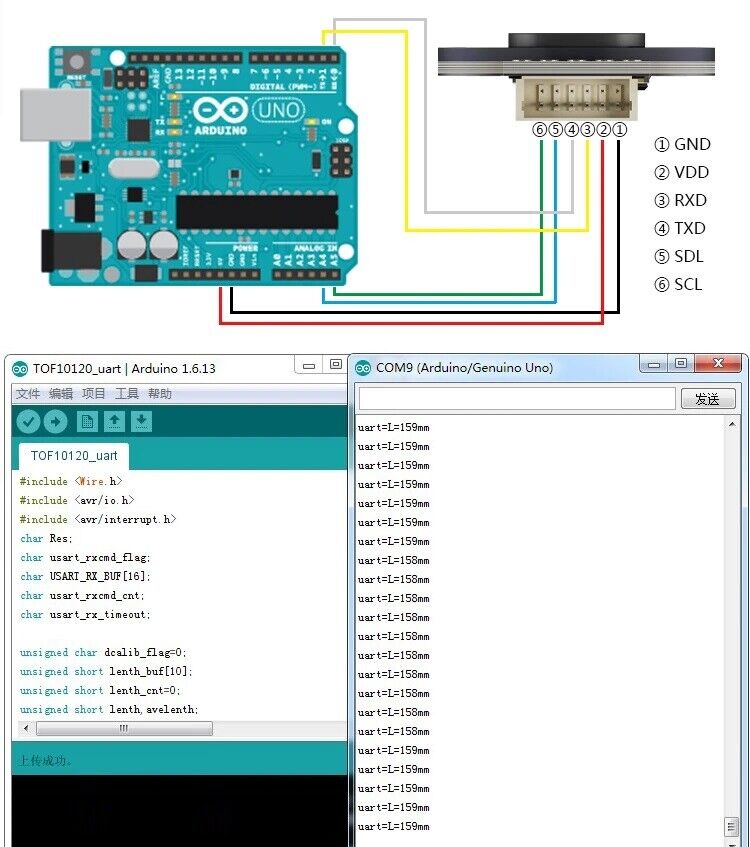

Pinouts:

• GND – Black
• VCC – Red
• RXD – Yellow
• TXD – White
• SDA – Blue
• SCL – Purple

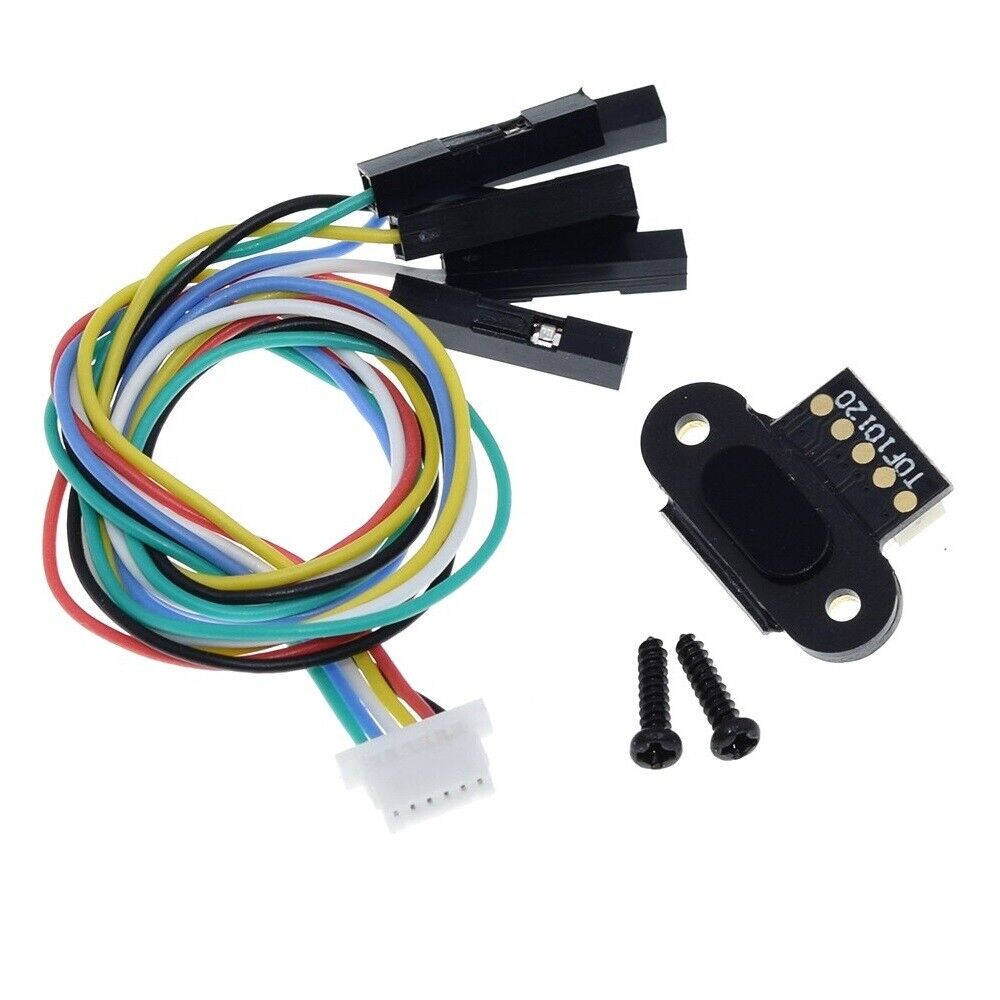

Package Includes:

• 1 x TOF10120 Laser Range Sensor Module 10-180cm Distance Sensor
