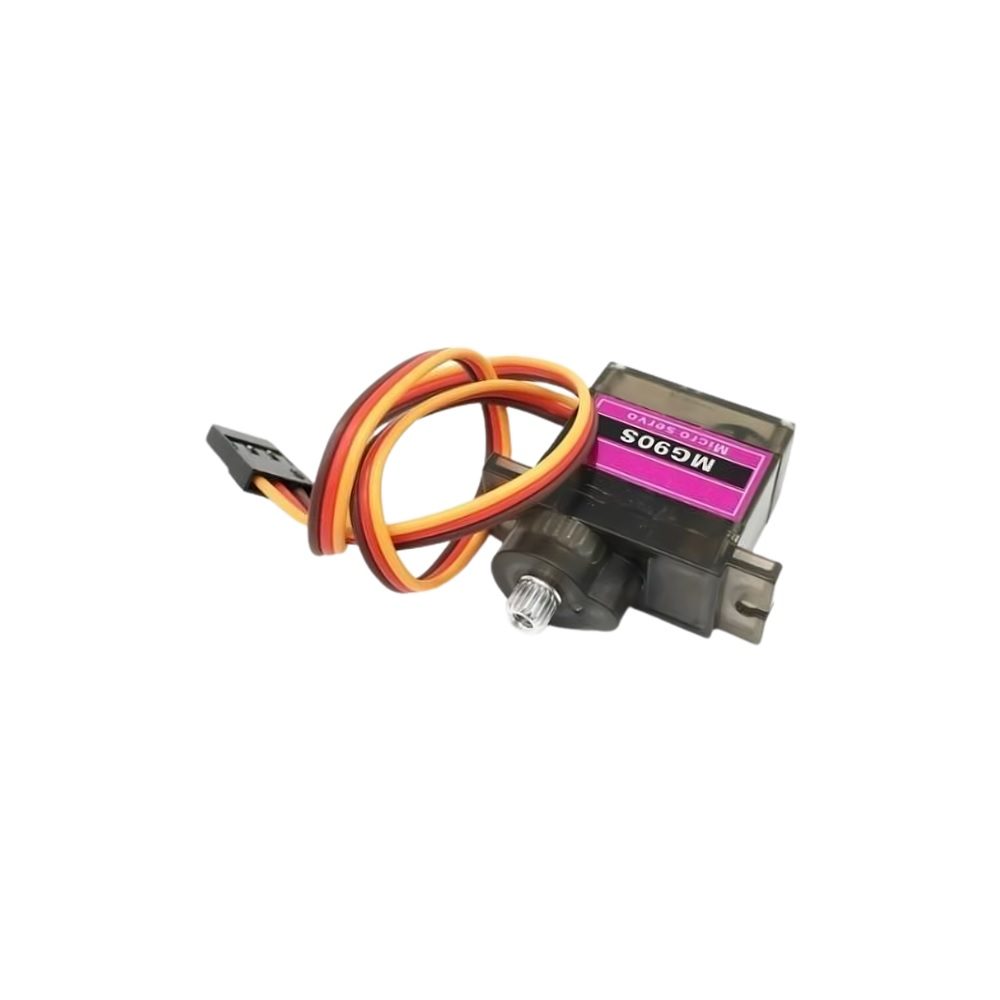

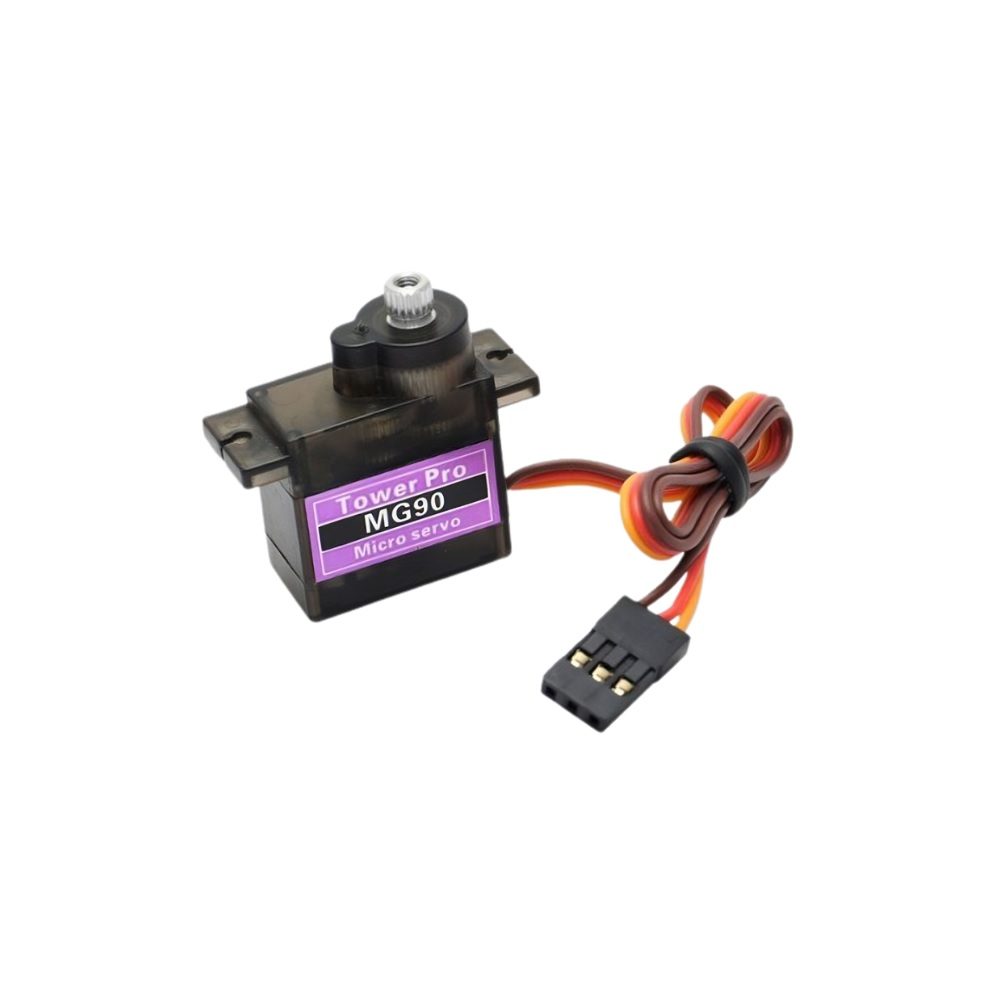

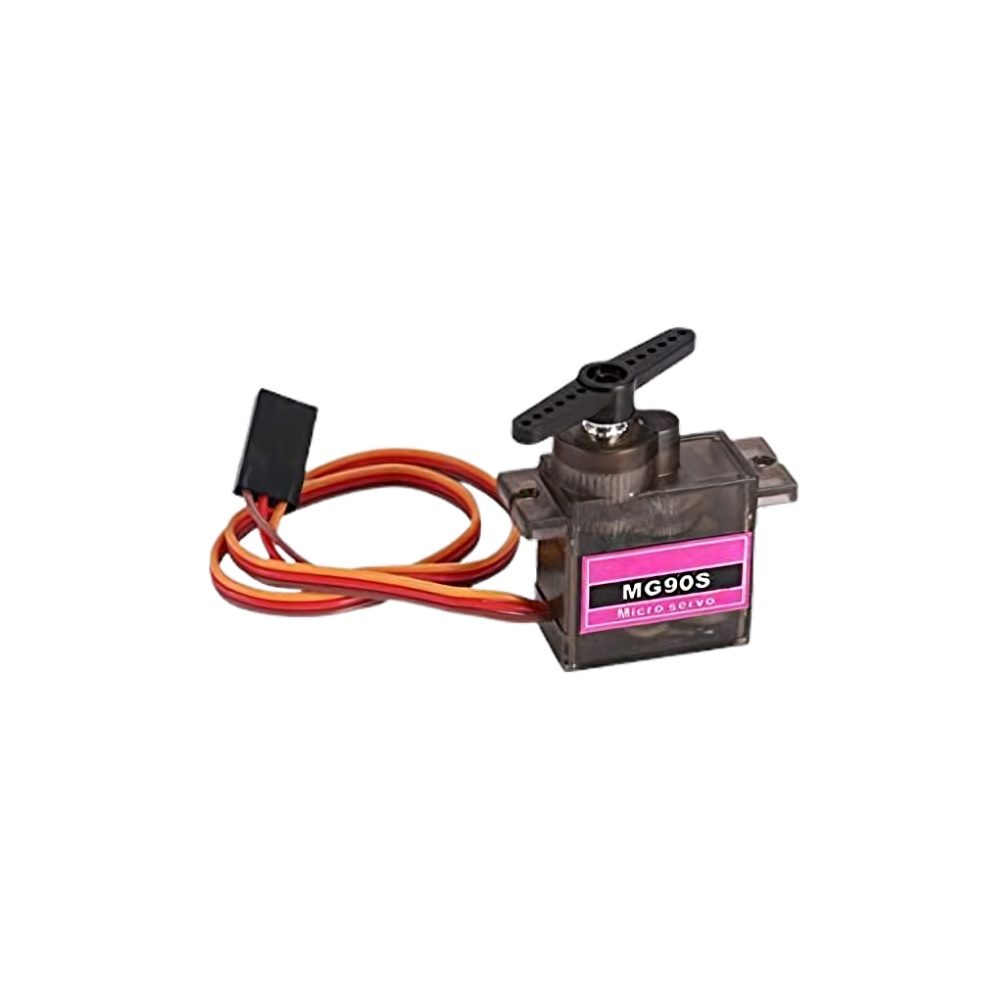

TowerPro MG90S Mini Digital Metal Gear Servo Motor 360 Degree

TowerPro MG90S Mini Digital Metal Gear Servo Motor 360 Degree is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.

The good optimized performance and reliability of our servos have made them the favourite choice of many RC hobbyists.

They are packed within a tight sturdy plastic case which makes them water and dust resistant which is a very useful feature in RC planes, Boats, and RC Monster Trucks etc. It equips 3-wire JR servo plug which is compatible with Futaba connectors too.

Features:

• High resolution
• Accurate positioning
• Fast control response
• Constant torque throughout the servo travel range
• Excellent holding power

Specifications:

• Model : MG90S
• Diameter of rotor (mm) : 4.8
• Weight(gm) : 13
• Operating Voltage (VDC) : 4.8 ~ 6.6
• Operating Speed @4.8V : 0.10sec/60
• Operating Speed @6.6V : 0.08sec/60
• Stall Torque @ 4.8V (Kg-Cm) : 1.8
• Stall Torque @6.6V (Kg-Cm) : 2.2
• Operating Temperature (C) : 0 to 55
• Dead Band Width ( s) : 1
• Rotational Degree : 360°
• Servo Plug : JR
• Cable Length (cm) : 25
• Length (mm) : 12.4
• Width (mm) : 22.8
• Height (mm) : 32.5

Wire Description:

• RED – Positive
• Brown – Negative
• Orange – Signal

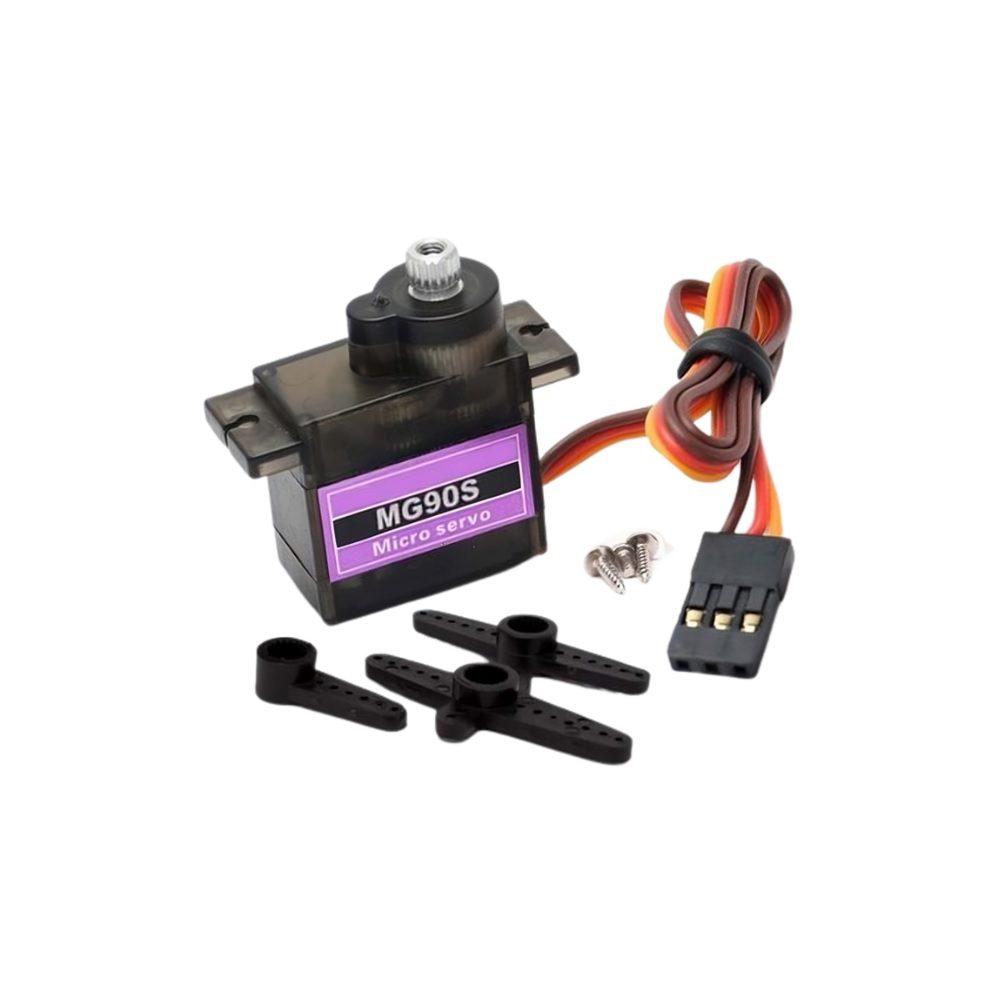

Package Includes:

• 1 x TowerPro MG90S Servo Motor (360° Rotation)
• 1 x Set of Horns : One Point, Two Point, Four Point
• 1 x Set of Screws
