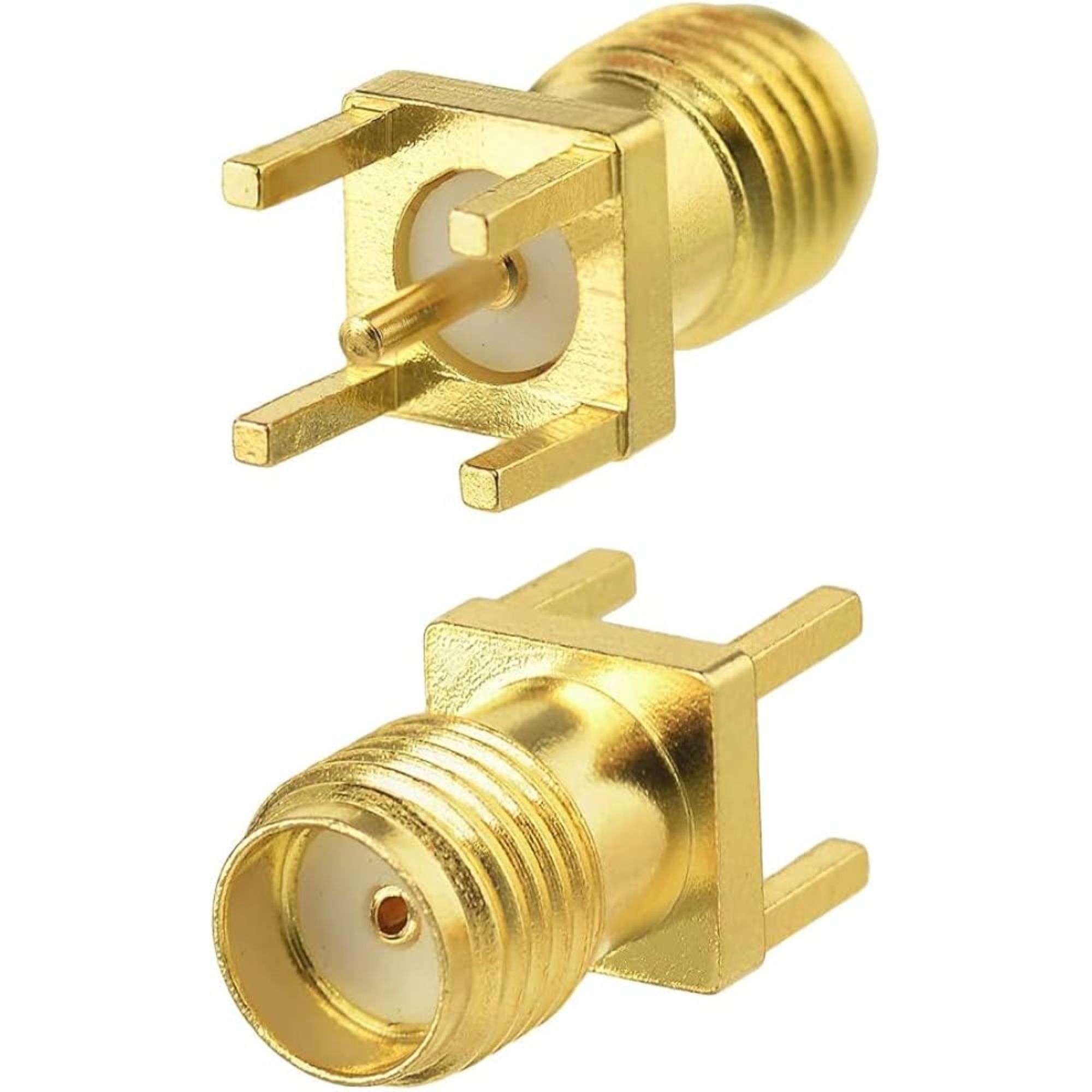

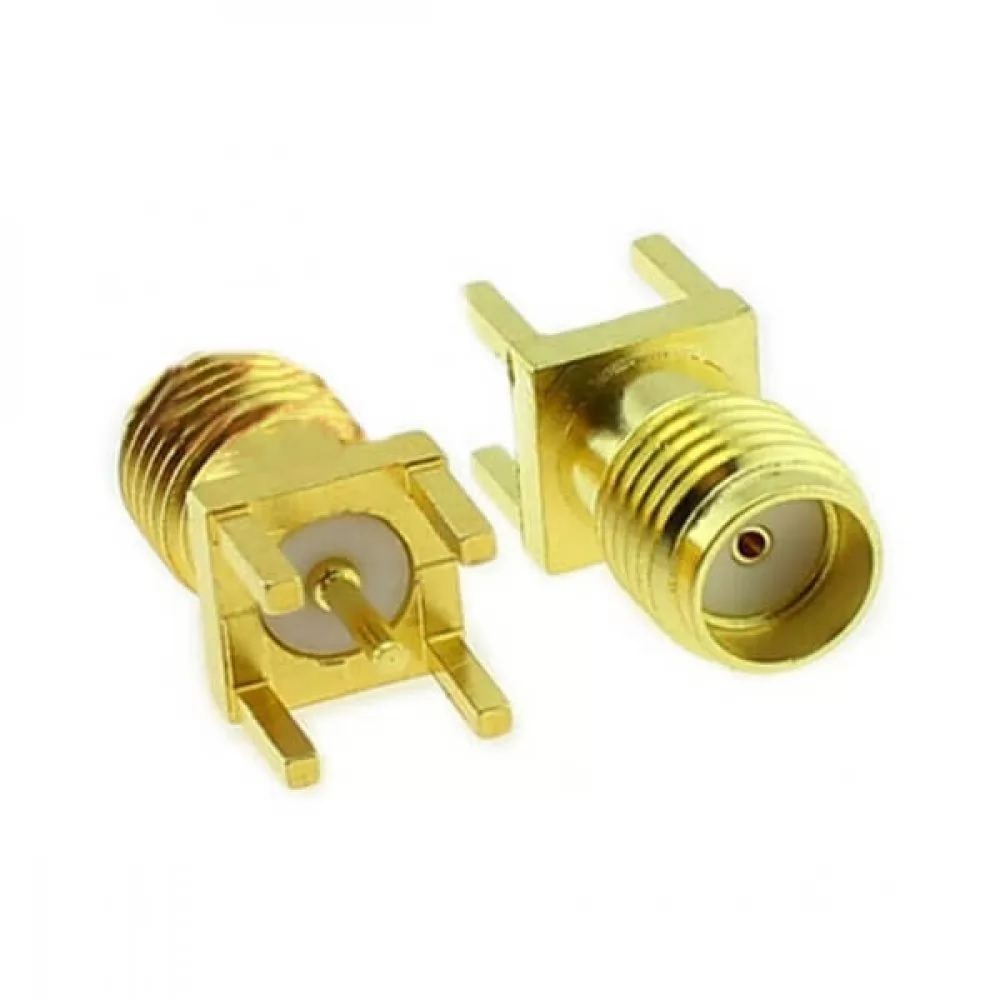

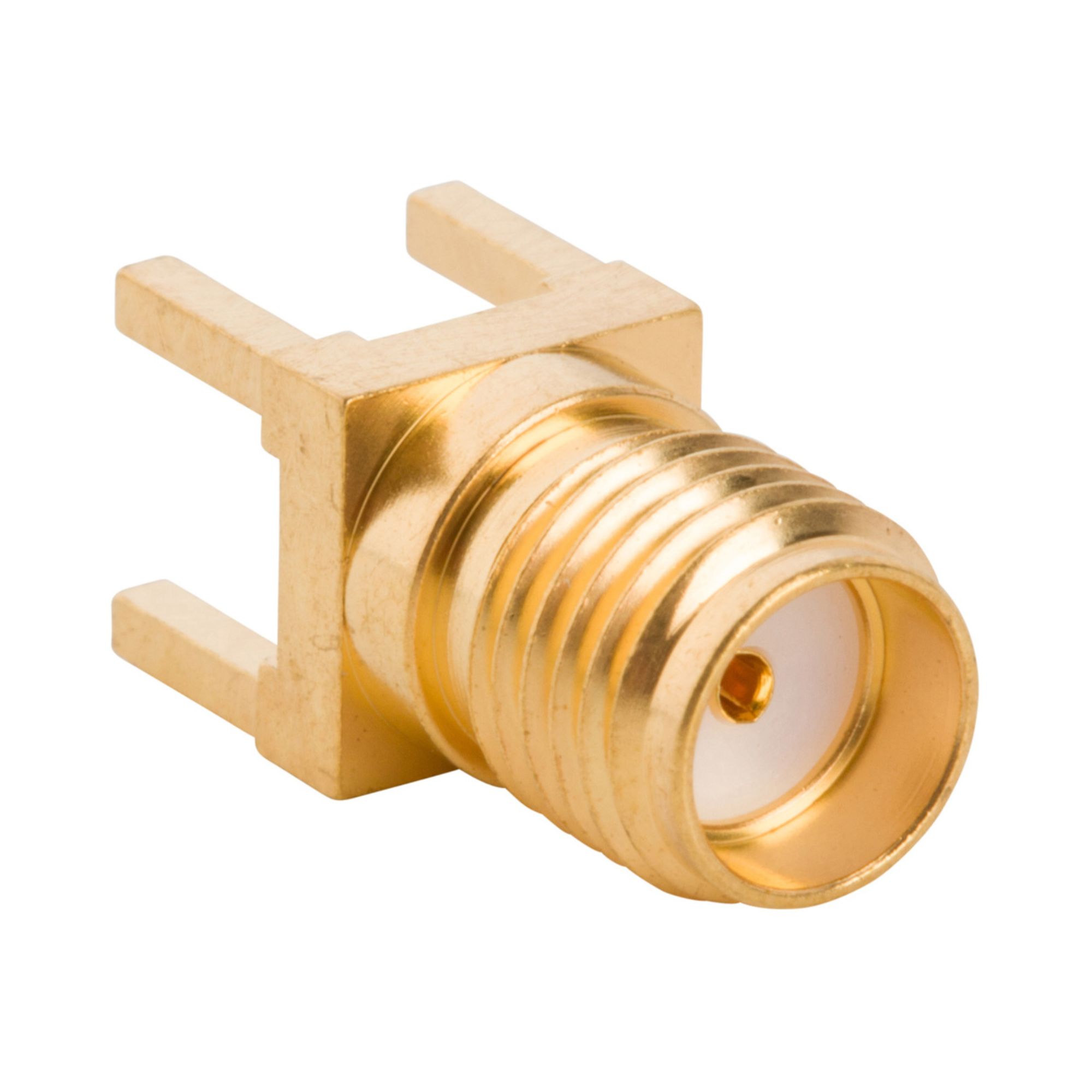

PCB Mount Female SMA Connector Vertical Mount – Straight

PCB Mount Female SMA Connector Vertical Mount – Straight is a connector perfect for prototyping with the GPS and Cellular devices that require an antenna connection. These connectors have a female signal pin and will correctly mate with the original SMA type antennas.

These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.

Features:

• SMA Connector, Female, Straight,50Ohm, Through Hole, PCB Mount, Copper, Gold Plating;
• Excellent electrical performance up to 18GHz with low reflection;
• Thread type coupling mechanism ensure small loss and high security in a compact design;

Electrical Characteristics:

• Impedance 50 ohm
• Frequency Range: 0~6 GHz
• VSWR: Straight type 1.3max / R/A type 1.5max
• Dielectric Withstanding Voltage: 1000 V rmsmin for RG142, RG405
• 750 V rms min. for RG316, RG402
• 500v rms min. for RG178
• Working Voltage: 500 V rms max. for RG142, RG405
• 375 V rms max. for RG316, RG402
• 170 V rms max. for RG178
• Center Contact Resistance 6.0 m (Milliohms max.)
• Outer Contact Resistance 2.0 m (Milliohms max.)
• Insulation Resistance 5 x 10 m (Megohms min.)

Mechanical Characteristics:

• Coupling: 1/4-36 thread
• Contact Retention: 15 in-lbs min.
• Coupling nut torque: 30 in-lbs. min.
• Durability(mating) 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics:

• Temperature Range: -55C ~ +155C
• Vibration: MIL-STD-202 Meth.204
• Corrosion resistance: MIL-STD-202 Meth. 101

Applications:

• Aerospace and Defense: Hand-held field Device and Instrumentation
• Medical: Instrumentation
• Commercial Vehicle: Bluetooth and GPS
• Telecommunications: Wireless Base Stations, Cellular Mobile System
• Data/Communications: Wifi, WiMAX
• Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Package Includes:

• 1 x PCB Mount Female SMA Connector Vertical Mount – Straight
